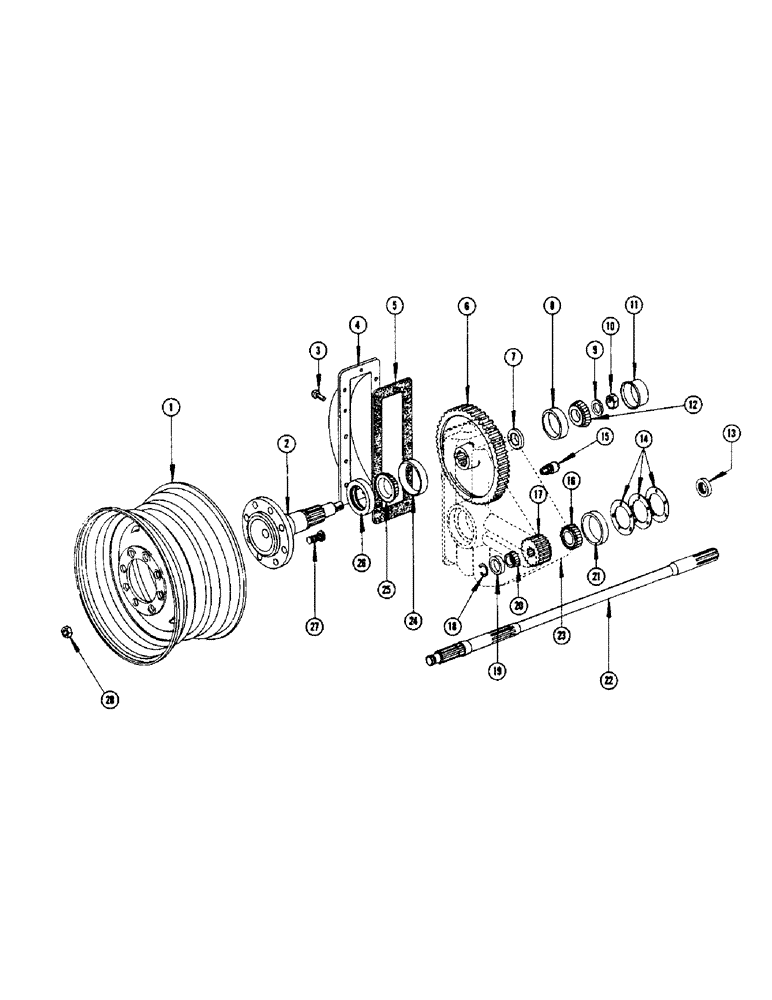

Запчасти Case IH 960 (299A) - FINAL DROP BOX HOUSING - GRAIN COMBINE, NO. 8358001 AND AFTER (25) - FRONT AXLE SYSTEM

1

F17725

WHEEL - rim and disc (For 16.9/14 x 26 or 14.9/13 x 26 tires)

2шт.

2

F3415

SHAFT AND HUB - axle, drive wheel

2шт.

3

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- (3/8" x 3/4" N.C. hex.) For ref. 4 pan

24шт.

92-6

LOCK WASHER,3/8"

24шт.

4

F19474

PAN - drip box housing

2шт.

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - 3/4" pipe

2шт.

5

F18266

GASKET - drop box housing pan

2шт.

6

F19515

GEAR - final drive (82T)

2шт.

7

F19603

SPACER - final drive gear

2шт.

8

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner bearing, axle shaft

2шт.

9

F19658

WASHER - final drive shaft nut

2шт.

10

F19657

NUT

- final drive shaft

2шт.

132-75

HARDWARE,5/32" x 1 3/4"

PIN - cotter 1/8" x 1-3/4"

2шт.

11

F23266

CAP - inner bearing

2шт.

12

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - inner bearing, axle shaft "replaces A29603"

2шт.

13

F22582

OIL SEAL

- inner, axle shaft

2шт.

14

F18263

SHIM - axle shaft bearing (.003")

2шт.

F18264

SHIM - axle shaft bearing (.005")

2шт.

F18265

SHIM - axle shaft bearing (.010")

2шт.

15

L30587

X

BREATHER - final drive housing

2шт.

16

O818CS

CONE

- inner bearing, axle shaft

1шт.

17

F19514

PINION - final drive (15T)

2шт.

18

F18197

SNAP RING

SNAP-RING - axle shaft bearing, outer

2шт.

19

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - outer bearing, axle shaft

2шт.

20

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - outer bearing, axle shaft

2шт.

21

F62007

CUP

- inner bearing, axle shaft

1шт.

F23265

O-RING

"O" RING

1шт.

22

F19620

SHAFT - axle R.H. drive

1шт.

F19621

SHAFT - axle L.H. drive

1шт.

23

F1919

HOUSING - final drive R.H.

1шт.

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - 3/4" pipe

1шт.

F1918

HOUSING - final drive, L.H.

1шт.

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - 3/4" pipe

1шт.

24

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - outer bearing, axle shaft

2шт.

25

G15207

ROLLER BEARING

CONE - outer bearing, axle shaft

2шт.

26

F22670

SEAL

OIL SEAL - final drive shaft, outer

2шт.

27

F18184

BOLT - wheel (8 for each wheel)

16шт.

28

F62206

NUT

- wheel, for ref. 27 bolt

16шт.
