Запчасти Case IH 960 (328) - GEAR SHIFT LINKAGE (21) - TRANSMISSION

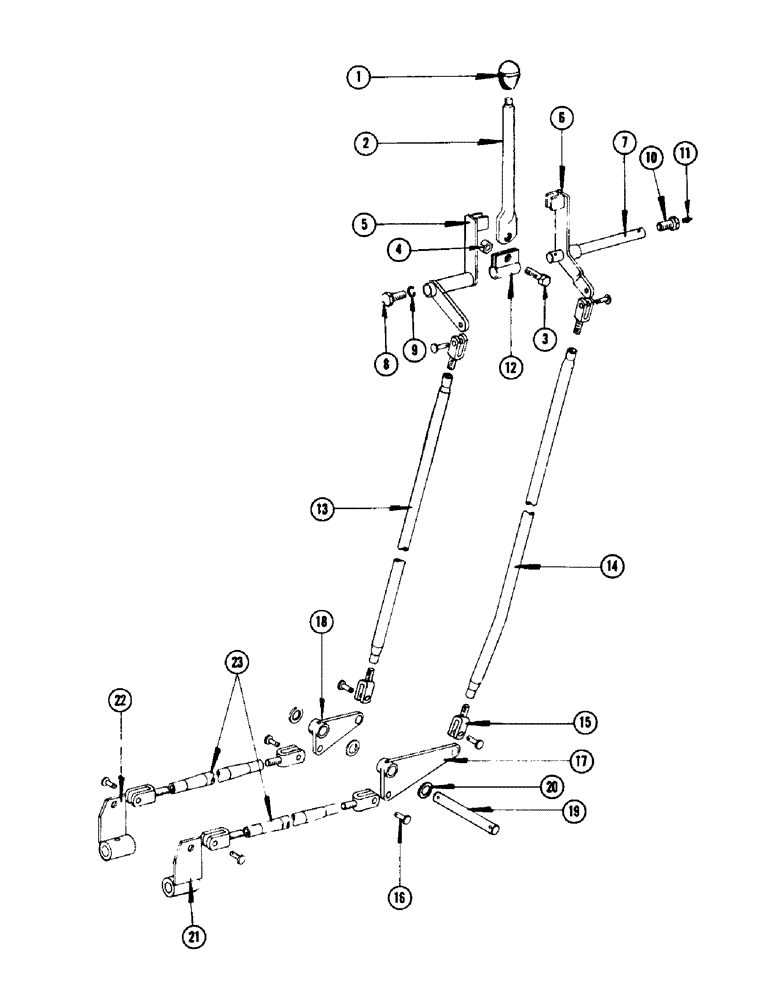

Схема запчастей Case IH 960 - (328) - GEAR SHIFT LINKAGE (21) - TRANSMISSION
1
3
10
2
15
6
14
17
9
8
13
5
23
4
12
11
22
16
20
7
19
21
18

Артикул

Название

Примечание

Количество

1

F5301

KNOB - gear shift lever

1шт.

2

F21574

LEVER - gear shift

1шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

4

131-6

LOCK NUT,3/8"-16, GC

NUT - 3/8" elastic stop

1шт.

5

F1467

ARM - R.H. selector

1шт.

6

F1468

ARM - L.H. selector

1шт.

95-6

WASHER,3/8"

- flat 3/8"

2шт.

7

F17328

ROCKSHAFT - gear shift

1шт.

195-41

WASHER,5/8"

- flat 5/8"

2шт.

8

14-712

BOLT (MACHINE),Hex, 7/16" - 20 x 3/4", Gr 5, Full Thd

BOLT - 7/16" x 3/4" N.F. hex.

1шт.

9

92-7

LOCK WASHER,7/16"

1шт.

10

F17899

BOLT

1шт.

92-7

LOCK WASHER,7/16"

1шт.

11

219-17

LUBE NIPPLE,3/16" NPTF

NIPPLE, LUBE, 3/16" x .55" lg, Drive

1шт.

12

F8171

PIVOT - shift lever

1шт.

195-41

WASHER,5/8"

- flat 5/8"

1шт.

13

F17329

SCREW

ROD - shift, upper 2nd and 3rd

1шт.

14

F17415

SCREW

ROD - shift, upper 1st and reverse

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

8шт.

15

VR2694

CLEVIS

8шт.

16

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

8шт.

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

8шт.

17

F1444

BELLCRANK - 1st and reverse

1шт.

18

F1443

BELLCRANK - 2nd and 3rd

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

19

F16909

SHAFT - pivot, bellcrank

1шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

20

B18080

WASHER

- bellcrank pivot

1шт.

21

F81300

BRACKET - front shift rail

1шт.

F82727

BRACKET - front and rear shift rail (Special combine)

2шт.

135-359

GROOVED PIN,1/4" x 1 1/2", Type F

PIN - groove 1/4" x 1-1/2" type 3

2шт.

22

F81738

BRACKET - rear shift rail

1шт.

135-359

GROOVED PIN,1/4" x 1 1/2", Type F

PIN - groove 1/4" x 1-1/2" type 3

1шт.

23

F16911

ROD - shift, lower (Grain combine)

2шт.

F20560

ROD - shift, lower (Special combines)

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

Выбрано товаров: 36
