Запчасти Case IH 960 (316[1]) - DIFFERENTIAL BRAKE ASSEMBLY 960 SPECIAL COMBINE (21) - TRANSMISSION

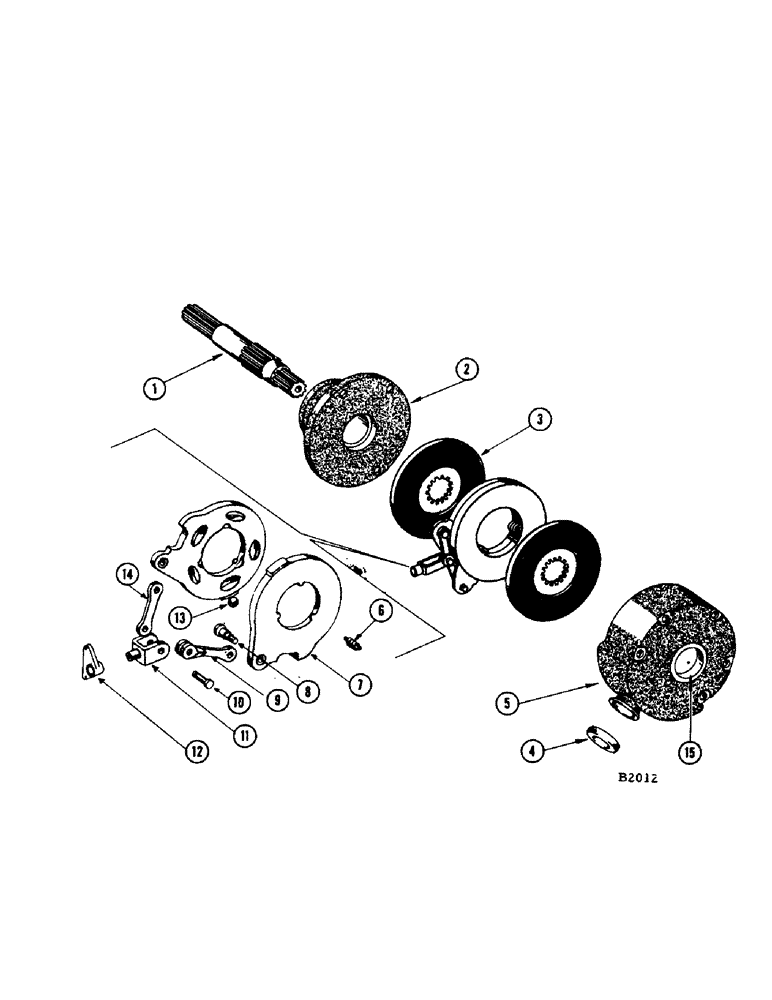

Схема запчастей Case IH 960 - (316[1]) - DIFFERENTIAL BRAKE ASSEMBLY 960 SPECIAL COMBINE (21) - TRANSMISSION
1
9
4
15
10
2
5
14
6
7
3
11
8
13
12

Артикул

Название

Примечание

Количество

1

F19607

SHAFT - final drive pinion

2шт.

2

F1616

ADAPTOR - brake housing plate, R.H.

1шт.

BOLT - 7/16" x 1-1/4" N.C. hex. (113-301) L.W. (92-7)

5шт.

F1615

ADAPTOR - brake housing plate, L.H.

1шт.

BOLT - 7/16" x 1-1/4" N.C. hex. (113-301) L.W. (92-7)

5шт.

3

F19684

DISC

- middle, with linings (Lining not furnished separately)

4шт.

4

F9792

BOOT - dust, brake housing

2шт.

5

F1618

HOUSING - R.H. brake

1шт.

F1619

HOUSING - L.H. brake

1шт.

BOLT - 7/16" x 3-3/4" N.F. hex. (114-309) Nut (129-530) and L.W. (92-7)

10шт.

6

A30910

SPRING

- actuating disc

6шт.

7

F19681

DISC - brake actuating

4шт.

8

A30898

STEP BOLT

STUD - disc

4шт.

NUT - 5/16" N.F. hex. jam (25-155)

4шт.

9

A30912

LINK

- actuating disc

2шт.

10

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - yoke, brake

2шт.

PIN - cotter 3/32" x 3/4" (132-26)

2шт.

11

F19665

YOKE - brake, connects to ref. 12 bellcrank

2шт.

12

F1594

BELLCRANK - brake

1шт.

13

211-19

BALL,7/8" Dia

- (.) For ref. 7 disc 7/8" Dia

10шт.

14

A27688

VALVE SPRING

LINK - actuating disc

2шт.

15

F19666

OIL SEAL

2шт.

Выбрано товаров: 22
