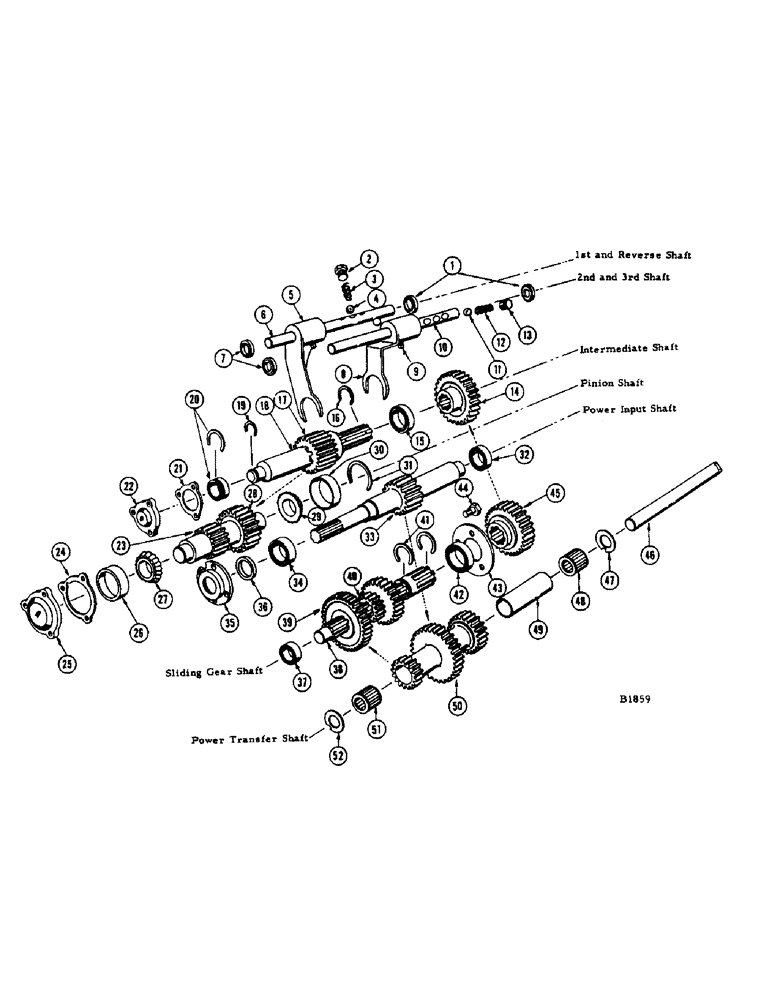

Запчасти Case IH 960 (312) - TRANSMISSION - 960 SPECIAL, SHIFTER FORKS AND SHAFTS (21) - TRANSMISSION

1

F9742

OIL SEAL

OIL SEAL - shifter shafts

2шт.

2

F9736

SCREW - 1st and reverse shifter shaft lock ball spring

1шт.

3

F9793

SPRING - 1st and reverse shifter shaft lock ball

1шт.

4

211-12

BALL,7/16 Dia

- (7/16" dia.) Gear shift lock, 1st and reverse

2шт.

5

F3092

FORK - shaft, lst and reverse

1шт.

6

F9789

SHAFT - shifter, 1st and reverse

1шт.

7

F9742

OIL SEAL

OIL SEAL - shifter shafts

2шт.

8

F3093

FORK

- shift, 2nd and 3rd

1шт.

9

F9739

SCREW - shift fork lock

2шт.

10

F9788

SHAFT - shifter, 2nd and 3rd speed

1шт.

11

211-12

BALL,7/16 Dia

- (7/16" dia.) Gear shift lock, 2nd and 3rd

2шт.

12

F9793

SPRING - 2nd and 3rd shifter shaft lock ball

1шт.

13

F9736

SCREW - 2nd and 3rd shifter shaft lock ball spring

1шт.

14

F3119

GEAR - (39T) Mating shaft F9798 (Rice-Regular), intermediate shaft

1шт.

F3125

GEAR - (46T) Mating shaft F9798 (Rice-Special, for slower speed), intermediate shaft

1шт.

F3105

GEAR - (35T) Mating shaft F9798 (Soybean), intermediate shaft

1шт.

15

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - R.H., intermediate shaft

1шт.

16

F9752

RING, SNAP

SNAP RING - for F3105 or F3125 gear, intermediate shaft

1шт.

17

F3099

GEAR - (19T) 2nd intermediate drive, shaft

1шт.

18

F9798

SHAFT - intermediate

1шт.

19

A19904

RING, SNAP

SNAP RING - for ref. 20 bearing, intermediate shaft

1шт.

20

F9747

BEARING - L.H., intermediate shaft

1шт.

21

F9783

GASKET - for ref. 20 bearing cap, intermediate shaft

1шт.

22

F1270

CAP - for intermediate shaft bearing, intermediate shaft

1шт.

BOLT - 3/8" x 1" N.C. hex. grade 7 or 8 (113-215) and L.W. (92-6), intermediate shaft

3шт.

23

F3095

SHAFT - with (16T) Pinion, differential drive, differential pinion shaft

1шт.

24

F9780

SHIM - (.008" thick) Differential pinion bearing cap, differential pinion shaft

2шт.

F9781

SHIM - (.005" thick) Differential pinion bearing cap, differential pinion shaft

3шт.

F9782

SHIM - (.010" thick) Differential pinion bearing cap, differential pinion shaft

2шт.

25

F1271

CAP - differential pinion bearing, differential pinion shaft

1шт.

BOLT - 3/8" x 1" N.C. hex. grade 7 or 8 (113-215) and L.W. (92-6), differential pinion shaft

3шт.

26

G57451

BEARING, CUP

CUP - L.H., differential drive pinion, differential pinion shaft

1шт.

27

G57452

ROLLER BEARING

CONE - L.H., differential drive pinion, differential pinion shaft

1шт.

28

F3100

GEAR - (29T) Differential intermediate, differential pinion shaft

1шт.

29

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - R.H., differential intermediate gear, differential pinion shaft

1шт.

30

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - R.H., differential intermediate gear, differential pinion shaft

1шт.

31

F9756

SNAP RING - for ref. 30 cup, differential pinion shaft

1шт.

32

O7285A

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

BEARING - R.H., input drive shaft, power input driven shaft

1шт.

33

F3117

SHAFT - input drive, with 19T gear, power input driven shaft

1шт.

34

F21220

BEARING - L.H., input drive shaft, power input driven shaft

1шт.

35

F77789

CAP - input drive bearing, L.H., power input driven shaft

1шт.

BOLT - 3/8" x 1" N.C. hex. grade 7 or 8 (113-215) and L.W. (92-6), power input driven shaft

4шт.

36

F9743

OIL SEAL, power input driven shaft

1шт.

37

O7285A

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

BEARING - L.H., sliding gear shaft

1шт.

38

F9799

SHAFT - sliding gear

1шт.

39

F3098

GEAR - (41T) Low and reverse, sliding gear shaft

1шт.

40

F3103

GEAR - (29T - 17T) 2nd and 3rd, sliding gear shaft

1шт.

41

F9753

SNAP RING - for F3104 or F3118 gear and F21220 bearing, sliding gear shaft

2шт.

F19477

SNAP RING - for F3124 gear and F21220 bearing, sliding gear shaft

2шт.

42

R15362

BEARING - R.H. sliding gear shaft

1шт.

43

F9794

CAP - for ref. 42 bearing, sliding gear shaft

1шт.

44

A30342

SPECIAL BOLT

CAPSCREW - bearing cap, sliding gear shaft

3шт.

45

F3118

GEAR - (24T) Mating shaft F9799 (Rice-Regular), sliding gear shaft

1шт.

F3124

GEAR - (17T) Mating shaft F9799 (Rice-Special, for slower speed), sliding gear shaft

1шт.

F3104

GEAR - (28T) Mating shaft F9799 (Soybean), sliding gear shaft

1шт.

46

F9797

SHAFT - cluster, power transfer shaft

1шт.

47

F9749

WASHER - for ref. 48 bearing, power transfer shaft

1шт.

48

F9735

BEARING, ROLLER

BEARING - R.H., cluster gear shaft, power transfer shaft

1шт.

49

F9760

SPACER - for ref. 50 cluster gear, power transfer shaft

1шт.

50

F3102

GEAR - (17T-41T-28T) Cluster, power transfer shaft

1шт.

51

F9735

BEARING, ROLLER

BEARING - L.H., cluster gear shaft, power transfer shaft

1шт.

52

F9749

WASHER - ref. 51 bearing, power transfer shaft

1шт.
