Запчасти Case IH 960 (300) - TRANSMISSION CASE - GRAIN COMBINE (21) - TRANSMISSION

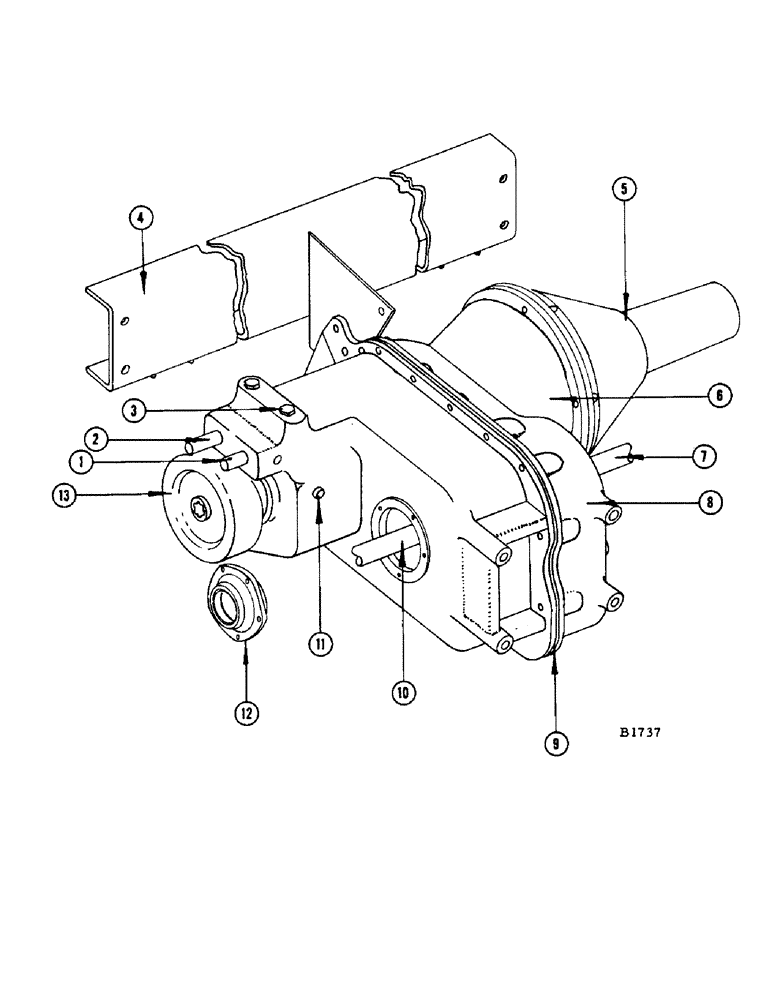

Схема запчастей Case IH 960 - (300) - TRANSMISSION CASE - GRAIN COMBINE (21) - TRANSMISSION
10
7
13
11
5
1
12
3
6
2
9
8
4

Артикул

Название

Примечание

Количество

1

F20456

SHAFT - shifter rail, 2nd and 3rd

1шт.

2

F20460

SHAFT - shifter rail, 1st and reverse

1шт.

3

F18122

SCREW - plunger, gear shift lock ball

2шт.

NLS

NO LONGER SERVICED

2шт.

4

F84262

CHANNEL - transmission support

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516)

4шт.

BOLT - 3/8" x 1" N.F. hex. bolt (14-616) Nut (25-116)

4шт.

LOCKWASHER - 3/8" (92-6)

4шт.

5

F1497

COVER - clutch housing

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex. (114-212) L.W. (92-6)

8шт.

6

F1669

HOUSING - clutch

1шт.

BOLT - 1/2" x 1-3/8" N.C. hex. grade 7 or 8 (113-416)

9шт.

LOCKWASHER - 1/2" (92-8)

9шт.

7

F19621

SHAFT - axle, L.H. drive (Turning brake)

1шт.

F21218

SHAFT - axle, L.H. drive (Parking brake)

1шт.

8

F82856

CASE - transmission (Includes both halves) Turning brakes

1шт.

F82218

CASE - transmission (Includes both halves) Parking brakes

1шт.

9

F18193

GASKET - transmission case cover

1шт.

10

F19620

SHAFT - axle, R.H. drive (Turning brake)

1шт.

F21217

SHAFT - axle, R.H. drive (Parking brake)

1шт.

11

F18144

PLUG - shift rail guide

1шт.

12

F1560

CAGE - bearing, differential shaft, R.H.

1шт.

BOLT - 3/8" x 1-1/8" N.C. hex. (113-220) L.W. (92-6)

5шт.

13

F1665

DRUM - brake (Parking brake only)

1шт.

Выбрано товаров: 24
