Запчасти Case IH 960 (294) - TRANSMISSION - GRAIN COMBINE, SHIFTER FORKS AND SHAFTS (21) - TRANSMISSION

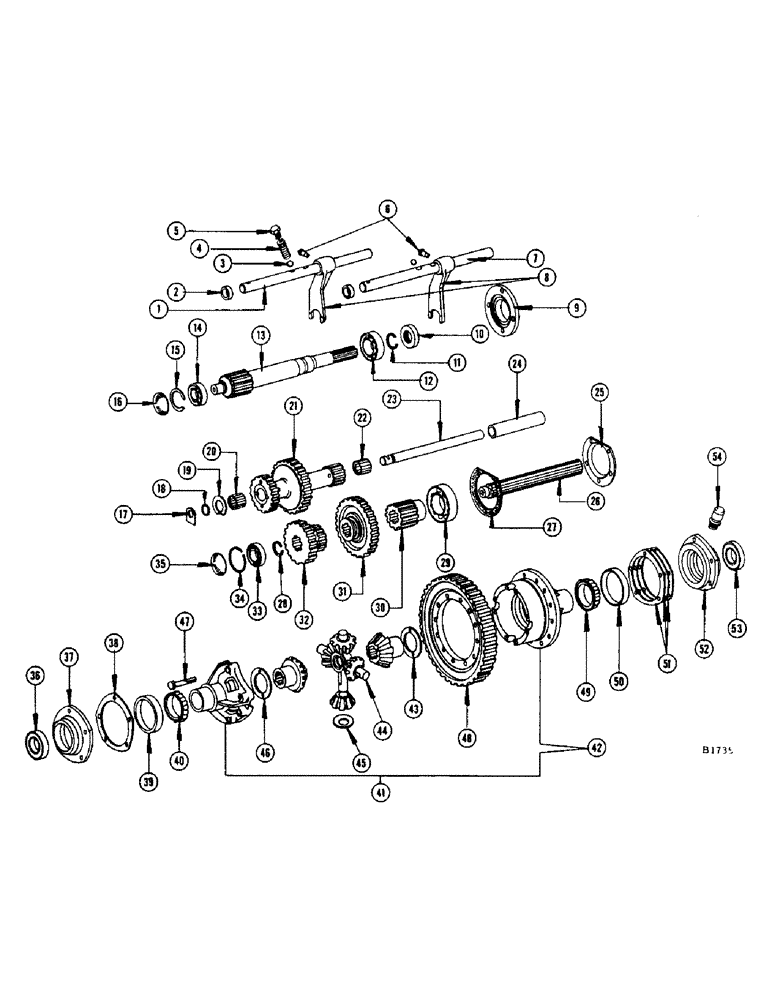

Схема запчастей Case IH 960 - (294) - TRANSMISSION - GRAIN COMBINE, SHIFTER FORKS AND SHAFTS (21) - TRANSMISSION
21
33
30
32
29
47
43
28
42
45
7
5
34
24
2
8
51
39
16
40
11
44
13
18
46
4
35
31
41
54
53
48
26
20
49
15
25
10
1
14
37
23
9
27
3
36
17
52
8
22
19
12
38
50

Артикул

Название

Примечание

Количество

1

F20460

SHAFT - shifter rail, 1st and reverse

1шт.

2

F9742

OIL SEAL

OIL SEAL - shifter shafts

2шт.

3

211-12

BALL,7/16 Dia

- (7/16" steel) For ref. 4 spring

4шт.

4

F18159

SPRING - gear shift lock ball

2шт.

5

F18122

SCREW - plunger, gear shift lock ball

2шт.

NLS

NO LONGER SERVICED

2шт.

6

F20458

X

PIN - lock, shift fork

2шт.

7

F20456

SHAFT - shifter rail, 2nd and 3rd

1шт.

8

F20457

FORK - shift, 1st, 2nd, 3rd and reverse

2шт.

9

F1597

CAP - bearing, input shaft, L.H. end of case, power input driven shafts

1шт.

BOLT - 3/8" x 1-1/4" N.C. hex. (113-220) L.W. (92-6), power input driven shafts

4шт.

10

F18133

OIL SEAL

- input shaft, L.H. end of case, power input driven shafts

1шт.

11

F18146

SNAP RING - for ref. 12 bearing, power input driven shafts

1шт.

12

39337

BEARING - input shaft, L.H. end (Includes snap ring), power input driven shafts

1шт.

13

F20450

SHAFT - input, 15T gear (Replaces F18170 when stock exh.), power input driven shafts

1шт.

F18170

SHAFT - input driven, with 15T gear (See F20450), power input driven shafts

1шт.

14

F18138

BEARING

- input shaft, R.H. end, power input driven shafts

1шт.

15

F18151

SNAP RING - for ref. 14 bearing, power input driven shafts

1шт.

16

F18145

PLUG

- expansion, R.H. end of case, power input driven shafts

1шт.

17

F18134

NUT - lock, for countershaft, power transfer and sliding gear shaft

1шт.

BOLT - 3/8" x 7/8" N.C. hex. grade 7 or 8 (113-227) and L.W. (92-6), power transfer and sliding gear shaft

1шт.

18

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

"O" RING - for countershaft, power transfer and sliding gear shaft

1шт.

19

F18141

WASHER - cluster gear, power transfer and sliding gear shaft

2шт.

20

F18140

BEARING - for cluster gear, R.H., power transfer and sliding gear shaft

1шт.

21

F18166

GEAR - cluster (26T, 37T and 15T), power transfer and sliding gear shaft

1шт.

22

F18140

BEARING - for cluster gear, L.H., power transfer and sliding gear shaft

1шт.

23

F18163

AIR CLEANER

COUNTERSHAFT - power transfer and sliding gear shaft

1шт.

24

F18143

SPACER

- cluster gear, power transfer and sliding gear shaft

1шт.

25

F18162

CAP - bearing, L.H. end, power transfer and sliding gear shaft

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Power transfer and sliding gear shaft Hex, 3/8"-16 x 3/4", G5, Full Thd

5шт.

F18408

WASHER

- Dyna seal, power transfer and sliding gear shaft

5шт.

26

F20453

SHAFT - sliding gear (Turning brakes), power transfer and sliding gear shaft

1шт.

F20461

SHAFT - sliding gear (Parking brakes), power transfer and sliding gear shaft

1шт.

27

F18194

GASKET - for ref. 25 cap, power transfer and sliding gear shaft

1шт.

28

F19477

SNAP RING - for ref. 33 bearing, power transfer and sliding gear shaft

1шт.

29

F21219

BEARING

- sliding gear shaft, L.H. end, power transfer and sliding gear shaft

1шт.

30

F18165

PINION - (15T) Differential ring gear, power transfer and sliding gear shaft

1шт.

31

F20455

GEAR - (42T) Sliding, 1st and reverse speed, power transfer and sliding gear shaft

1шт.

32

F18168

GEAR - (31T and 20T) Sliding, 2nd and 3rd speed, power transfer and sliding gear shaft

1шт.

33

F21220

BEARING - sliding gear shaft, power transfer

1шт.

34

F19475

SNAP RING - for ref. 33 bearing (Turning brakes), power transfer and sliding gear shaft

1шт.

35

F19476

PLUG - expansion (Turning brakes), power transfer and sliding gear shaft

1шт.

36

F18131

OIL SEAL

- for ref. 37 cage, power transfer and sliding gear shaft

1шт.

37

F1560

CAGE - bearing, R.H., power transfer and sliding gear shaft

1шт.

BOLT - 3/8" x 1-1/8" N.C. hex. (113-220) L.W. (92-6), power transfer and sliding gear shaft

5шт.

38

F18191

GASKET

- for ref. 37 bearing cage, power transfer and sliding gear shaft

1шт.

39

O2125CS

CUP

- bearing, R.H. end of differential shaft, power transfer and sliding gear shaft

1шт.

40

O2102CS

CONE

- bearing, R.H. end of differential shaft, power transfer and sliding gear shaft

1шт.

41

F82205

DIFFERENTIAL - complete, less ring gear, power transfer and sliding gear shaft

1шт.

42

F82206

CASE - differential (Includes both halves), power trnasfer and sliding gear shaft

1шт.

43

F18129

WASHER - thrust, R.H. of side gear, power transfer and sliding gear shaft

1шт.

44

F18160

SPIDER -differential, power transfer and sliding gear shaft

1шт.

45

F18130

WASHER - thrust, differential pinion, power transfer and sliding gear shaft

4шт.

46

F18129

WASHER - thrust, L.H. side of gear, power transfer and sliding gear shaft

1шт.

47

F18125

BOLT - differential case halves, power transfer and sliding gear shaft

8шт.

LOCKWIRE - (291-627), power transfer and sliding gear shaft

1шт.

48

F18169

RING GEAR - (71T) Differential, power transfer and sliding gear shaft

1шт.

RIVET - 3/8" x 1-3/8" pan hd. (151-253), power transfer and sliding gear shaft

12шт.

49

O2102CS

CONE

- bearing, L.H. end of differential shaft, power transfer and sliding gear shaft

1шт.

50

O2125CS

CUP

- bearing, L.H. end of differential shaft, power transfer and sliding gear shaft

1шт.

51

F18187

SHIM - (.003") For ref. 52 bearing cage, power transfer and sliding gear shaft

1шт.

F18188

SHIM - (.005") For ref. 52 bearing cage, power transfer and sliding gear shaft

1шт.

F18189

SHIM - (.010") For ref. 52 bearing cage, power transfer and sliding gear shaft

1шт.

52

F1561

CAGE - bearing, L.H., power transfer and sliding gear shaft

1шт.

BOLT - 3/8" x 1-1/8" N.C. hex. (113-220) L.W. (92-6), power transfer and sliding gear shaft

5шт.

53

F18131

OIL SEAL

- for ref. 52 cage, power transfer and sliding gear shaft

1шт.

54

T25082

BREATHER - final drive housing, power transfer and sliding gear shaft

2шт.

Выбрано товаров: 67
