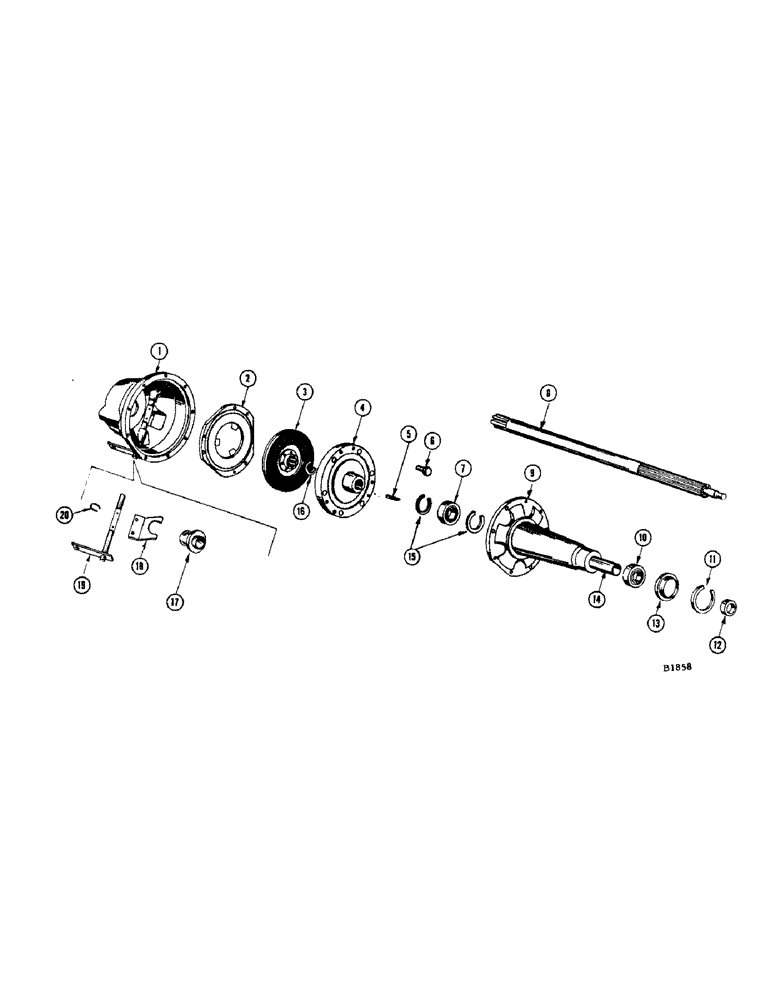

Запчасти Case IH 960 (310) - CLUTCH SHAFT AND HOUSING, 960 SPECIAL COMBINE (18) - CLUTCH

1

F1668

HOUSING - clutch

1шт.

113-501

BOLT - 9/16" x 1-1/4" N.C. hex. (7 or 8)

7шт.

193-13

WASHER, LOCK, Ext Tooth, 9/16" Ext Tooth, 9/16"

7шт.

F20483

GASKET

- clutch housing to trans. case

1шт.

2

F78513

CLUTCH ASSEMBLY

CLUTCH - less driving plate

1шт.

3

F78821

X

PLATE - driving, with facings

1шт.

4

F1617

PLATE

- clutch mounting

1шт.

5

F18126

KEY - clutch mounting plate

1шт.

6

F9738

CAP SCREW - clutch mounting plate

6шт.

129-512

NUT,5/16"-18, G8

- 5/16" N.C. hex. (8)

6шт.

92-5

LOCK WASHER,5/16"

6шт.

7

F10265

BALL BEARING

BEARING - inner, input shaft

1шт.

8

F19610

SHAFT - input

1шт.

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

9

F1611

COVER - clutch housing

1шт.

114-212

X

BOLT - 3/8" x 1-1/2" N.F. hex. (7 or 8)

9шт.

129-524

NUT,3/8"-24, G8

(8) 3/8"-24, G8

9шт.

92-6

LOCK WASHER,3/8"

9шт.

10

F10265

BALL BEARING

BEARING - outer, input shaft

1шт.

11

F9754

RING, SNAP

SNAP RING - for outer clutch cover bearing

1шт.

12

F18152

SLEEVE

- input shaft bearing retainer

1шт.

13

F9759

RETAINER

- input shaft bearing

1шт.

14

F19602

SPACER - input shaft bearing

1шт.

15

F9755

RING, SNAP

SNAP RING - for inner clutch cover bearing

2шт.

16

A27085

RING

SNAP RING - for mounting plate

1шт.

17

F78114

BEARING - clutch release

1шт.

18

F19660

FORK

YOKE - clutch release

1шт.

114-117

BOLT - 5/16" x 1-3/8" N.F. hex. (7 or 8)

2шт.

129-513

NUT - 5/16" N.F. hex. (8)

2шт.

92-5

LOCK WASHER,5/16"

2шт.

19

F83529

SHAFT - clutch release, with lever

1шт.

20

F10139

SNAP RING - clutch release shaft

2шт.
