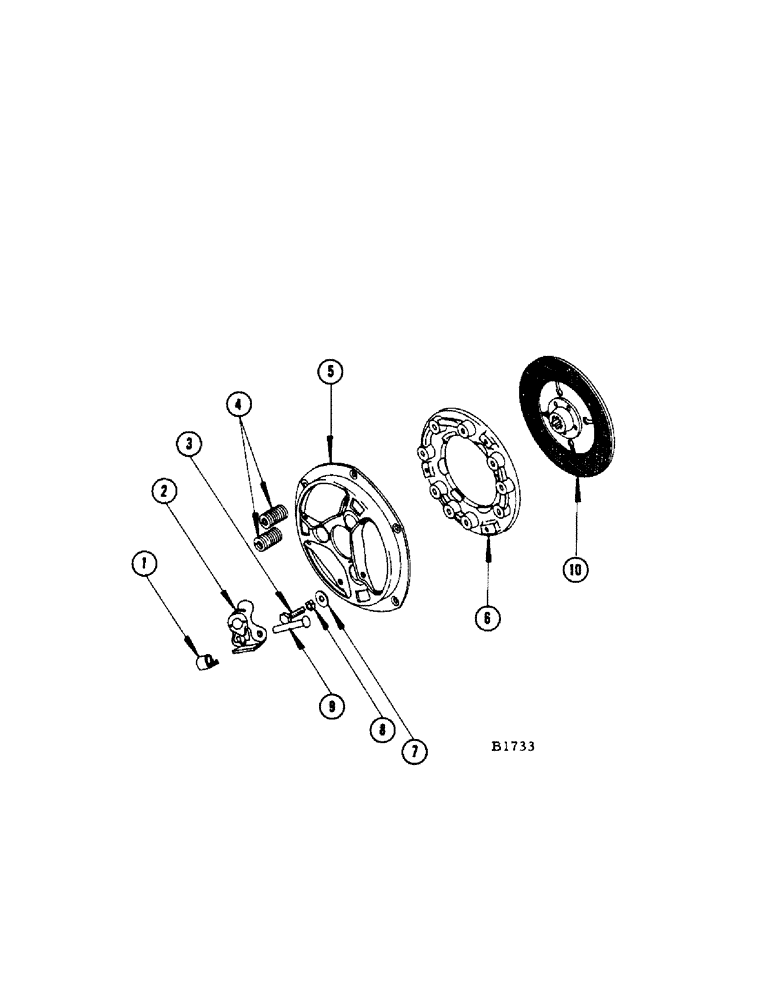

Запчасти Case IH 960 (292[1]) - BEFORE NO. 8323600 (18) - CLUTCH

F82288

PLATE

SPARE PART PLATE - pressure drive

1шт.

1

G46061

CLIP

CLIP - clutch return

3шт.

2

F18351

LEVER

LEVER - clutch

3шт.

3

G49004

SCREW

SCREW - adjusting, pressure plates

3шт.

4

F18353

SPARE PART SPRING - lever (Lavender)

3шт.

5

G46200

SPARE PART BRACKET AND HUB - pressure plate

1шт.

6

F18348

LARGE PLATE

PLATE, LARGE PLATE - pressure

1шт.

7

V20214

WASHER

WASHER - adjusting screw

3шт.

8

G49005

SPARE PART NUT - jam, adjusting screw

3шт.

9

G46060

PIN

PIN - pivot, for lever

3шт.

10

A30291

DRIVE PLATE

PLATE - driving, with facings

1шт.

10

AR44512

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 9 in., 10Tooth hub, full face friction matl, N.A. Only

1шт.

10

AC44512

CORE-CLUTCH DISC

Return Number, N.A. Only

1шт.
