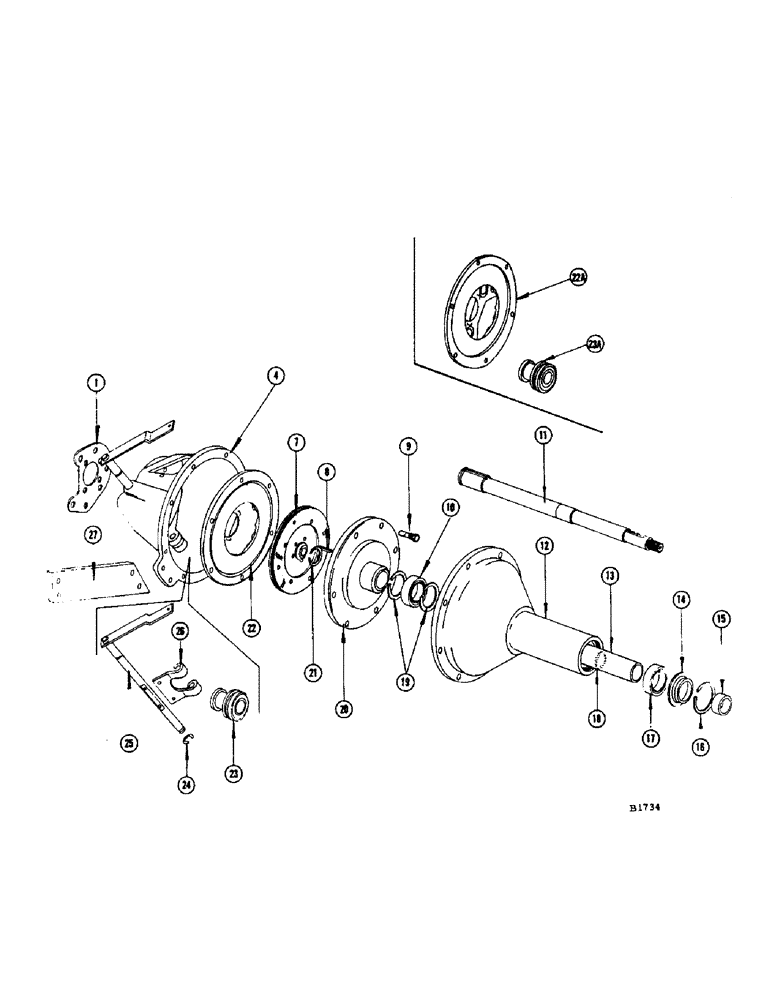

Запчасти Case IH 960 (290) - CLUTCH SHAFT AND HOUSING - GRAIN COMBINE (18) - CLUTCH

1

F18192

SPARE PART GASKET - clutch housing to transmission case

1шт.

4

F1669

SPARE PART HOUSING - clutch

1шт.

BOLT - 1/2" x 1-3/8" N.C. hex. grade 7 or 8 (113-416)

9шт.

LOCKWASHER - 1/2" (92-6)

9шт.

7

A30291

DRIVE PLATE

PLATE - driving, with facings

1шт.

7

AR44512

REMAN-CLUTCH DISC

Remanufactured, 9 in., 10Tooth hub, full face friction matl, N.A. Only

1шт.

7

AC44512

CORE-CLUTCH DISC

Return Number, N.A. Only

1шт.

8

F18126

SPARE PART KEY - for F1498 clutch mounting plate

1шт.

9

F9738

SPARE PART BOLT - clutch mounting plate

6шт.

NUT - 5/16" N.C. hex. grade 8 (129-512) L.W. (92-5)

6шт.

10

F10265

BALL BEARING

BEARING - inner, input shaft

1шт.

11

F17957

SPARE PART SHAFT - power input

1шт.

12

F1497

SPARE PART COVER - clutch housing

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex. (114-212) L.W. (92-6)

8шт.

13

F9761

SPARE PART SPACER - input shaft

1шт.

14

F9759

RETAINER

RETAINER - input shaft bearing

1шт.

15

F18152

SLEEVE

SLEEVE - input shaft bearing retainer

1шт.

16

F9754

RING, SNAP

RING SNAP SNAP RING - retaining outer clutch cover bearing

1шт.

17

F10265

BALL BEARING

BEARING - outer, input shaft

1шт.

18

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - for clutch housing cover

1шт.

19

F9755

RING, SNAP

RING SNAP SNAP RING - for F10265 inner bearing

2шт.

20

F1498

LARGE PLATE

PLATE, LARGE PLATE - clutch mounting (Replaced by F1741 when stock exh.)

1шт.

F1741

LARGE PLATE

PLATE, LARGE PLATE - clutch mounting (Replaces F1498 when stocks exh.)

1шт.

21

A27085

RING

SNAP RING - for F1498 plate

1шт.

22

F94024

PLATE

PLATE - pressure drive (#8323600 and after)

1шт.

22a

F82288

PLATE

SPARE PART PLATE - pressure drive (Before #8323600)

1шт.

23

F94064

BEARING CARRIER

BEARING - clutch throwout (#8323600 and after)

1шт.

23a

F82209

BEARING CARRIER

BEARING - clutch throwout (Before #8323600)

1шт.

24

F10139

SPARE PART SNAP RING - for throwout lever

2шт.

25

F82204

LEVER - clutch throwout

1шт.

26

F19660

FORK

YOKE - clutch throwout

1шт.

BOLT - 5/16" x 1-3/8" N.F. hex. grade 7 or 8 (114-117)

2шт.

NUT - 5/16" (129-513) L.W. (92-5)

2шт.

27

F17881

BRACKET - clutch housing

1шт.

BOLT - 1/2" x 1-1/2" N.F. hex. (14-824) Nut (25-118)

4шт.

LOCKWASHER - 1/2" (92-8)

4шт.

WASHER - 1/2" flat (95-8)

2шт.
