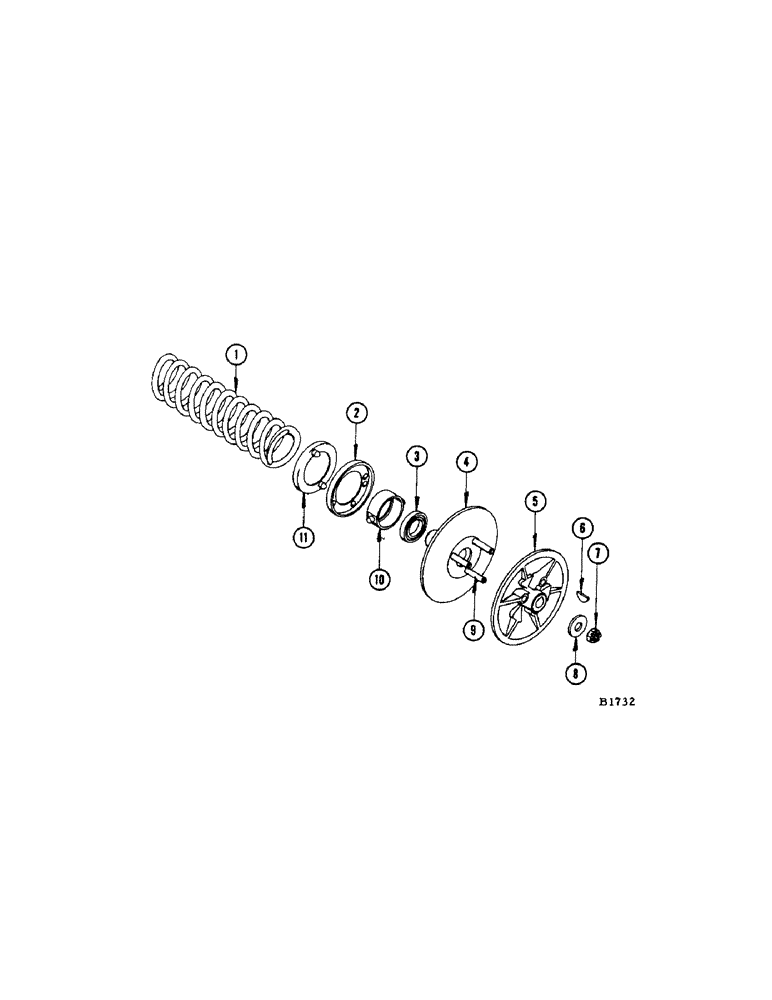

Запчасти Case IH 960 (286) - VARIABLE SPEED TRACTION DRIVE INDICATOR, NO. 8334601 AND AFTER (16) - TRACTION VARIATOR

1

F16893

SPRING - variable speed traction drive

1шт.

2

F16896

PLATE

- dimpled, spring retaining

1шт.

3

F20543

THRUST BEARING

BEARING - traction drive shaft

1шт.

4

F94335

SHEAVE

(Balanced assemblies)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - Lincoln #5000

1шт.

5

F1448

SHEAVE

HALF - stationary

1шт.

6

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

F1448 sheave #28, 5/16" x 2 1/8"

1шт.

7

F9830

NUT

- for traction drive shaft

1шт.

8

F10886

WASHER - drive shaft

1шт.

9

F19511

PIN

- spacer, for traction drive sheaves

3шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

3шт.

193-78

LOCK WASHER,3/8"

LOCKWASHER - Shakeproof

3шт.

10

F1661

HOUSING - bearing carrier

1шт.

11

F81298

PLATE - spring retaining

1шт.

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.
