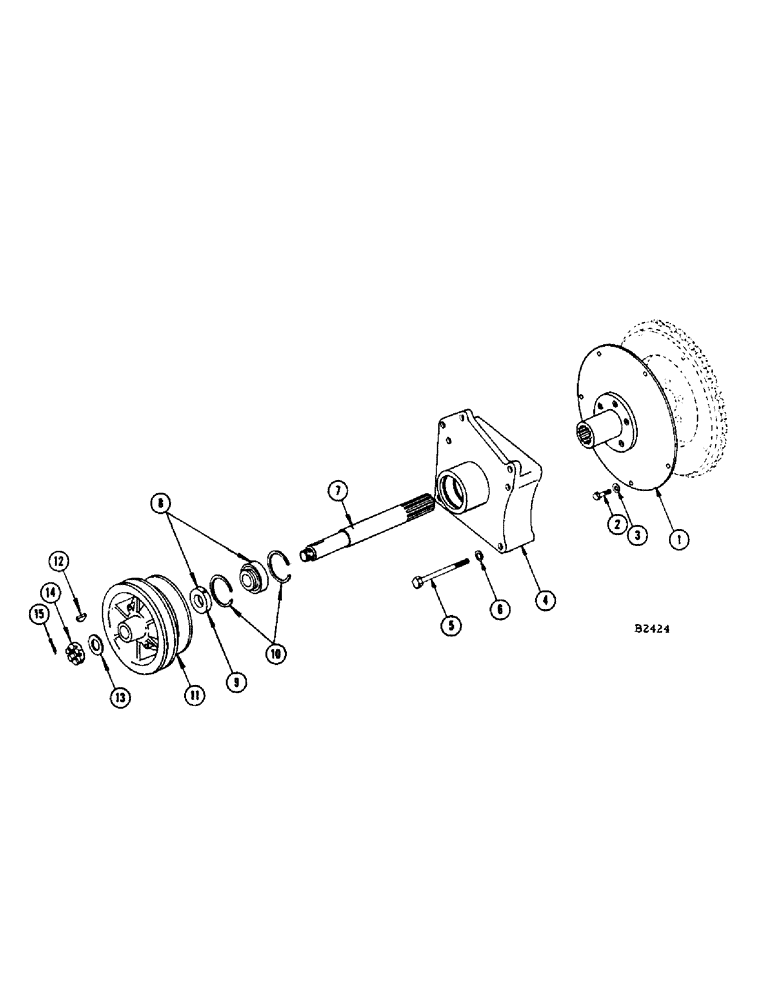

Запчасти Case IH 960 (280) - ENGINE OUTPUT SHAFT AND HOUSING (10) - ENGINE

1

F82452

DISC - drive

1шт.

2

F18604

BOLT - drive, Serial Range: disc-flywheel

6шт.

3

92-5

LOCK WASHER,5/16"

6шт.

4

F1577

HOUSING - bearing

1шт.

5

13-764

BOLT,Hex, 7/16" - 14 x 4", Gr 5

4шт.

6

92-7

LOCK WASHER,7/16"

4шт.

7

F17901

SHAFT - output

1шт.

8

F82059

BEARING ASSY,38.1mm ID x 80mm OD x 22mm W

BEARING - output shaft

1шт.

9

F62107

COLLAR

1шт.

10

A27579

RING

SNAP RING

2шт.

11

F2214

SHEAVE - engine output (#8358001 and after)

1шт.

F1711

SHEAVE - engine output (#8323601 thru #8358000)

1шт.

11

F1463

SHEAVE

- engine output (Before #8323601)

1шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

13

F62110

WASHER - output shaft

1шт.

14

F62106

NUT

- slotted

1шт.

15

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.
