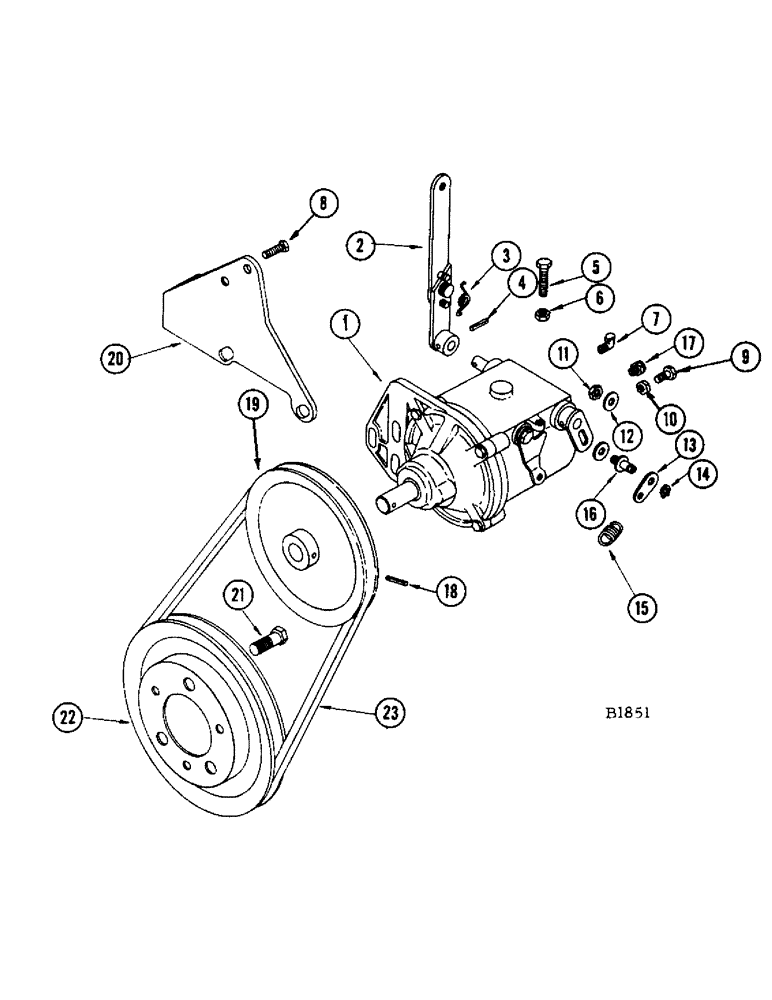

Запчасти Case IH 960 (252) - GOVERNOR (10) - ENGINE

1

F84037

GOVERNOR - (Hoof #BD502A) Replaced by F88331 when exh.

1шт.

F88331

GOVERNOR - (Hoof #BD502B) Before #8358001 (Replaces F84037 when stocks are exhausted)

1шт.

F94371

GOVERNOR

- (Hoof #BD502C) #8358001 and after, replaced by F89319 when exhausted

1шт.

F89319

GOVERNOR

- (Hoof #BD502D) #8371001 and after, replaces F94371 when exhausted, uses F65964 sheave (6-7/16" O.D.)

1шт.

2

F82947

LEVER - throttle, with F19653 spring

1шт.

3

F19653

SPRING - return, throttle lever

1шт.

4

138-54

LOCK PIN,1/8" x 9/16", Slotted

PIN, 1/8" x 9/16", Slotted

1шт.

5

F19650

SCREW - adjusting

1шт.

6

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

7

F21181

NECK FILLER

FILLER - oil

1шт.

8

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

3шт.

9

F82948

SCREW - bumper

1шт.

10

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

11

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

12

195-518

WASHER,1/4", SAE

FLATWASHER - 1/4"

3шт.

13

F19652

LINK - throttle lever spring

1шт.

14

A7111P

SNAP RING - used on pin selector

1шт.

15

F19649

SPRING - throttle lever

1шт.

16

F19651

PIN - selector

1шт.

17

F21182

LEVEL - oil (Replaced by F14821 when stocks are exh.)

1шт.

F14821

OILER - (Replaces F21182 when stocks are exh.)

1шт.

18

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

1шт.

19

F19654

PULLEY - (5-3/16" O.D.) Governor drive, driven before #8358001

1шт.

F22949

PULLEY - (#8358001 and after) (6-3/16" O.D.) Governor drive, driven. Used with F94371 governor

1шт.

SCREW - 5/16" x 1/4" N.F. socket hd. set (84-54)

1шт.

F65964

PULLEY - (6-7/16" O.D.) Governor drive, driven use with F89319 governor

1шт.

20

F18612

BRACKET - governor

1шт.

BOLT - 3/8" x 1-1/4" N.C. hex. (13-620) L.W. (92-6) and Fl. washer (95-6)

3шт.

21

F20408

SCREW - attaching, ref. 22 pulley to vibration damper

3шт.

22

F20068

PULLEY - drives governor (Bolts to vibration damper on crankshaft)

1шт.

23

F20128

BELT

"V" BELT - governor drive (Before #8358001)

1шт.

F13894

BELT

"V" BELT - governor drive (#8358001 and after)

1шт.
