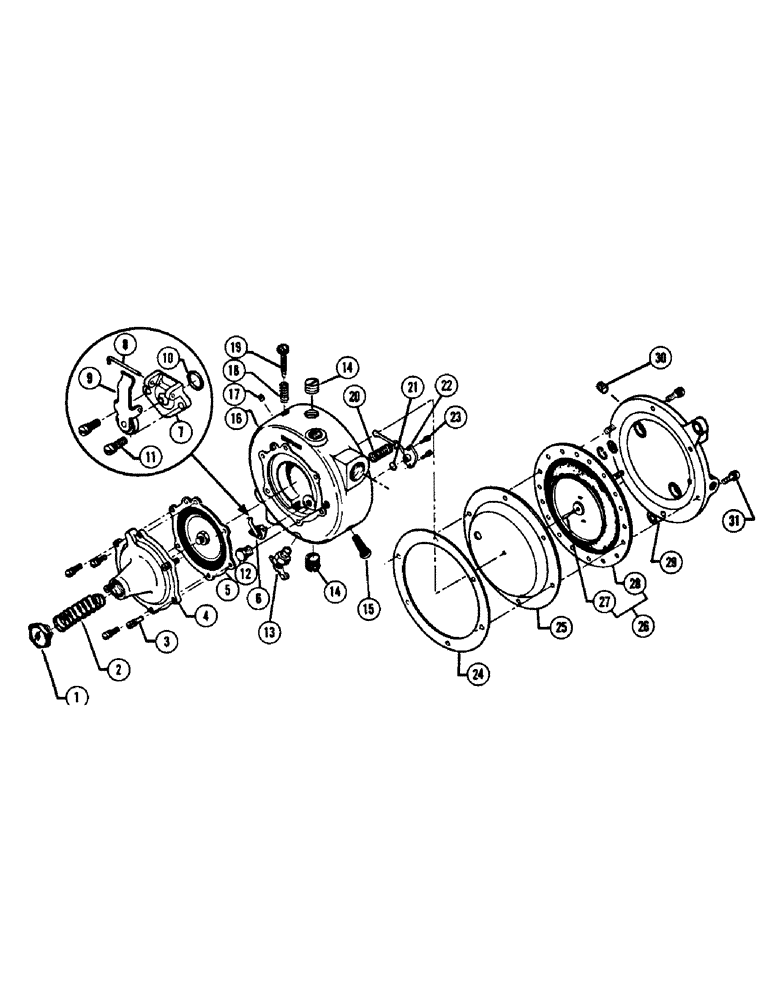

Запчасти Case IH 960 (250) - F83351 L. P. REGULATOR (10) - ENGINE

1

B50112

GUIDE - spring

1шт.

2

B50111

SPRING - pressure

1шт.

Part of REPAIR KIT, B50052

1шт.

3

B50035

SCREW - cover

6шт.

Part of REPAIR KIT, B50052

1шт.

4

B50110

COVER - regulator

1шт.

5

B50108

DIAPHRAGM - assembly, hi pressure

1шт.

Part of REPAIR KIT, B50052

1шт.

6

B50183

VALVE - assembly, hi pressure

1шт.

Part of REPAIR KIT, B50052

1шт.

7

B50176

BODY - valve (Order F50183)

1шт.

8

A40926

SPARE PART

PIN - pivot

1шт.

9

B50182

LEVER - assembly

1шт.

10

B50179

GASKET - hi pressure valve

1шт.

11

B50029

SCREW - hi pressure valve

2шт.

12

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" pipe

1шт.

13

217-102

PLUG, DRAIN

FITTING - draincock

1шт.

14

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - 1/2" pipe

2шт.

15

B50168

STRAINER - fuel inlet

1шт.

Part of REPAIR KIT, B50052

1шт.

16

A40168

HOUSING - regulator body

1шт.

17

A40074

SCREW - idle orifice

1шт.

18

B50022

SPRING - idle adjusting

1шт.

Part of REPAIR KIT, B50052

1шт.

19

B50024

SCREW - idle adjusting

1шт.

Part of REPAIR KIT, B50052

1шт.

20

B50121

SPRING - lo pressure valve

1шт.

Part of REPAIR KIT, B50052

1шт.

21

B50179

GASKET - lo pressure valve

1шт.

Part of REPAIR KIT, B50052

1шт.

22

B50181

VALVE - assembly, lo pressure

1шт.

Part of REPAIR KIT, B50052

1шт.

23

B50029

SCREW - lo pressure valve

2шт.

Part of REPAIR KIT, B50052

1шт.

24

B50177

GASKET - partition plate

1шт.

Part of REPAIR KIT, B50052

1шт.

25

B50175

PLATE - partition

1шт.

26

B50180

DIAPHRAGM

- assembly, lo pressure

1шт.

27

B50178

PIN - push

1шт.

Part of REPAIR KIT, B50052

1шт.

28

A40079

DIAPHRAGM

- lo pressure

1шт.

Part of REPAIR KIT, B50052

1шт.

29

A40169

PLATE - back cover

1шт.

30

B50058

PLUG - 1/8" pipe

1шт.

31

B50035

SCREW - back cover

6шт.

Part of REPAIR KIT, B50052

1шт.

B50052

KIT - repair, Includes Refs., 2, 3, 5, 6, 15, 18, 19, 20, 21, 22, 23, 24, 27, 28 and 31

1шт.

A24535

FILTER

- liquid (American Bosch FLT25B1)

1шт.
