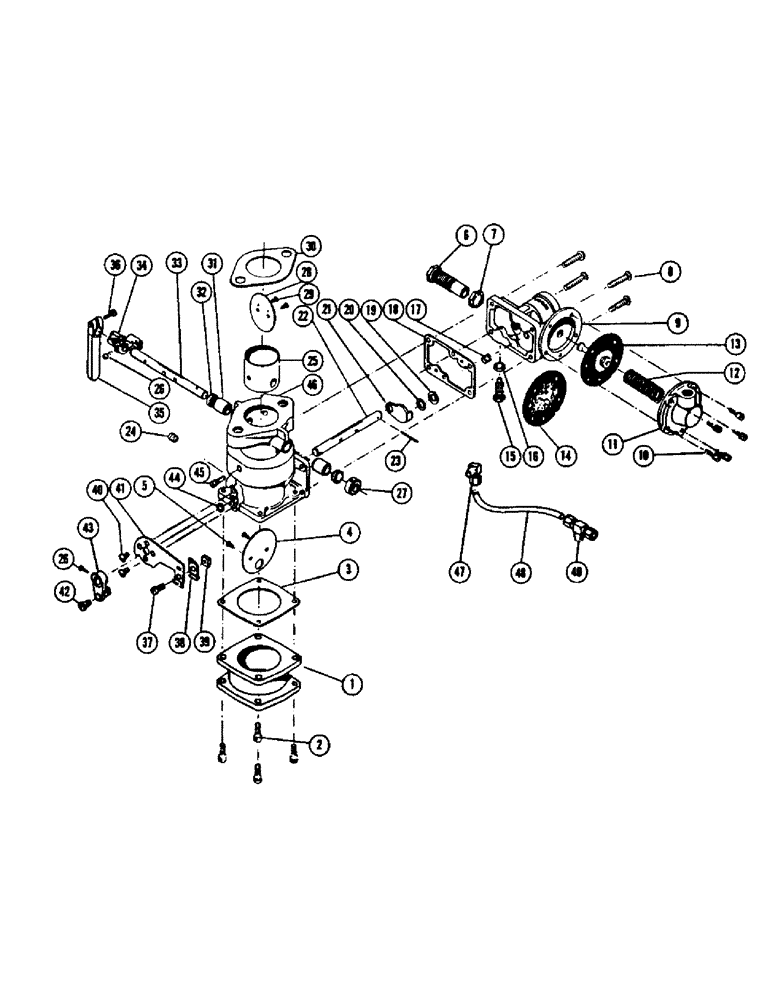

Запчасти Case IH 960 (248) - F83350 L. P. CARBURETOR (10) - ENGINE

1

A40911

ADAPTER - air intake

1шт.

2

A40560

SCREW

4шт.

Part of REPAIR KIT, B50203

1шт.

3

GASKET - adapter

1шт.

Part of REPAIR KIT, B50203

1шт.

4

A40920

DISC - choke

1шт.

5

B50142

SCREW - choke shaft

2шт.

6

A40333

SCREW - fuel adjusting

1шт.

7

B50091

LOCKNUT - fuel adjusting

1шт.

8

B50043

SCREW - economizer body

4шт.

Part of REPAIR KIT, B50203

1шт.

9

A40334

BODY - economizer

1шт.

10

B50030

SCREW - economizer cover

5шт.

Part of REPAIR KIT, B50203

1шт.

11

B50158

COVER - economizer

1шт.

12

B50146

SPRING - economizer

1шт.

Part of REPAIR KIT, B50203

1шт.

13

B50165

DIAPHRAGM - economizer, assembly

1шт.

14

B50147

DIAPHRAGM

1шт.

Part of REPAIR KIT, B50203

1шт.

15

A25252

SCREW - starting adjusting

1шт.

Part of REPAIR KIT, B50203

1шт.

16

B50148

LOCKNUT

1шт.

Part of REPAIR KIT, B50203

1шт.

17

B50156

SCREW - economizer orifice

1шт.

18

B50163

GASKET - economizer

1шт.

Part of REPAIR KIT, B50203

1шт.

19

B50136

WASHER - valve lever

1шт.

Part of REPAIR KIT, B50203

1шт.

20

B50046

WASHER - valve lever spring

1шт.

Part of REPAIR KIT, B50203

1шт.

21

B50160

LEVER - valve

1шт.

22

A40922

SHAFT - choke, assembly

1шт.

23

138-41

LOCK PIN,3/32" x 3/4", Slotted

Pin, 3/32" x 3/4", Slotted

1шт.

24

A9731

SCREW - balance bleed

1шт.

25

A40923

VENTURI

1шт.

26

F20881

SCREW

2шт.

Part of REPAIR KIT, B50203

1шт.

27

A40924

RING - choke shaft

1шт.

28

B50018

DISC - throttle

1шт.

29

B50143

SCREW - throttle disc

2шт.

Part of REPAIR KIT, B50203

1шт.

30

A27776

GASKET

- manifold

1шт.

31

B50202

BUSHING - throttle shaft

2шт.

32

B50145

SEAL - throttle shaft

2шт.

Part of REPAIR KIT, B50203

1шт.

33

A40918

SHAFT - throttle

1шт.

34

F83438

STOP

- throttle, assembly

1шт.

F20415

SCREW - stop adjusting (Not shown)

2шт.

35

F20416

LEVER - throttle, assembly

1шт.

36

A40925

SCREW - throttle lever

1шт.

37

A40044

PIPE

SCREW - support clamp

1шт.

Part of REPAIR KIT, B50203

1шт.

38

B50204

CLAMP - support

1шт.

Part of REPAIR KIT, B50203

1шт.

39

A40046

NUT - support clamp

1шт.

Part of REPAIR KIT, B50203

1шт.

40

A40342

PROTECTOR

SCREW - support

1шт.

Part of REPAIR KIT, B50203

1шт.

41

B50150

SUPPORT - assembly

1шт.

42

B50033

SCREW - choke swivel

1шт.

43

A40343

LEVER - choke assembly

1шт.

44

B50144

SEAL - choke shaft

1шт.

Part of REPAIR KIT, B50203

1шт.

45

B50042

SCREW - venturi

1шт.

46

NSS

NOT SOLD SEPARAT

BODY - assembly

1шт.

47

222-616

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

FITTING - elbow

1шт.

48

B50109

TUBE

1шт.

49

A40912

FITTING - tee

1шт.

F20417

LEVER - slip (Not shown)

1шт.

F83439

STOP - assembly (Not shown)

1шт.

F20298

FLANGE - adapter (Not shown)

1шт.

B50203

KIT - repair, Includes Refs., 2, 3, 8, 10, 12, 14, 15, 16, 18, 19, 20, 26, 29, 32, 37, 38, 39, 40 and 44

1шт.
