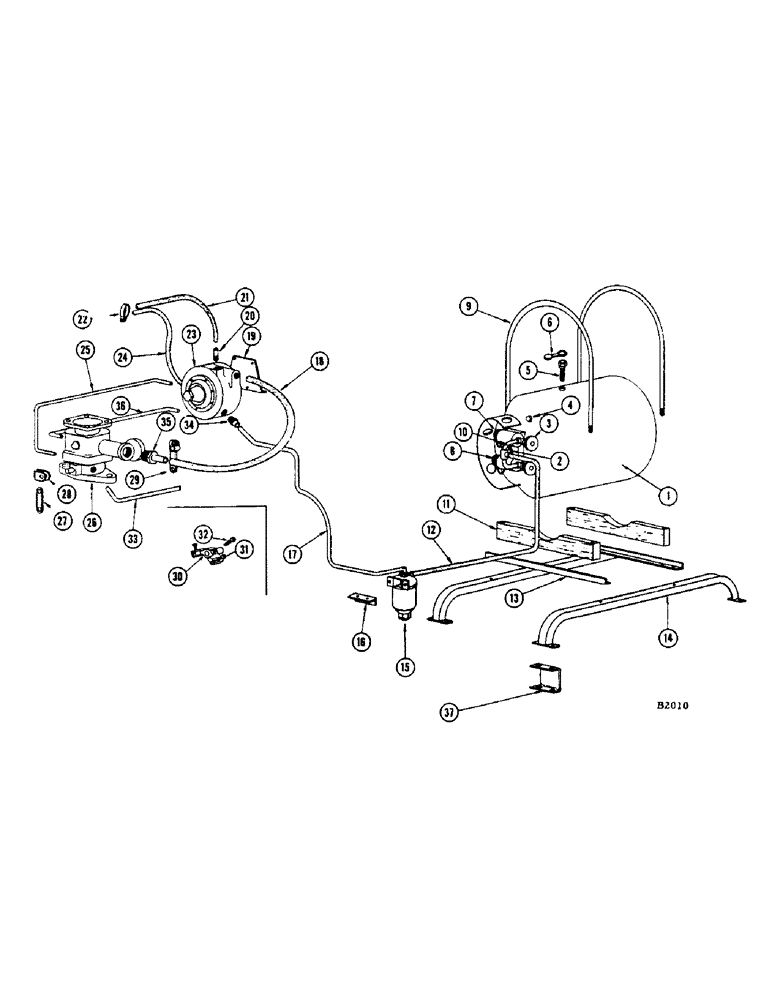

Запчасти Case IH 960 (244) - L P FUEL SYSTEM (10) - ENGINE

1

F77873

TANK - fuel

1шт.

2

A20423

GAUGE - visible

1шт.

177-133

SCREW - 1/4" x 15/16" N.F. fill. hd.

4шт.

3

4003AA

X

VALVE - vapor and liquid outlet

2шт.

4

A29941

GAUGE - fixed fuel level

1шт.

5

A20696

SEAL

VALVE - safety relief

1шт.

6

A20697

WIPER

CAP - safety relief valve

1шт.

7

A9320

VALVE - vapor return

1шт.

A40630

CAP - assembly, w/chain

1шт.

8

A29942

VALVE - liquid filler

1шт.

A40631

CAP - assembly, w/chain

1шт.

9

F20316

STRAP - mounting, fuel tank

2шт.

NUT - 1/2" N.C. hex., (25-118) L.W. (92-8)

4шт.

10

A27685

TUBE - tank, Serial Range: valves-tee

2шт.

222-564

TEE - 3/8" tube size

1шт.

A26388

X

NUT - not shown

1шт.

11

F4344

BLOCK - support, fuel tank

2шт.

12

F21709

LINE - fuel, Serial Range: tank-filter

1шт.

F21710

LOOM - fuel line

1шт.

13

F20313

ANGLE - support, fuel tank

2шт.

BOLT - 3/8" x 3-1/2" N.C. rhd. sq. nk. (11-656)

4шт.

NUT - 3/8" (25-116) L.W. (92-6)

4шт.

14

F84554

SUPPORT - fuel tank

2шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) Nut (25-116) L.W. (92-8)

8шт.

15

A24535

FILTER

- liquid (American Bosch FLT25B1)

1шт.

222-437

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

- 3/8" tube size

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) Nut (25-115)

2шт.

LOCKWASHER - 5/16" (92-5)

2шт.

16

F11092

BRACKET - liquid filter

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) Nut (25-115)

2шт.

LOCKWASHER - 5/16" (92-5)

2шт.

17

F20319

LINE - fuel, Serial Range: filter-regulator

1шт.

F20320

LOOM - for F20319 fuel line

1шт.

18

F20321

HOSE - vapor connector, Serial Range: regulator-carburetor

1шт.

214-115

X,#20, 1 1/4", Spring

CLAMP -hose

2шт.

19

F20299

PLATE - mounting, regulator

1шт.

BOLT - 5/16" x 1-1/4" N.F. hex. (14-520) Nut (25-115)

2шт.

LOCKWASHER - 5/16" (92-5)

2шт.

20

F20300

NIPPLE - pipe

3шт.

21

F20301

HOSE - water return, regulator to engine block

1шт.

214-110

CLAMP,#15, 15/16", Spring

- hose

2шт.

22

F20309

CLAMP - water inlet and return hoses

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) Nut (25-114) L.W. (92-4)

1шт.

23

F83351

REGULATOR - fuel (American Bosch RDG55A1)

1шт.

LOCKWASHER - 5/16" (92-5)

3шт.

BOLT - 5/16" x 1-1/4" N.F. hex. (14-520) Nut (25-115)

3шт.

222-404

CONNECTOR - #88 LB Imperial

1шт.

221-413

ELBOW,90 Degree, 3/8"-18, NPT

- 3/8" - 90 degree street

1шт.

222-431

ELBOW,90 Degree x 1/8" NPT x 3/8"-24

- 3/16" tube size x 3/8" PT

1шт.

221-187

PIPE,Nipple, 1/2" NPT x 1 1/2"

NIPPLE - 1-1/2" pipe

1шт.

24

F20302

HOSE - water inlet, cylinder, Serial Range: head-regulator

1шт.

214-210

X

CLAMP - hose

2шт.

25

F20322

TUBE - idle, Serial Range: carburetor-regulator

1шт.

26

F83350

CARBURETOR - (American Bosch CBX150A-5502A)

1шт.

222-434

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

- #89 LB Imperial

1шт.

27

F20417

LEVER - slip, throttle control

1шт.

28

F83439

STOP - throttle slip lever (Includes screw and nut)

1шт.

29

F20416

LEVER - control

1шт.

30

F83438

STOP

- throttle, governor link

1шт.

31

F20415

SCREW - adjusting

2шт.

32

F20881

SET SCREW - throttle stop

1шт.

F20298

FLANGE

1шт.

33

F20310

EXTENSION - vacuum line, Serial Range: carburetor-distributor

1шт.

34

222-407

HYD CONNECTOR,1/4" NPT x 9/16"-20

CONNECTOR - (3/8" tube size x 1/4" PT) regulator

2шт.

35

A11791

CONNECTOR - vapor hose ref., Serial Range: 18-carburetor

1шт.

36

F20308

LINE - fuel balance, Serial Range: regulator-carburetor

1шт.

37

F21169

CARRIAGE BOLT

SUPPORT - channel

4шт.

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- 3/8" x 3/4" N.F. hex.

6шт.

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

129-123

NUT,3/8"-24, G5

8шт.
