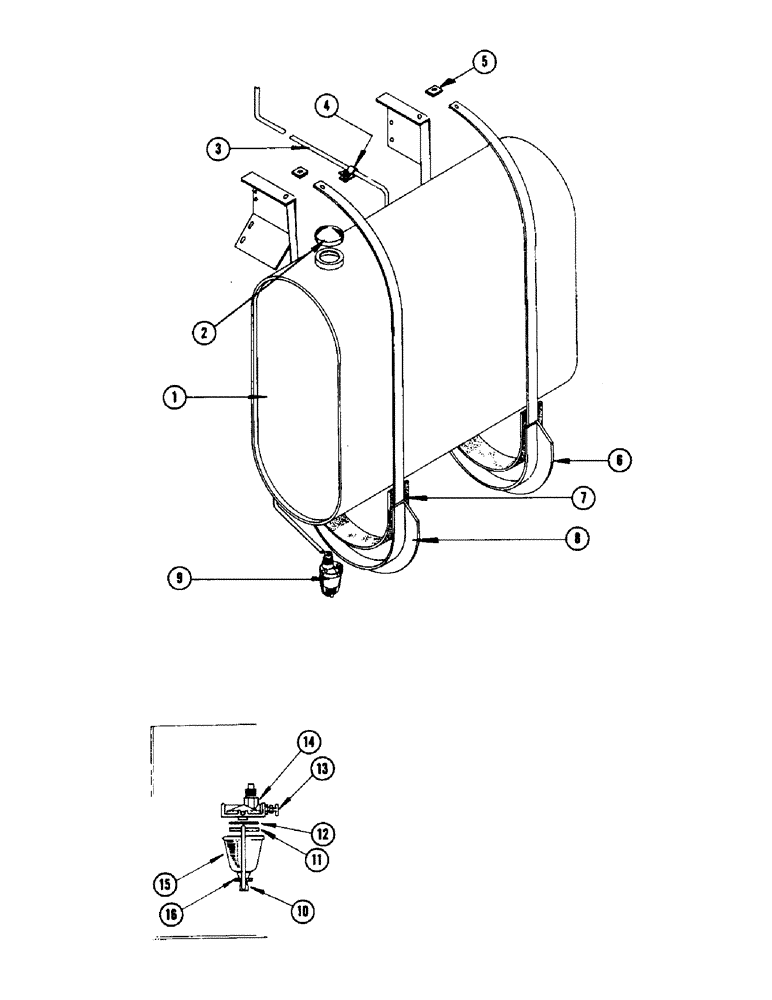

Запчасти Case IH 960 (242) - FUEL TANK - GASOLINE (10) - ENGINE

1

F84341

TANK - fuel

1шт.

2

F6541

CAP

- tank

1шт.

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" sq. hd. pipe

1шт.

3

F21824

CARRIAGE BOLT

LINE - fuel

1шт.

F18679

HOSE - fuel line

1шт.

214-104

HOSE CLAMP,#9, 9/16", Spring

CLAMP - hose

2шт.

4

O2342FH

CLIP - fuel line

2шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

2шт.

5

F8190

WASHER - fuel tank strap

2шт.

6

F84342

SUPPORT - front fuel tank

1шт.

7

F17261

SCREW

CUSHION - felt

2шт.

8

F84343

SUPPORT - rear fuel tank

1шт.

114-127

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

- 5/16" x 1-3/4" N.F. hex., nut and lockwasher

2шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

222-24

FITTING,9/16"-24 x 1/8" NPTF

- 5/16" x 1/8" connector #66FL

1шт.

9

A30049

STRAINER ELEMENT

STRAINER - fuel

1шт.

10

A11212

BAIL

- assembly

1шт.

11

A11208

GASKET

- cork

1шт.

12

A11211

FILTER SCREEN

SCREEN

1шт.

13

A11205

VALVE

1шт.

14

A11214

HEAD

1шт.

15

A11209

BOWL

- glass

1шт.

16

A11210

ADJUSTER

CUP AND NUT

1шт.
