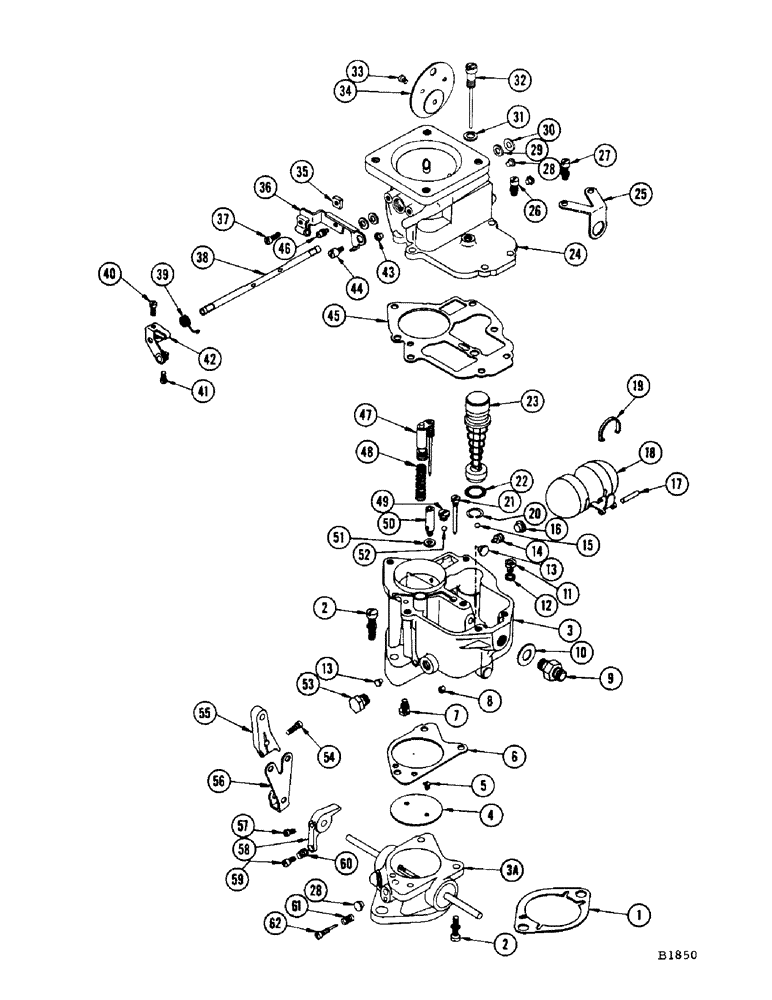

Запчасти Case IH 960 (238) - F82463 CARBURETOR (10) - ENGINE

1

F18628

GASKET

- flange

1шт.

2

F19913

SCREW - body flange, with washer

2шт.

3

NSS

NOT SOLD SEPARAT

BOWL

1шт.

3a

NSS

NOT SOLD SEPARAT

BODY - flange

1шт.

F19882

PLUG - rivet (Not shown)

1шт.

4

F19875

VALVE - throttle

1шт.

5

F19895

SCREW

- adjusting, throttle valve

2шт.

6

F19868

GASKET - body flange

1шт.

7

F19917

SCREW - body flange, with washer

1шт.

8

F19862

FLANGE BOLT

PLUG - Hi-speed passage

1шт.

9

F20067

NEEDLE AND SEAT

1шт.

10

F19889

FLANGE BOLT

GASKET - needle seat

1шт.

11

F19873

JET - main metering, with F19888 gasket

1шт.

12

F19888

FLANGE BOLT

GASKET - main metering jet

1шт.

13

F19880

PLUG - rivet, carburetor

4шт.

14

F19896

FLANGE BOLT

JET - pump

1шт.

15

F19921

FLANGE BOLT

BALL - check, pump intake

1шт.

16

F19884

PLUG - rivet, pump jet

1шт.

17

F19892

FLANGE BOLT

PIN - floate lever

1шт.

18

F19891

FLANGE BOLT

FLOAT - with lever

1шт.

19

F19904

RETAINER - float lever pin

1шт.

20

F19863

FLANGE BOLT

GASKET - step-up piston

1шт.

21

F19870

TUBE - idle orifice, with plug

1шт.

22

F19905

FLANGE BOLT

RING - retaining, pump check ball

1шт.

23

F19866

ROD

PLUNGER - with rod and piston

1шт.

F19900

SPRING - pump plunger (Not shown)

1шт.

F19901

SPRING - pump plunger (Not shown)

1шт.

24

F19874

FLANGE - body

1шт.

25

F19897

LOCK - needle seat

1шт.

26

F19915

FLANGE BOLT

SCREW - air horn, with washer

2шт.

F19916

FLANGE BOLT

SCREW - air horn, with washer (Not shown)

2шт.

27

F19914

FLANGE BOLT

SCREW - airhorn, with washer

2шт.

28

F19883

PLUG - rivet passage

1шт.

29

F19926

SEAL - dust, choke shaft

2шт.

30

F19923

RETAINER - dust seal, choke shaft

2шт.

31

F19871

GASKET - main vent plug

1шт.

32

F19872

TUBE - main vent, with plug

1шт.

33

F19894

FLANGE BOLT

SCREW - attaching, choke valve

2шт.

34

F19878

VALVE - choke

1шт.

SCREW - #10 x 3/4" N.C. mach. (173-204) and Nut (192-7) L.W. (92-3)

1шт.

35

F19920

NUT - choke tube clamp

1шт.

36

F19903

FLANGE BOLT

BRACKET - choke tube

1шт.

37

F19909

SCREW - clamp, choke tube bracket

1шт.

38

F19886

SHAFT - choke

1шт.

F19900

SPRING - choke shaft

1шт.

F19901

SPRING - choke shaft

1шт.

39

F19902

FLANGE BOLT

SPRING - choke

1шт.

40

F19908

SCREW - wire clamp

1шт.

41

F19907

SCREW - attaching, choke bracket

1шт.

42

F19887

LEVER - choke

1шт.

43

F19881

PLUG - rivet, body flange

1шт.

44

F19910

SCREW - attaching, choke bracket

1шт.

45

F19867

GASKET

- bowl cover

1шт.

46

F19912

SCREW - choke tube bracket, with washer

1шт.

47

F19925

PLATE - step-up piston, with rod

1шт.

48

F19865

FLANGE BOLT

SPRING - step-up piston

1шт.

49

F19879

PLUG - pump passage

1шт.

50

F19924

JET - step-up

1шт.

51

F19890

FLANGE BOLT

GASKET - step-up jet

1шт.

52

F19922

BALL - check, pump

1шт.

53

F19885

PLUG - bowl drain

1шт.

54

F19906

SCREW - attaching, throttle lever dog

1шт.

55

F20048

DOG - throttle lever

1шт.

56

F19876

LEVER - throttle

1шт.

F19919

FLANGE BOLT

SCREW - attaching, throttle lever (Not shown)

1шт.

57

F19918

FLANGE BOLT

SCREW - set, throttle shaft dog

1шт.

58

F19877

DOG - throttle shaft

1шт.

59

F19911

SCREW - attaching, throttle shaft dog

1шт.

60

F19898

SPRING - adjusting, throttle shaft dog

1шт.

61

F19899

SPRING - idle adjusting

1шт.

62

F19893

FLANGE BOLT

SCREW - idle adjusting

1шт.

F82936

KIT

- carburetor gasket (Includes ref. 1, 6, 10, 12, 20, 31, 45 and 51)

1шт.

F83056

KIT - carburetor repair (Includes ref. 1, 6, 9, 11, 20, 21, 23, 31, 32, 45 and 48)

1шт.
