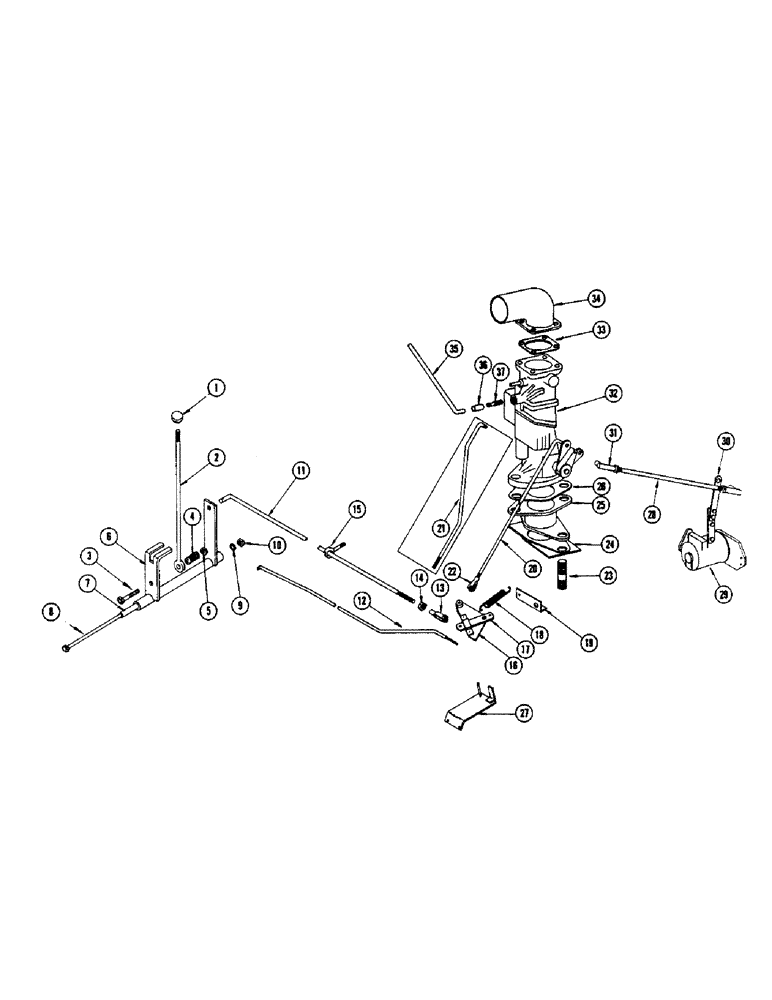

Запчасти Case IH 960 (236) - THROTTLE CONTROL LINKAGE, SPARK IGNITION ENGINES (10) - ENGINE

1

F21683

KNOB

- throttle lever

1шт.

2

F21575

CARRIAGE BOLT

LEVER - throttle

1шт.

3

14-424

SCREW,Hex, 1/4" - 28 x 1 1/2", Gr 5

BOLT - 1/4" x 1-1/2" N.F. hex.

1шт.

4

A30370

SPRING - throttle lever return

1шт.

5

131-1

LOCK NUT,1/4"-28, GB

NUT - 1/4" N.F. lock

1шт.

6

F84368

ARM - throttle control

1шт.

7

O670B

SPACER

2шт.

8

14-4120

BOLT - 1/4" x 7-1/2" N.F. hex.

1шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

11

F21840

CARRIAGE BOLT

ROD - throttle, front (Grain combine w/bin or bagger)

1шт.

12

F83436

ROD - throttle, front (960 special w/bin)

1шт.

13

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS

1шт.

14

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

F20335

STOP - throttle rod (L.P. engine)

1шт.

15

F21531

EYEBOLT - throttle rod guide

1шт.

25-104

NUT,1/4"-20, G5

2шт.

16

F82475

BELLCRANK - throttle (Before #8358001)

1шт.

F94205

BELLCRANK - throttle (#8358001 and after)

1шт.

17

F19389

EXCITER

ARM - pivot, throttle control (Before #8358001)

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex., and dbl. nut

1шт.

18

104EB

SPRING - pivot (Before #8358001)

1шт.

19

F19384

CLIP - anchor (Before #8358001)

1шт.

20

F18658

ROD - rear throttle (Gasoline engine)

1шт.

21

F20311

ROD - rear throttle (L.P. engine)

1шт.

22

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS

1шт.

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis

1шт.

23

F18629

STUD -, Serial Range: carburetor-manifold

2шт.

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex. jam and L.W.

2шт.

24

F18627

GASKET - bottom, flange adapter

1шт.

25

F1579

ADAPTER - flange, carburetor (Gasoline engine)

1шт.

F20298

FLANGE - adapter, carburetor (L.P. engine)

1шт.

73-620

BOLT (MACHINE),M12 x 50mm, Cl 10.9

SCREW - 3/8" x 1-1/4" N.C. mach.

2шт.

26

F18628

GASKET

- top, flange adapter

1шт.

27

F82472

BRACKET - pivot, throttle bellcrank (Before #8358001)

1шт.

F94204

BRACKET - pivot, throttle bellcrank (#8358001 and after)

1шт.

28

F19655

ROD -, Serial Range: governor-throttle

1шт.

29

F88331

GOVERNOR - (Hoof #BD502B) Before #8358001 (Replaces F84307 when stocks are exh.)

1шт.

F94371

GOVERNOR

- (Hoof #BD502C) (#8358001 and after) (Exh. then use F89319)

1шт.

F89319

GOVERNOR

- (#8358001 and after) (Replaces F94371 when exh.)

1шт.

F84037

GOVERNOR - (Hoof #BD502A) Replaced by F88331 when exh.

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex., L.W. and flt. wshr.

3шт.

30

F82947

LEVER - throttle

1шт.

138-54

LOCK PIN,1/8" x 9/16", Slotted

PIN, 1/8" x 9/16", Slotted

1шт.

31

A10329

BALL JOINT,1/4" - 28 x 1"

- governor to throttle rod

2шт.

425-154

JAM NUT,Jam, 1/4"-28, G5

4шт.

193-28

LOCK WASHER,Int Tooth, 1/4"

LOCKWASHER - 1/4"

2шт.

32

F82463

CARBURETOR - (Carter E7D3) (Gas engine)

1шт.

222-56

FITTING - ell 5/16" x 1/8" brass

1шт.

F83350

CARBURETOR - (Amer. Bosch CBX150A-5502A) L.P. engine

1шт.

75-512

SCREW,Rd, 5/16" - 18 x 3/4"

- 5/16" x 3/4" N.C. mach. and L.W.

4шт.

33

F18630

GASKET - carburetor elbow

1шт.

34

F1580

ELBOW - carburetor to air cleaner tube

1шт.

75-512

SCREW,Rd, 5/16" - 18 x 3/4"

- 5/16" x 3/4" N.C. rhd. mach. and L.W.

4шт.

35

F20024

TUBE - vacuum control, Serial Range: distributor-carburetor

1шт.

36

F20030

EXTENSION - vacuum tube

2шт.

37

F19997

CONNECTOR - vacuum tube

1шт.
