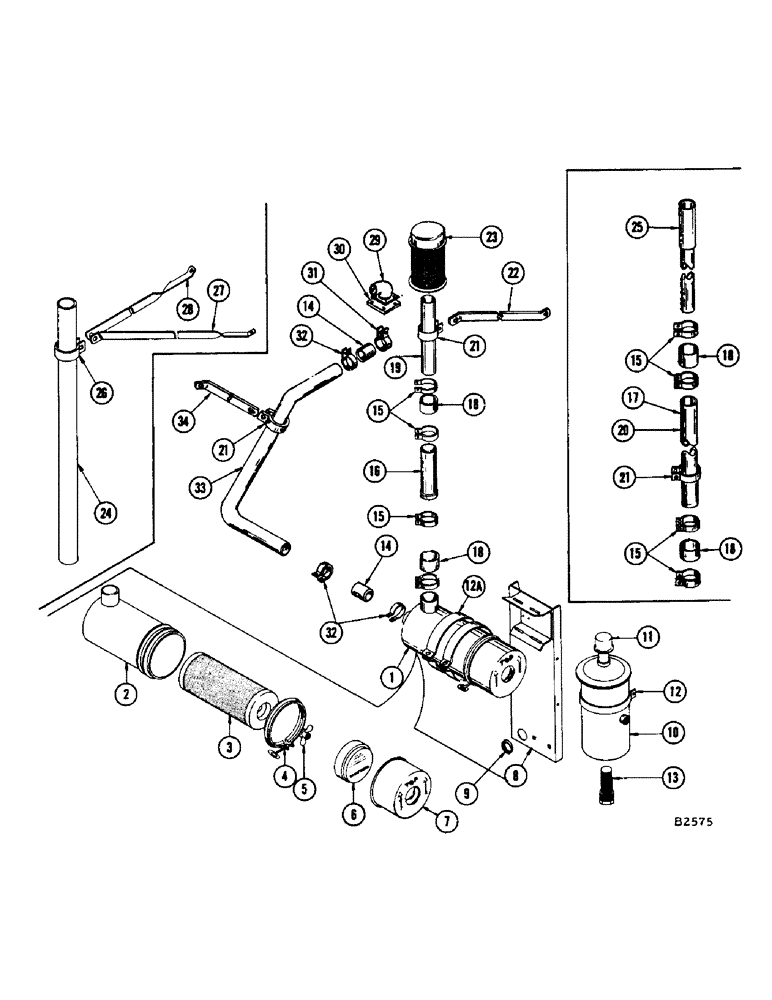

Запчасти Case IH 960 (233A) - DRY TYPE AIR CLEANER (10) - ENGINE

1

F84514

AIR CLEANER

- dry

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

F84998

FILTER, ELEMENT

ELEMENT

1шт.

4

F84999

CLAMP,168.28mm

1шт.

5

F91761

WING NUT

WING NUT - with gasket

1шт.

6

F22312

BAFFLE

- air cleaner

1шт.

7

F91760

CUP

- air cleaner

1шт.

8

F84897

PLATE - air cleaner and reservoir support

1шт.

9

A27339

GROMMET

1шт.

10

F83852

RESERVOIR - hydraulic oil (See page 272)

1шт.

11

F82075

GAUGE - oil level

1шт.

12

F17217

SCREW

STRAP - reservoir hydraulic

2шт.

12a

F17217

SCREW

STRAP - dry air cleaner

2шт.

BOLT - 3/8" x 1-1/4" (14-620) N.F. hex. nut and L.W.

1шт.

13

F81630

SCREEN - hydraulic reservoir

1шт.

14

F18694

HOSE - air cleaner

2шт.

15

214-35

CLAMP

- hose

2шт.

16

F21818

CARRIAGE BOLT

EXTENSION - air cleaner, lower (Before #8358001)

1шт.

17

F22755

PLOW BOLT

TUBE - air cleaner intake (#8358001 and after)

1шт.

18

F11510

HOSE

1шт.

19

F21819

CARRIAGE BOLT

TUBE - outside intake upper (Before #8358001)

1шт.

20

F22755

PLOW BOLT

TUBE - air cleaner intake (#8358001 and after)

1шт.

21

F19262

CLAMP - extension brace

2шт.

22

F22262

BRACE - air cleaner extension

1шт.

23

F83641

CLEANER

PRE-SCREENER

1шт.

24

F12107

EXTENSION - air cleaner (Before #8358001)

1шт.

25

F94239

TUBE - extension (#8358001 and after)

1шт.

26

F17934

BRACE - R.H.

1шт.

28

F17935

BRACE - L.H.

1шт.

29

F1580

ELBOW - carburetor to air cleaner tube

1шт.

30

F18630

GASKET - carburetor elbow

1шт.

31

214-34

X

CLAMP - hose, #24

1шт.

32

214-33

CLAMP

- hose #23

3шт.

33

F22265

TUBE - air cleaner

1шт.

34

F22501

BRACE

1шт.
