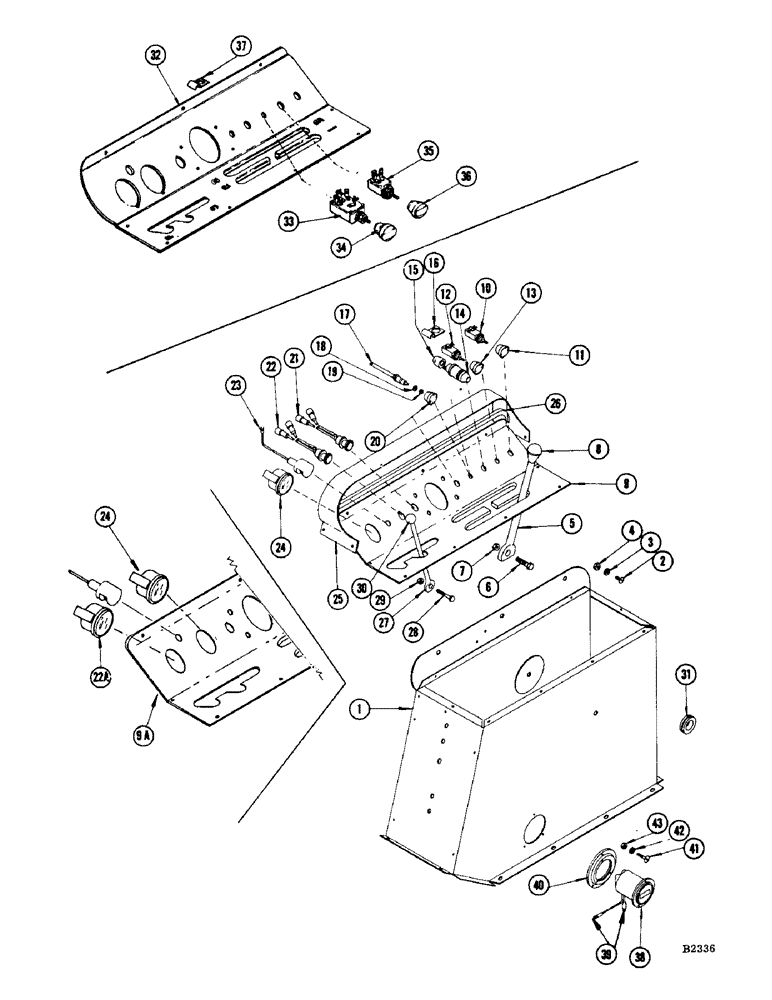

Запчасти Case IH 960 (230) - INSTRUMENT PANEL (10) - ENGINE

1

F84367

CONSOLE - instrument panel

1шт.

2

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N.C. rhd. mach.

3шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

4

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

5

F21574

LEVER - gear shift

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

7

131-6

LOCK NUT,3/8"-16, GC

LOCKNUT - 3/8" N.C.

1шт.

8

F5301

KNOB

1шт.

9

F21637

PANEL - instrument (Before #8297316)

1шт.

9a

F22226

PANEL - instrument (#8297316 thru #8311399)

1шт.

10

A10942

KIT

SWITCH - light

1шт.

11

A7817

KNOB

- light switch

1шт.

12

A7935

SWITCH

- ignition

1шт.

13

A7819

KNOB

- ignition switch

1шт.

14

A30858

SWITCH

STARTING SWITCH - push button type

1шт.

15

O10463AB

BOOT

1шт.

16

F13008

CLIP - under starter switch (Use F14006 when exhausted)

1шт.

17

F21761

CHOKE CABLE

1шт.

18

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

19

425-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

1шт.

20

F13010

KNOB

- choke

1шт.

21

F82422

LIGHT - oil pressure warning

1шт.

F21950

BULB - red (#431R)

1шт.

F22229

CLIP - under oil light spring

1шт.

22

F84181

LIGHT - generator indicator (Before #8297316)

1шт.

F21950

BULB - red (#431R)

1шт.

22a

F13118

AMMETER - (#8297316 and after)

1шт.

23

A24087

LAMP BASE

LAMP - dash (12 volt)

1шт.

A22349

BULB

- (#1445)

1шт.

24

F82423

GAUGE - temperature

1шт.

25

F84411

HOOD - instrument panel

1шт.

187-1027

SCREW - #10 x 3/8" truss hd. slotted

4шт.

26

F13009

GASKET

MOULDING

1шт.

27

F21575

CARRIAGE BOLT

LEVER - throttle

1шт.

28

14-424

SCREW,Hex, 1/4" - 28 x 1 1/2", Gr 5

BOLT - 1/4" x 1-1/2" N.F. hex.

1шт.

29

131-1

LOCK NUT,1/4"-28, GB

LOCKNUT - 1/4" N.C.

1шт.

30

F21683

KNOB

1шт.

31

A27339

GROMMET

1шт.

32

F22380

PANEL - instrument (#8311400 and after)

1шт.

33

F91864

SWITCH

- ignition and starter

1шт.

34

F13869

X

KNOB - ignition and starter

1шт.

35

F91851

SWITCH - flasher

1шт.

36

F22376

KNOB - flasher switch

1шт.

37

F14006

CLIP - under starter switch (Replaces F13008)

1шт.

38

D39286

GAUGE

KIT - engine hour meter attachment

1шт.

NSS

NOT SOLD SEPARAT

METER - engine hour meter attachment

1шт.

39

D39285

ELECTRICAL WIRE

WIRE - lead (36" long), engine hour meter attachment

2шт.

D39284

KIT

PACKET - mounting hardware, engine hour meter attachment

1шт.

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6-32 N.C. x 1/2", engine hour meter attachment

3шт.

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, , Engine hour meter attachment Int Tooth, #6

3шт.

40

D35079

DAMPER

FLANGE - mounting, engine hour meter attachment

1шт.

41

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6-32 x 1/2" N.C., engine hour meter attachment

3шт.

42

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, , Engine hour meter attachment Int Tooth, #6

3шт.

43

129-5

NUT,#6-32

Engine hour meter attachment #6-32

3шт.
