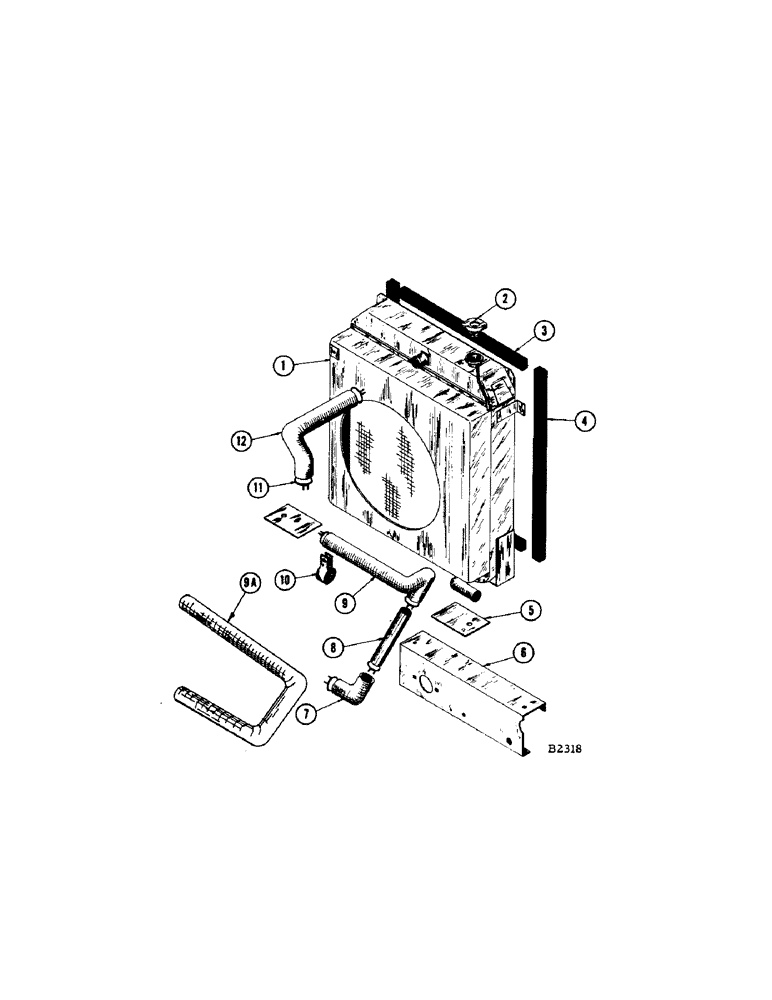

Запчасти Case IH 960 (228[1]) - RADIATOR (10) - ENGINE

1

F94295

RADIATOR - (Replaces F82469 when exhausted)

1шт.

F82469

RADIATOR - (Replaced by F92495 when exh.)

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 3/8"-16 x 1", G2

2шт.

221-12

PLUG,Sq Hd, 1/4"-18

- pipe 1/4"

1шт.

2

F18405

CAP

- radiator (For F82469 radiator)

1шт.

F23120

CAP

- radiator (For F94295 radiator)

1шт.

3

F17180

SEAL - top and bottom of radiator frame

2шт.

4

F17181

SEAL - side

2шт.

5

F17170

PAD - rubber

2шт.

6

F20216

PLATE - support

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

7

F18641

HOSE - elbow, lower radiator outlet (Before #8358001)

1шт.

8

F18643

TUBE - connecting, lower outlet (Before #8358001)

1шт.

9

F18642

HOSE - lower radiator (Before #8358001)

1шт.

9a

F23026

HOSE - lower radiator (#8358001 and after)

1шт.

10

F17933

CLAMP - hose support

1шт.

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

- 5/16" x 2" N.F. hex., nut and L.W.

1шт.

11

214-121

CLAMP,#24, 1 1/2", Spring

- hose

4шт.

12

F18644

HOSE

- upper radiator

1шт.

F19770

THERMOSTAT - (160 degrees F)

1шт.

F19771

THERMOSTAT - (180 degrees F)

1шт.
