Запчасти Case IH 960 (226) - RADITOR SHROUD & SCREEN (10) - ENGINE

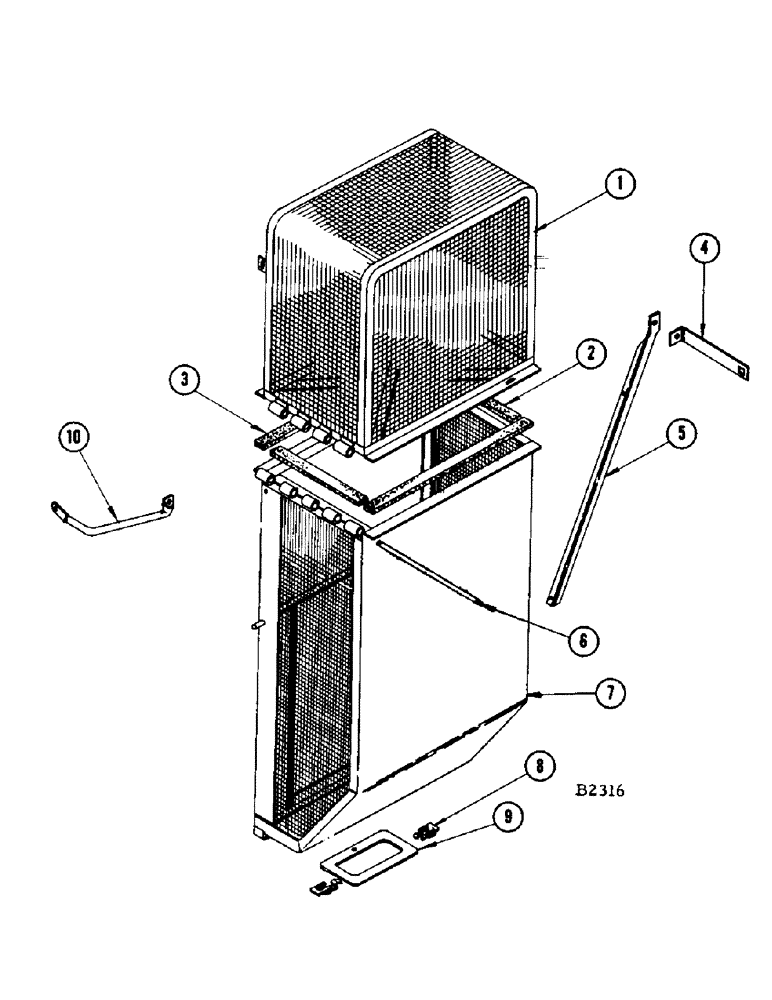

Схема запчастей Case IH 960 - (226) - RADITOR SHROUD & SCREEN (10) - ENGINE
5
2
3
4
9
7
10
6
1
8

Артикул

Название

Примечание

Количество

1

F82004

SCREEN - radiator

1шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

3шт.

2

F17561

SEAL ASSY.

SEAL - front and rear

2шт.

3

F17563

SEAL - R.H. and L.H.

2шт.

4

F18742

STRAP - anchor, air stack

1шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex., nut and L.W.

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

1шт.

5

F20136

BRACE - radiator, front

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

1шт.

6

F17566

ROD - hinge

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

7

F94017

FRAME

SHROUD - radiator (Replaces F83879 when stocks are exh.)

1шт.

F83879

SHROUD

- radiator (Replaced by F94017 when exh.)

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex., nut and L.W.

3шт.

8

F86525

CLIP

- access door

2шт.

151-123

RIVET - 3/16" x 4/16" semi-tubular

2шт.

9

F8077

DOOR - access

1шт.

F22746

PLOW BOLT

SEAL

1шт.

10

F20137

BRACE - rear, radiator

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

and L.W. Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

B17124

KIT

DECAL KIT - 960 combine, decals before no. 8371001

1шт.

321-17

DECAL

PATENT, decals before no. 8371001

1шт.

Also included in F89277 decal kit

1шт.

321-265

X

NAME AND ADDRESS, decals before no. 8371001

1шт.

321-462

DECAL

RICE SPECIAL, decals before no. 8371001

1шт.

321-583

DECAL

SPECIAL, decals before no. 8371001

1шт.

321-584

DECAL

TAILINGS CHECK, decals before no. 8371001

1шт.

Also included in F89277 decal kit

1шт.

321-585

DECAL

ADJUSTMENT - variable speed belt, decals before no. 8371001

1шт.

Also included in F89277 decal kit

1шт.

321-586

DECAL

HYDRAULIC CONTROLS, decals before no. 8371001

1шт.

Also included in F89277 decal kit

1шт.

321-587

DECAL

TAILINGS BELT, decals before no. 8371001

1шт.

Also included in F89277 decal kit

1шт.

321-588

DECAL

CYLINDER SPEED, decals before no. 8371001

1шт.

Also included in F89277 decal kit

1шт.

321-589

DECAL

CONCAVE SETTING, decals before no. 8371001

1шт.

Also included in F89277 decal kit

1шт.

321-662

DECAL

SAFETY - elevated parts, decals before no. 8371001

1шт.

Also included in F89277 decal kit

1шт.

321-610

DECAL

SAFETY, decals before no. 8371001

1шт.

321-789

DECAL

OIL RESERVOIR, declas before no. 8371001

1шт.

Also included in F89277 decal kit

1шт.

321-808

DECAL

EAGLE, decals before no. 8371001

2шт.

321-885

GENERATOR, decals before no. 8371001

1шт.

Also included in F89277 decal kit

1шт.

321-857

MAINTENANCE - electric system, decals before no. 8371001

1шт.

Also included in F89277 decal kit

1шт.

321-925

DECAL

SERVICE CHECK LIST, decals before no. 8371001

1шт.

321-1007

DECAL

TERMINAL BOX CAB, decals before no. 8371001

1шт.

Also included in F89277 decal kit

1шт.

321-902

CASE - rear hood, decals before no. 8371001

1шт.

321-904

CASE - grain bin, decals before no. 8371001

1шт.

321-905

CASE - grain bin, decals before no. 8371001

1шт.

321-941

"960", decals before no. 8371001

3шт.

321-984

ALTERNATOR, decals before no. 8371001

1шт.

Also included in F89277 decal kit

1шт.

F89277

KIT

DECAL KIT - 960 combine, decals no. 8371001 and after

1шт.

321-1269

INDICATOR - control lever, decals no. 8371001 and after

1шт.

321-1415

HYDRAULIC FOLDING DISCHARGE AUGER, decals no. 8371001 and after

1шт.

321-1430

CASE, decals no. 8371001 and after

2шт.

321-1459

"960", decals no. 8371001 and after

2шт.

321-1464

SPECIAL, decals no. 8371001 and after

1шт.

321-1465

RICE SPECIAL, decals no. 8371001 and after

1шт.

321-1466

HYDROSTATIC DRIVE, decals no. 8371001 and after

1шт.

321-1629

SERVICE CHECK LIST, decals no. 8371001 and after

1шт.

321-1630

GOVERNOR - lubrication, decals no. 8371001 and after

1шт.

Выбрано товаров: 68
