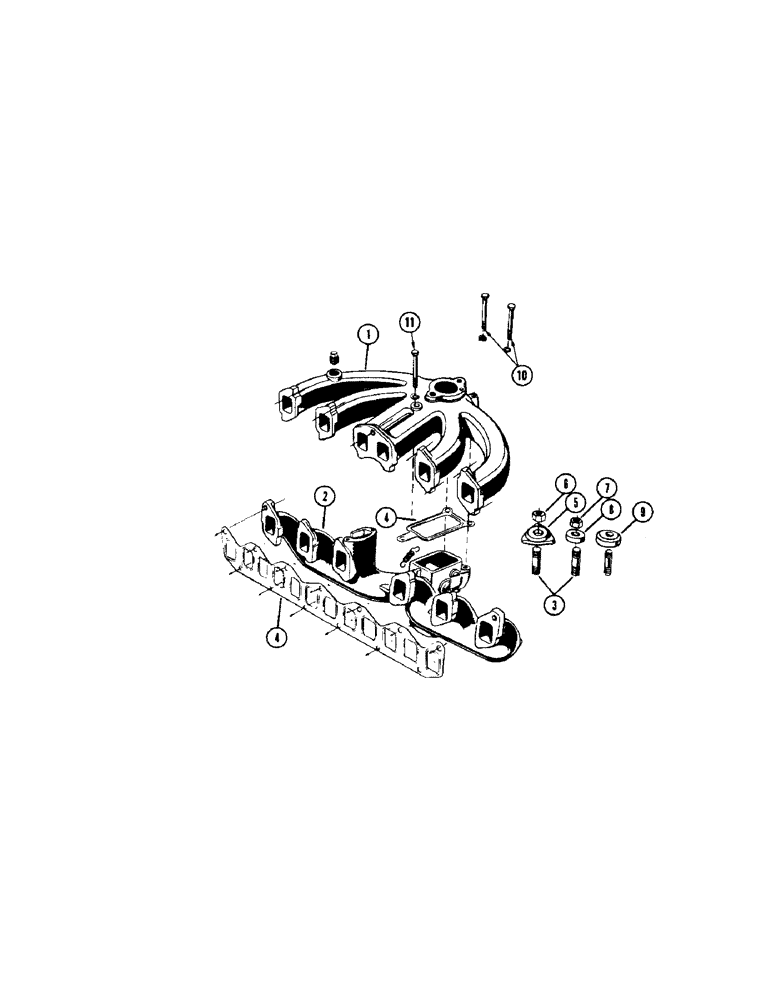

Запчасти Case IH 960 (224) - MANIFOLD (10) - ENGINE

1

F1633

MANIFOLD - intake, gasoline engine

1шт.

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - 3/8" sq. hd. pipe

1шт.

F1662

MANIFOLD - intake, L.P. engine

1шт.

2

F83584

TUBE ASSY.

MANIFOLD - exhaust, gasoline engine

1шт.

F83633

MANIFOLD - exhaust, L.P. engine

1шт.

3

F19791

STUD - intake and exhaust manifold

13шт.

4

F83011

GASKET

KIT - set of manifold gaskets

1шт.

5

F19794

WASHER - stud w/lugs

8шт.

6

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

11шт.

7

F19795

NUT - stud

2шт.

F19796

WASHER - stud

2шт.

9

F19793

WASHER - stud

3шт.

F21835

BAFFLE - (L.P. engine) Not shown

1шт.

F21836

CARRIAGE BOLT

SPACER - (L.P. engine) Not shown

1шт.

10

13-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

- 5/16" x 4" N.C. hex.

2шт.

11

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- 5/16" x 3-1/4" N.C. hex.

1шт.
