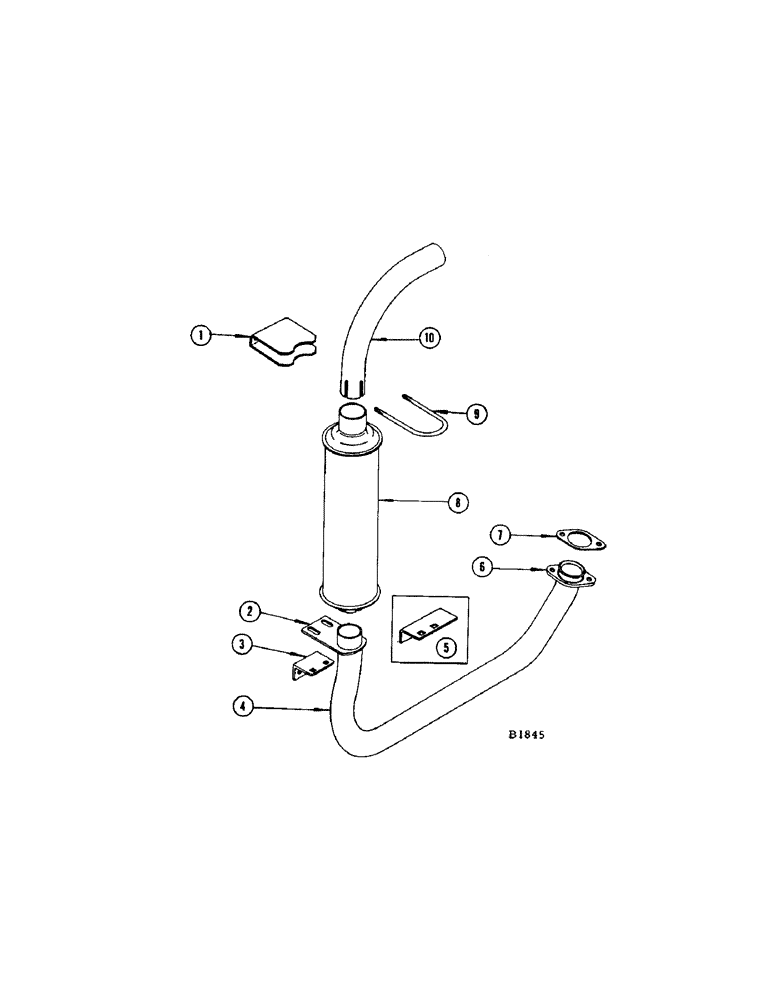

Запчасти Case IH 960 (224[1]) - MUFFLER AND EXHAUST PIPE (10) - ENGINE

1

F20279

CLAMP - muffler

1шт.

*

A27077

CLAMP

- muffler (Bagging platform)

1шт.

2

F18683

BRACKET - support, tail pipe, Serial Range: (Muffler-manifold)

1шт.

*

BOLT - 5/16" x 3/4" N.C. rhd. sq. nk. (11-512)

2шт.

*

NUT - 5/16" (25-105) L.W. (92-5)

2шт.

3

F19588

ANGLE - support, exhaust pipe (Grain combine) See ref. 5

1шт.

*

BOLT - 5/16" x 3/4" N.F. hex. (14-512) Nut (25-115)

2шт.

*

LOCKWASHER - 5/16" (92-5)

2шт.

4

F18680

EXHAUST - tail pipe

1шт.

5

F20303

ANGLE - support, exhaust pipe (960 special)

1шт.

*

BOLT - 5/16" x 3/4" N.F. hex. (14-512) Nut (25-115)

2шт.

*

LOCKWASHER - 5/16"

2шт.

6

F1582

FLANGE

1шт.

*

BOLT - 7/16" x 1-3/4" N.C. hex. (13-728) Nut (25-107)

2шт.

*

LOCKWASHER - 7/16" (92-7)

2шт.

7

F18681

GASKET

1шт.

9

F20285

"U" BOLT - ref. 1 clamp

1шт.

*

NUT - 5/16" N.C. hex. (25-105) L.W. (92-5)

2шт.

*

WASHER - 5/16" flat (195-21)

2шт.

10

F20278

PIPE - exhaust

1шт.

*

F21873

CARRIAGE BOLT

BRACKET - support, muffler bagger

1шт.

F21812

CARRIAGE BOLT

SUPPORT - muffler (Bagger)

1шт.
