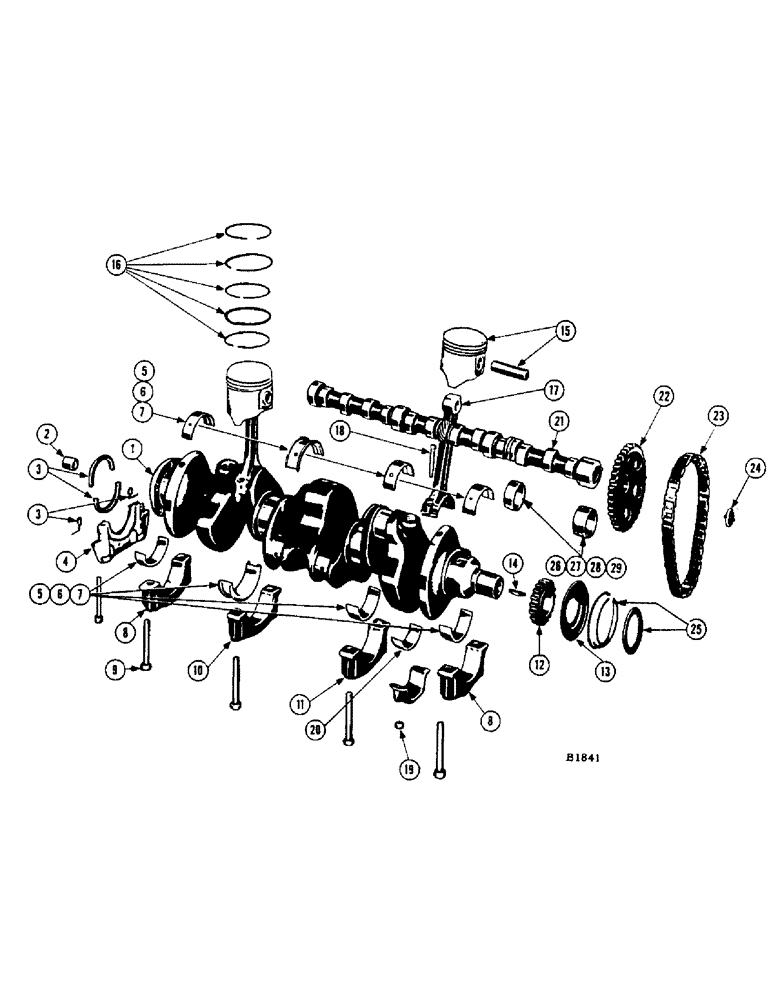

Запчасти Case IH 960 (216) - CRANKSHAFT (10) - ENGINE

1

F20550

CRANKSHAFT

- (Before #8339058) Use with F83010 & F91911

1шт.

F22600

CRANKSHAFT - (#8339058 and after) Use with F94186

1шт.

2

F19702

BUSHING

- pilot (For both F20550 and F22600)

1шт.

3

F82958

KIT - crankshaft oil seals

1шт.

4

F1623

RETAINER - bearing seal, rear

1шт.

5

F19705

PACKAGE

LINERS - front bearing, top and bottom half (Standard)

2шт.

F19706

LINERS - front bearing, top and bottom half (.001" undersize)

2шт.

F19707

LINERS - front bearing, top and bottom half (.002" undersize)

2шт.

F21825

CARRIAGE BOLT

LINERS - front bearing, top and bottom half (.003" undersize)

2шт.

F19708

CYLINDER END CAP

LINERS - front bearing, top and bottom half (.010" undersize)

2шт.

F21826

CARRIAGE BOLT

LINERS - front bearing, top and bottom half (.012" undersize)

2шт.

6

F19709

PACKAGE

LINERS - center bearing, top and bottom half (Standard)

1шт.

F19710

LINERS - center bearing, top and bottom half (.001" undersize)

1шт.

F19711

LINERS - center bearing, top and bottom half (.002" undersize)

1шт.

F19712

LINERS - center bearing, top and bottom half (.010" undersize)

1шт.

F21827

BOLT

LINERS - center bearing, top and bottom half (.012" undersize)

1шт.

7

F19713

BEARING

LINERS - rear bearing top and bottom half (Standard)

1шт.

F19714

LINERS - rear bearing, top and bottom half (.001" undersize)

1шт.

F19715

LINERS - rear bearing, top and bottom half (.002" undersize)

1шт.

F21828

CARRIAGE BOLT

LINERS - rear bearing, top and bottom half (.003" undersize)

1шт.

F19716

LINERS - rear bearing, top and bottom half (.010" undersize)

1шт.

F21829

LINERS - rear bearing, top and bottom half (.012" undersize)

1шт.

8

F19717

CAP - front bearing 1 and 2

2шт.

9

F19720

SCREW - bearing caps (1/2" x 3-1/8")

8шт.

10

F19719

CAP - rear bearing

1шт.

11

F19718

CAP - center bearing

1шт.

12

F1622

DRIVEN SPROCKET

SPROCKET - (19T) Crankshaft

1шт.

13

F19703

SLINGER - oil

1шт.

14

126-41

KEY - 3/16" x 2-1/8" Woodruff, ref. 12, Serial Range: sprocket-crankshaft

1шт.

15

F82974

PISTON - with pin (Standard), pistons and connecting rods

6шт.

F82977

PISTON - with pin (.005" oversize), pistons and connecting rods

6шт.

F82978

PISTON

- with pin (.020" oversize), pistons and connecting rods

6шт.

F82979

PISTON - with pin (.040" oversize), pistons and connecting rods

6шт.

16

F82987

SET

RINGS - set of piston (Standard to .009 oversize), pistons and connecting rods

1шт.

F82988

SET

RINGS - set of piston (.020" to .029" oversize), pistons and connecting rods

1шт.

F82989

RINGS - set of piston (.040" to .049" oversize), pistons and connecting rods

1шт.

17

F82973

ROD

- connecting (Includes bearing cap), pistons and connecting rods

6шт.

18

F19737

BOLT - bearing cap, pistons and connecting rods

12шт.

19

F19738

NUT - bearing cap bolt, pistons and connecting rods

12шт.

20

F19739

LINERS - bearing, top and bottom half (Standard), pistons and connecting rods

6шт.

F19740

LINERS - bearing, top and bottom half (.001" undersize), pistons and connecting rods

6шт.

F19741

LINERS - bearing, - top and bottom half (.002" undersize), pistons and connecting rods

6шт.

F19742

LINERS - bearing, top and bottom half (.003" undersize), pistons and connecting rods

6шт.

F19743

LINERS - bearing, top and bottom half (.010" undersize), pistons and connecting rods

6шт.

F19744

LINERS - bearing, top and bottom half (.012" undersize), pistons and connecting rods

6шт.

21

F20551

CAMSHAFT

1шт.

22

F1624

SPROCKET - (38T) Camshaft

1шт.

23

F19732

CHAIN - timing, camshaft

1шт.

F20517

INDICATOR - timing (Not shown) Before #8311400, camshaft

1шт.

24

F19722

WASHER - camshaft sprocket retaining screw, camshaft

1шт.

25

F19735

SEAL

OIL SEAL - timing chain cover, camshaft

1шт.

26

F19723

BEARING - front no. 1 (Standard), camshaft

1шт.

F19724

BEARING - front no. 1 (.010" oversize), camshaft

1шт.

27

F19725

BEARING

- front no. 2 (Standard), camshaft

1шт.

F19726

BEARING - front no. 2 (.010" oversize), camshaft

1шт.

28

F19727

BEARING

- center (Standard), camshaft

1шт.

F19728

BEARING - center (.010" oversize), camshaft

1шт.

29

F19729

BEARING

- rear (Standard), camshaft

1шт.

F19730

BEARING - rear (.010" oversize), camshaft

1шт.

F19731

PLUG - rear camshaft bearing (Not shown), camshaft

1шт.
