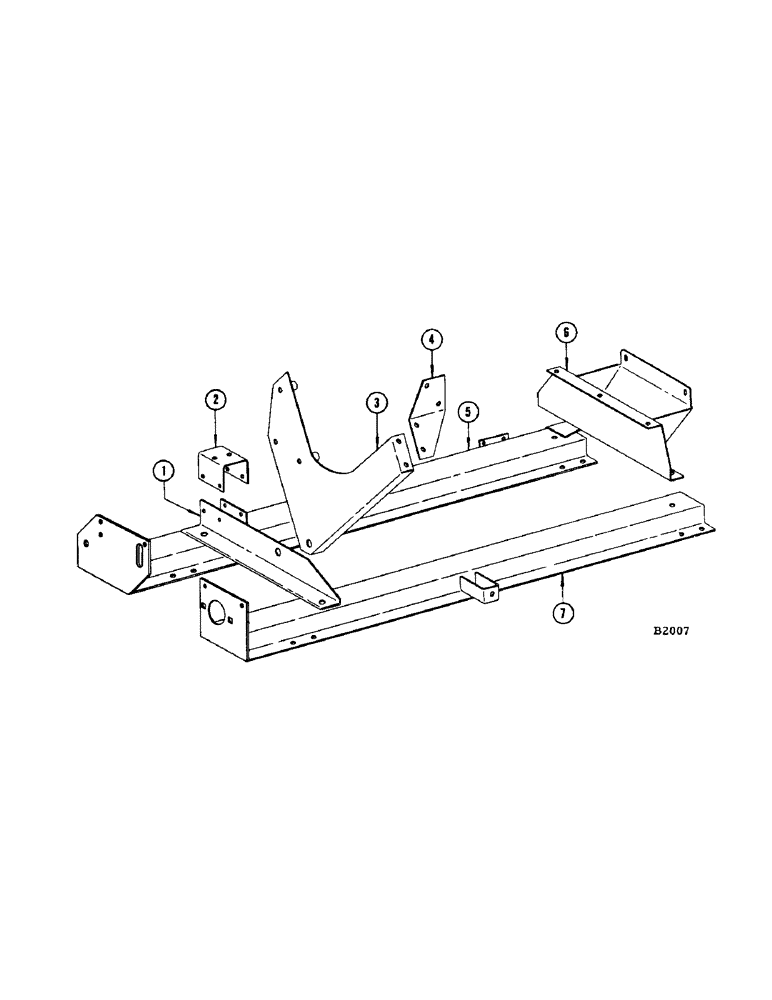

Запчасти Case IH 960 (210) - ENGINE MOUNTING RAILS (10) - ENGINE

1

F18593

SUPPORT - front

1шт.

BOLT - 1/2" x 1" N.F. hex. (14-816) Nut (25-118) L.W. (92-8)

2шт.

2

F18671

BRACKET - hydraulic pump support

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) Nut (25-115)

4шт.

LOCKWASHER - (92-5)

4шт.

3

F83275

SUPPORT - R.H.

1шт.

BOLT - 5/16" x 2-1/4" N.C hex. (13-536) L.W. (92-5)

3шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) Nut (25-116) L.W. (92-6)

2шт.

BOLT - 5/8" x 1-1/4" N.F. hex. (14-1020) Nut (25-1110)

1шт.

LOCKWASHER - (92-10)

1шт.

4

F20203

PLATE - front support

1шт.

BOLT - 7/16" x 1" N.C. hex. (13-716) L.W. (92-7)

2шт.

5

F83217

RAIL - rear (Before #8311400)

1шт.

F84938

RAIL - rear (#8311400 and after)

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) Nut (25-116) L.W. (92-6)

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) Nut (25-115)

1шт.

LOCKWASHER - (95-5)

1шт.

6

F82450

SUPPORT - L.H.

1шт.

BOLT - 1/2" x 3/4" N.C. hex. (13-812) L.W. (92-8)

2шт.

BOLT - 5/16" x 7/8" N.C. hex. (13-514) L.W. (92-5)

3шт.

WASHER - flat (95-5)

3шт.

7

F83216

RAIL - front

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) Nut (25-116) L.W. (92-6)

1шт.
