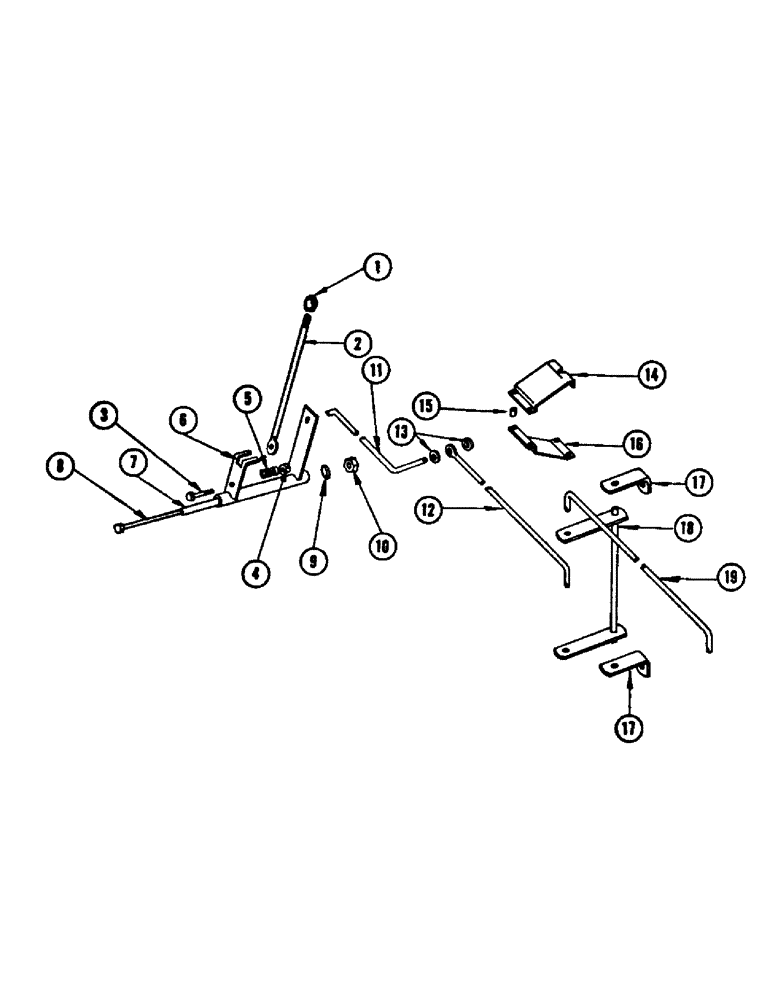

Запчасти Case IH 960 (182) - THROTTLE CONTROL LINKAGE, BAGGER COMBINE (10) - ENGINE

1

F21683

KNOB

- lever

1шт.

2

F21575

CARRIAGE BOLT

LEVER - throttle

1шт.

3

14-424

SCREW,Hex, 1/4" - 28 x 1 1/2", Gr 5

BOLT - 1/4" x 1-1/2" N.F. hex.

1шт.

195-18

WASHER,1/4"

- flat 1/4"

1шт.

4

131-1

LOCK NUT,1/4"-28, GB

NUT - 1/4" N.F. - ESNA

1шт.

5

A30370

SPRING - lever return

1шт.

6

F84368

ARM - throttle control

1шт.

7

F12984

SPACER - arm

1шт.

8

14-4120

BOLT - 1/4" x 7-1/2" N.F. hex.

1шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

11

F18914

SCREW

ROD - front throttle

1шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

12

F18915

ROD - center throttle

1шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

13

O4901CS

WASHER

2шт.

14

F18919

SLIDE - upper, throttle rod

1шт.

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- 1/4" x 3/4" N.F. hex., nut and L.W.

2шт.

15

O2998BF

SPACER

2шт.

16

F18920

SCREW

SLIDE - lower, throttle rod

1шт.

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- 1/4" x 3/4" N.F. hex., nut and L.W.

1шт.

111-117

BOLT - 1/4" x 5-1/2" rhd. sq. nk., nut and L.W. Short NK, 1/4"-20 x 5 1/2", G2

1шт.

17

F18918

SCREW

BRACKET - throttle bellcrank

2шт.

114-106

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

- 5/16" x 1-3/4" N.F. hex., nut and L.W.

2шт.

18

F82662

BELLCRANK - throttle

1шт.

19

F21871

CARRIAGE BOLT

ROD - rear

1шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.
