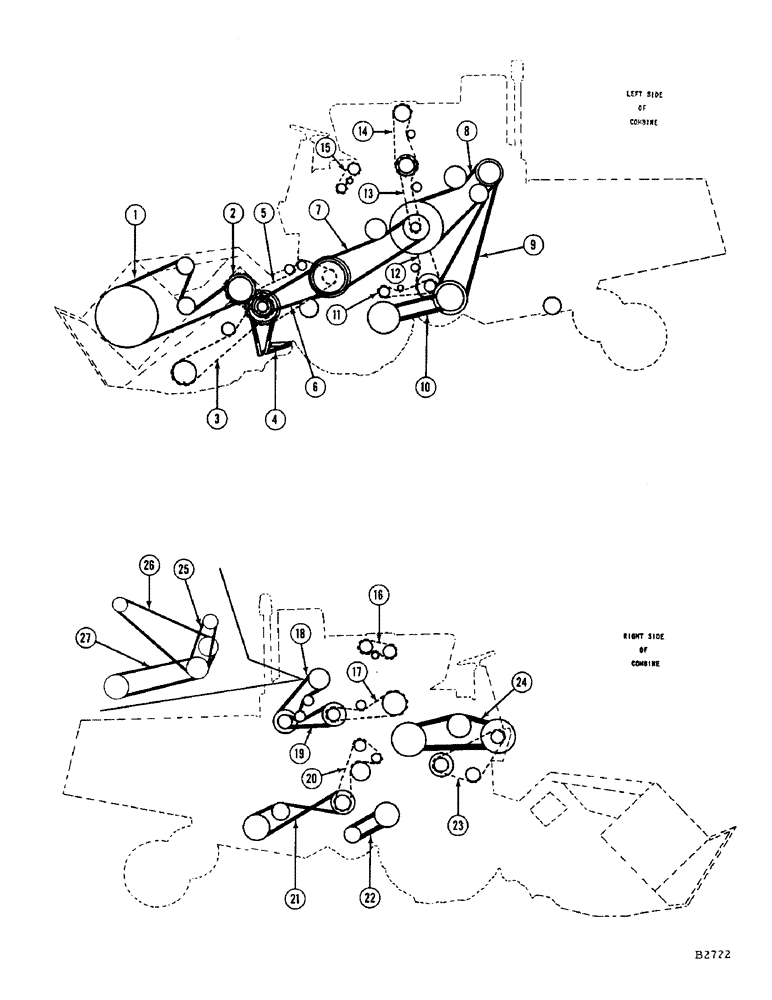

Запчасти Case IH 960 (003A) - BELT & CHAIN DRIVE REFERENCE (05) - SERVICE & MAINTENANCE

1

F16633

BELT

Final Reel Drive

1шт.

1

O4402CS

V-BELT 170.00" L, Reel drive (Fixed sheave reel drive - specials) 170.00" L

1шт.

2

F17456

X

CHAIN - reel jackshaft drive

1шт.

2

F17924

X

CHAIN - reel jackshaft (Fixed sheave reel drive - specials)

1шт.

3

F17450

X

CHAIN - header auger drive

1шт.

4

F16867

BELT

Sickle Drive, 10 Foot Header

1шт.

4

F9659

V-BELT

Sickle Drive, 13 Foot Header

1шт.

4

F19939

BELT

- sickle drive. 14 ft.

1шт.

5

F18828

X

CHAIN - header jackshaft drive (Grain combine)

1шт.

5

F20273

CHAIN - header jackshaft drive (960 special combine)

1шт.

6

F19498

V-BELT

Feeder Rake Drive, Grain Combine

1шт.

6

F18971

BELT

- feed rake drive (960 special combine)

1шт.

7

F17460

BELT

- header drive (Replaces by F22398 when exh.)

1шт.

7

F22398

BELT

Header Drive, Replaces F17460

1шт.

8

CASF20061

BELT

- beater drive (Before #8358001)

1шт.

8

F23028

V-BELT,0.78" W, 2 Ribs

Beater Drive, Serial No. 8358001 and After 0.78" W, 2 Ribs

1шт.

9

F20033

BELT

Primary Drive, Before Serial No. 8358001

1шт.

9

NLS

NO LONGER SERVICED

- primary drive (#8358001 and after)

1шт.

9

F20854

BELT

- primary drive (Slow ground speed attach) (Before #8358001)

1шт.

10

F20032

V-BELT

Secondary Variable Speed Traction Drive

1шт.

11

F16079

X

CHAIN - fan drive jackshaft

1шт.

12

F16228

X

CHAIN - rocker arm crankshaft drive

1шт.

13

N3412

X

CHAIN - grain elevator drive

1шт.

14

F21755

X

CHAIN - leveling auger and elevator drive (Grain combine)

1шт.

14

F21849

X

CHAIN - leveling auger and elevator drive (960 special)

1шт.

15

F17105

X

CHAIN - tailings elevator discharge auger drive

1шт.

16

N4034

X

CHAIN - grain bin elevator drive (Grain combine)

1шт.

16

N4843

X

CHAIN - grain bin elevator drive (960 special)

1шт.

17

F20142

X

CHAIN - unloading auger drive (Grain combine)

1шт.

17

F20220

CHAIN - unloading auger drive (960 special)

1шт.

18

F22013

BELT

Bin Unloader Primary Drive, Replaces F20135

1шт.

18

F20135

X

BELT - bin unloader primary drive (Replaced by F22013 when exhausted)

1шт.

19

O2578FH

X,0.66" W 57.99" L

BELT 0.66" W x 57.99" L, Bin unloader secondary drive (Before #8311400), Replaced by F22765 when stock exh.

1шт.

F22765

BELT

- bin unloader secondary drive (Before #8311400) Replaces O2578FH when stock exh.

1шт.

19

F19581

BELT

- bin unloader secondary drive (#8311400 and after) exh. then use F23261

1шт.

F23261

V-BELT,54.00" L

Bin Unloader Secondary Drive, Serial No. 8311400 and After, Replaces F19581 When Exhausted 54.00" L

1шт.

20

F18554

CHAIN - strawwalker drive

1шт.

21

F16447

V-BELT

Tailings Auger Drive

1шт.

22

F16080

V-BELT

Variable Speed, Fan Drive

1шт.

23

F18520

X

CHAIN - cylinder drive (Chain drive option)

1шт.

23

F22009

X

CHAIN - cylinder drive (Variable speed cylinder drive option)

1шт.

24

F21990

BELT

Cylinder Drive,Variable Speed Cylinder Drive Attachment

1шт.

25

F20128

BELT

- governor drive (Before #8358001)

1шт.

25

F13894

BELT

- governor drive (#8358001 and after)

1шт.

26

F22218

V-BELT

BELT- engine fan drive

1шт.

27

F18677

X

BELT - hydraulic pump drive (Replaced by F22170 when exh.)

1шт.

27

F22170

BELT

- hydraulic pump drive (Before #8334601)

1шт.

27

F22948

BOLT

BELT - hydraulic pump drive (#8334601 and after) Replaces F22503 when stocks are exhausted

1шт.

E2586S

V-BELT

BELT - strawspreader drive

1шт.

R16744

BELT - rear roller drive (Pick-up attachment)

1шт.

F16745

V-BELT

BELT - jackshaft drive (Pick-up attachment)

1шт.

F20129

V-BELT

BELT - fan, pump and generator

1шт.

F22597

V-BELT

BELT - strawchopper drive, rear

1шт.

B12470

CHAIN (AG)

CHAIN SECTION - (Contains 50 links #40 roller chain)

1шт.

B12471

CHAIN (AG)

CHAIN SECTION - (Contains 20 links #40 roller chain)

1шт.

B12472

CHAIN (AG)

CHAIN SECTION - (Contains 10 links #40 roller chain)

1шт.

B12473

CHAIN (AG)

CHAIN SECTION - (Contains 6 links #40 roller chain)

1шт.

B12474

CHAIN (AG)

CHAIN SECTION - (Contains 50 links #50 roller chain)

1шт.

B12475

CHAIN (AG)

CHAIN SECTION - (Contains 20 links #50 roller chain)

1шт.

B12476

CHAIN (AG)

CHAIN SECTION - (Contains 10 links #50 roller chain)

1шт.

B12477

CHAIN (AG)

CHAIN SECTION - (Contains 6 links #50 roller chain)

1шт.

B12478

CHAIN SECTION - (Contains 50 links #60 roller chain)

1шт.

B12479

CHAIN (AG)

CHAIN SECTION - (Contains 20 links #60 roller chain)

1шт.

B12480

CHAIN (AG)

CHAIN SECTION - (Contains 10 links #60 roller chain)

1шт.

B12481

CHAIN SECTION - (Contains 6 links #60 roller chain)

1шт.

B12482

CLIP

- lock spring for #60 connecting links

1шт.

B12483

CHAIN SECTION - (Contains 20 links #CA2040 roller chain)

1шт.

B12484

CHAIN SECTION - (Contains 10 links #CA2040 roller chain)

1шт.

B12485

CHAIN SECTION - (Contains 6 links #CA2040 roller chain)

1шт.

B12486

CHAIN (AG)

CHAIN SECTION - (Contains 20 links #A2040 roller chain)

1шт.

B12487

CHAIN SECTION - (Contains 10 links #A2040 roller chain)

1шт.

B12488

CHAIN (AG)

CHAIN SECTION - (Contains 6 links #A2040 roller chain)

1шт.

B12501

LINK

- connecting, #40 roller chain

1шт.

B12502

OFFSET LINK

LINK - offset, #40

1шт.

B12503

ROLLER

LINK - roller, #40

1шт.

B12504

CLIP - lock spring for #40 connecting link

1шт.

B12505

LINK

- connecting, #50 roller chain

1шт.

B12506

LINK

- offset, #50

1шт.

B12507

CHAIN (AG)

LINK - roller, #50

1шт.

B12508

CLIP

- lock spring for #50 connecting link

1шт.

B12509

DRAG LINK

LINK - connecting, #60 roller chain

1шт.

B12510

CHAIN LINK

LINK - offset, #60

1шт.

B12511

LINK

- roller, #60

1шт.

B12512

CONNECTOR, ELEC

LINK - connecting, #CA2040 roller chain

1шт.

B12513

LINK - roller, #CA2040

1шт.

B12514

LINK

- connecting, #A2040 roller chain

1шт.

B12515

LINK

- offset, #A2040

1шт.

B12516

LINK

- roller, #A2040

1шт.

B13030

HARDWARE

ROLLER CHAIN - 10 ft. roll #40 (240 links)

1шт.

B13031

CHAIN (AG)

ROLLER CHAIN - 10 ft. roll #50 (192 links)

1шт.

B13032

CHAIN

ROLLER CHAIN - 10 ft. roll #60 (160 links)

1шт.

B15926

LINK

STEEL CHAIN - 10 ft. roll #25

1шт.

B15936

CHAIN (AG)

STEEL CHAIN - 10 ft. roll #55

1шт.

B17074

CHAIN (AG)

CHAIN SECTION - (Contains 20 links #41 roller chain)

1шт.

B17076

CHAIN (AG)

CHAIN SECTION - (Contains 6 links #41 roller chain)

1шт.

B17077

LINK

- connecting, #41 roller chain

1шт.

B17078

LINK

- offset, #41

1шт.

B17079

LINK

- roller, #41

1шт.

B17102

CHAIN (AG)

ROLLER CHAIN - 10 ft. roll #CA2040 (120 links)

1шт.

B17103

CHAIN (AG)

ROLLER CHAIN - 10 ft. roll #A2040 (120 links)

1шт.

F8655

X

LOWER ROLLER DRIVE, Pickup Attach. (53 riveted, 3 offset, 1 conn.) Use 2-B12483, 2-B12485, 1-B12512, 1-B12513, 3-B12515 or cut from B17102 #CA2040, drive chains

1шт.

F16079

X

FAN DRIVE JACKSHAFT (45 riveted, 1 offset, 1 conn.) Use 2-B12486, 1-B12488, 1-B12515 or cut from B17103 #A2040, drive chains

1шт.

F16228

X

ROCKER ARM CRANKSHAFT (123 riveted, 1 conn.) Use 2-B12474, 4-B12477 or cut from B13031 #50, drive chains

1шт.

F16252

X

CYLINDER - chain extension #60, drive chains

2шт.

F17105

X

TAILINGS DISCHARGE AUGER (27 riveted, 1 offset, 1 conn.) Use 1-B12486, 1-B12488, 1-B12514, 1-B12515, 1-B12516 or cut from B17103 #A2040, drive chain

1шт.

F17450

X

HEADER AUGER DRIVE (109 riveted, 2 offset, 1 roller, 2 conn.) Use 2-B12474, 1-B12476, 1-B12505, 2-B12506, 1-B12507 or cut from B13031 #50, drive chain

1шт.

F17456

X

REEL JACKSHAFT (59 riveted) Use 1-B12470, 1-B12473, 1-B12501, 1-B12502, 1-B12503 or cut from B13030 #40, drive chain

1шт.

F17484

X

EXTENSION, slow reel speed (13 riveted, 1 conn.) Use 1-B12472, 2-B12501, 2-B12503 or cut from B13030 #40, drive chain

1шт.

F17514

X

EXTENSION, reel drive (3 riveted) Use 1-B12501, 1-B12502, 1-B12503 or cut from B13030 #40, drive chain

1шт.

F17924

X

REEL JACKSHAFT, 960 Special (17 riveted) Use 1-B12472, 1-B12473, 1-B12502 or cut from B13030 #40, drive chain

1шт.

F18520

X

CHAIN DRIVE CYLINDER #60, drive chain

1шт.

F18554

STRAWWALKER CRANKSHAFT (89 riveted, 1 offset, 1 conn.) Use 1-B12474, 2-B12475, 1-B12506 or cut from B13031 #50, drive chain

1шт.

F18828

X

MAIN HEADER DRIVE JACKSHAFT (139 riveted, 1 offset, 1 roller, 2 conn.) Use 2-B12474, 2-B12475, 1-B12505, 1-B12506, 1-B12507 or cut from B13031 #50, drive chain

1шт.

F20142

X

BIN AUGER DRIVE (105 riveted, 1 offset, 1 conn.) Use 2-B12474, 1-B12477, 2-B12506 or cut from B13031 #50, drive chain

1шт.

F20220

BIN AUGER DRIVE (135 riveted, 1 conn.) Use 2-B12474, 1-B12475, 1-B12476, 1-B12477 or cut from B13031 #50, drive chain

1шт.

F20273

MAIN HEADER DRIVE JACKSHAFT (173 riveted, 1 roller, 1 conn.) Use 3-B12474, 1-B12475, 1-B12477 or cut from B13031 #50, drive chain

1шт.

F20353

X

SCOURKLEEN DRIVE (69 riveted, 5 offset, 2 connl., 1 roller) Use 3-B17074, 1-B17075, 5-B17078, 1-B17077, 1-B17079 #41, drive chain

1шт.

F20444

X

SCOURKLEEN DRIVE (77 riveted, 3 offset, 2 conn., 1 roller) Use 1-B12470, 1-B12471, 1-B12472, 3-B12502 or cut from B13030 #40, drive chain

1шт.

F20964

X

GRAIN ELEVATOR DRIVE (61 riveted, 1 offset, 1 conn.) Use 3-B12486, 1-B12514, 1-B12515, 1-B12516 or cut from B17103 #A2040, drive chain

1шт.

F21755

X

GRAIN ELEVATOR DRIVE (53 riveted, 1 conn.) Use 2-B12486, 1-B12487, 2-B12514, 2-B12516 or cut from B17103 #A2040, drive chain

1шт.

F21849

X

GRAIN ELEVATOR DRIVE (91 riveted, 1 offset, 1 conn.) Use 4-B12486, 1-B12487, 1-B12515, 1-B12516, 1-B12514 or cut from B17103 #A2040, drive chain

1шт.

F22009

X

VARIABLE SPEED CYLINDER DRIVE #60, drive chain

1шт.

F22010

X

EXTENSION - V.S. cylinder drive #60, drive chain

1шт.

F60261

X

SCOURKLEEN ELEVATOR (76 riveted, 1 conn.) Use 1-B12470, 1-B12471, 1-B12473, 1-B12502 or cut from B13030 #40, drive chain

1шт.

F84943

CHAIN - grain elevator drive (183 riveted, 1 offset, 1 conn.) Use 3-B12470, 1-B12472, 4-B12473 chains and 1-B12502 offset link #40 roller chain or cut from B13030, drive chain

1шт.

F84937

CHAIN - grain elevator drive (105 riveted, 1 offset, 1 conn.) Use 2-B12470, 1-B12473 chain and 1-B12502 offset link #40 roller chain or cut from B13030, drive chain

1шт.

N3412

X

GRAIN ELEVATOR JACKSHAFT (139 riveted, 1 conn.) Use 2-B12470, 2-B12471 or cut from B13030 #40, drive chains

1шт.

N4034

X

LEVELING AUGER (77 riveted, 1 conn.) Use 1-B12470, 1-B12471, 1-B12473, 1-B12501, 1-B12503 or cut from B13030 #40, drive chains

1шт.

N4843

X

LEVELING AUGER (73 riveted, 1 offset, 1 conn.) Use 1-B12470, 1-B12471, 2-B12501, 1-B12502, 2-B12503 or cut from B13030 #40, drive chain

1шт.

F11165

RUBBER FLIGHT

FLIGHT - rubber, no. 55 chain and flight assemblies, 5 inch

1шт.

NSS

NOT SOLD SEPARAT

FLIGHT - steel (See F79708), no. 55 chain and flight assemblies, 5 inch

1шт.

F79708

STEEL FLIGHT

CHAIN AND STEEL FLIGHT - special (Consists of chain and 1 flight), no. 55 chain and flight assemblies, 5 inch

1шт.

F79799

RUBBER FLIGHT

CHAIN AND FLIGHT - (Consists of chain and 1 flight), no. 55 chain and flight assemblies, 5 inch

1шт.

F86419

CHAIN AND FLIGHT - (Consists of chain and 2 flights), no. 55 chain and flight assemblies, 5 inch

1шт.

F86421

CHAIN AND FLIGHT - (Consists of chain and 5 flights), no. 55 chain and flight assemblies, 5 inch

1шт.

F86423

CHAIN (AG)

CHAIN AND FLIGHT - (Consists of chain and 10 flights), no. 55 chain and flight assemblies, 5 inch

1шт.

NSS

NOT SOLD SEPARAT

FLIGHT - rubber (See F77894), 7 inch

1шт.

F11479

FLIGHT - steel (See F79706), 7 inch

1шт.

F77894

CHAIN AND FLIGHT - (Consists of chain and 1 flight), 7 inch

1шт.

F78446

CHAIN AND FLIGHT - (Consists of chain and 2 flights), 7 inch

1шт.

F79706

CHAIN AND STEEL FLIGHT - special (Consists of chain and 1 flight), 7 inch

1шт.

F86420

CHAIN AND FLIGHT - (Consists of chain and 5 flights), 7 inch

1шт.

F86422

CHAIN AND FLIGHT - (Consists of chain and 10 flights), 7 inch

1шт.

F86424

CHAIN AND FLIGHT - (Consists of chain and 20 flights), 7 inch

1шт.

F88527

CHAIN AND FLIGHT, no. CA550 chain and flight assemblies, 5 inch

1шт.

F22711

PLOW BOLT

FLIGHT - (Rubber), no. CA550 chain and flight assemblies, 5 inch

1шт.

NSS

NOT SOLD SEPARAT

CHAIN - (Consists of 1 attaching and 2 roller links), no. CA550 chain and flight assemblies, 5 inch

1шт.

F54319

LINK

- connecting, no. CA550 chain and flight assemblies, 5 inch

1шт.

F10673

LINK

- offset, no. CA550 chain and flight assemblies, 5 inch

1шт.

F10818

LINK

- roller, no. CA550 chain and flight assemblies, 5 inch

1шт.

F92261

PINS AND COTTERS - Pkg. of 25, no. CA550 chain and flight assemblies, 5 inch

1шт.

F88528

CHAIN AND FLIGHT, no. CA550 chain and flight assemblies, 5 inch

1шт.

F14984

FLIGHT - (Rubber), no. CA550 chain and flight assemblies, 5 inch

1шт.

NSS

NOT SOLD SEPARAT

CHAIN - (Consists of 1 attaching and 2 roller links), no. CA550 chain and flight assemblies, 5 inch

1шт.

F88528

CHAIN AND FLIGHT, 7 inch

1шт.

F14985

FLIGHT - (Steel), 7 inch

1шт.

NSS

NOT SOLD SEPARAT

CHAIN - (Consists of 1 attaching and 2 roller links), 7 inch

1шт.

F54319

LINK

- connecting, 7 inch

1шт.

F10673

LINK

- offset, 7 inch

1шт.

F10818

LINK

- roller, 7 inch

1шт.

F92261

PINS AND COTTERS - Pkg. of 25, 7 inch

1шт.
