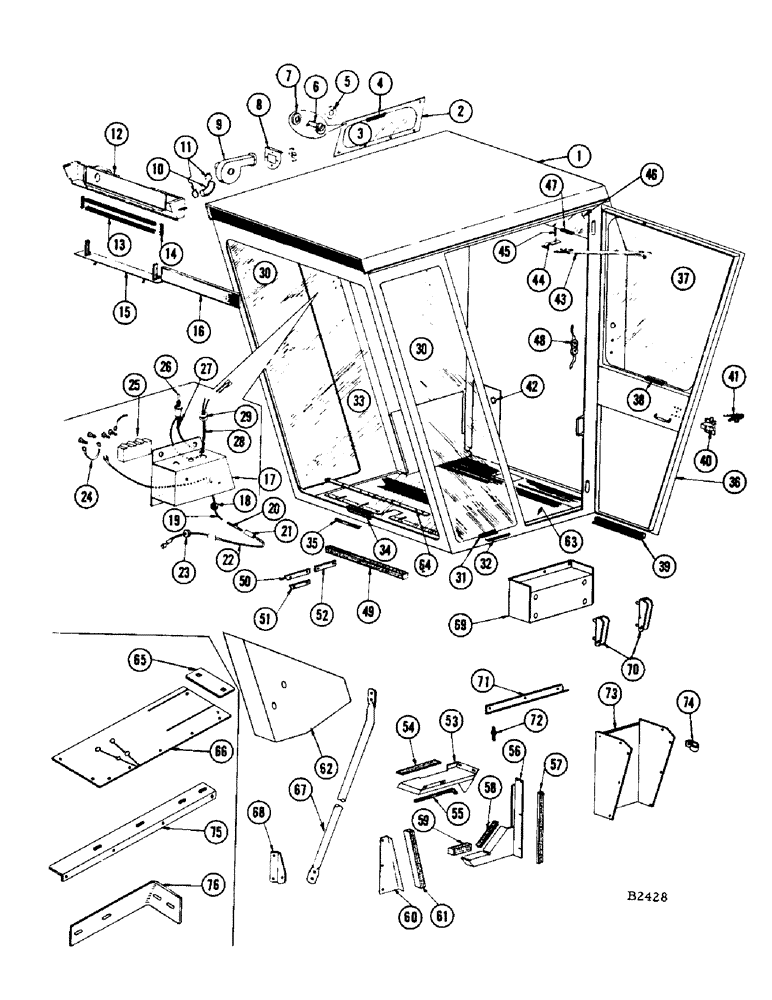

Запчасти Case IH 960 (202) - OPERATORS CAB, BEFORE NO. 8311400 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F84685M

CAB - operator's (Grain combine) Machinery item

1шт.

F84686M

CAB - operator's (960 special combine) Machinery item

1шт.

2

F22099

WINDOW - right side rear

1шт.

3

F22101

GLASS - right side rear

1шт.

4

F22108

GLASS

MOULDING - right side rear glass (60")

1шт.

F22107

FILLER STRIP - right side rear glass (60")

1шт.

5

F22110

RUBBER

1шт.

6

F22109

FASTENER - ring head

2шт.

7

F21319

X

RETAINER - fastener

2шт.

8

F22123

BRACKET - blower support

1шт.

9

F84816

BLOWER - 12 volt

1шт.

10

F84817

NOSE - air duct

1шт.

11

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose (4")

2шт.

12

F84821

DUCT - blower air

1шт.

13

F22124

SEAL

2шт.

14

F22117

SEAL

2шт.

15

F84819

FRAME - filter

1шт.

16

F84818

FILTER

- blower

1шт.

17

F84812

BOX - terminal

1шт.

18

F21348

GROMMET - front wire

1шт.

19

F84235

WIRE - front, terminal box to ignition

1шт.

20

F21352

TERMINAL

1шт.

F84287

WIRE - rear, terminal box to ignition

1шт.

21

F21330

CONNECTOR

1шт.

22

F84677

WIRE - to ignition switch opposite terminal (Include ref. 20)

1шт.

23

F53322

GROMMET - terminal box front panel

1шт.

24

F21300

WIRE - jumper, front wire to switch

1шт.

25

F21332

BLOCK - terminal

1шт.

26

F84815

SWITCH - blower

1шт.

27

F84813

WIRE -, Serial Range: terminal-switch

1шт.

28

F84814

WIRE - terminal box to blower (Include ref. 20)

1шт.

F22125

CLIP - wire

5шт.

29

F21347

GROMMET - blower wire

1шт.

30

F21315

GLASS - side, front L.H. and R.H.

2шт.

31

F21359

MOLDING

MOULDING - front L.H. and front R.H. glass (136")

2шт.

32

F21360

FILLING STRIP

FILLER STRIP - front L.H. and front R.H. glass (136")

2шт.

33

F21314

WINDSHIELD

1шт.

34

F21340

MOLDING

MOULDING - windshield glass (184")

1шт.

35

F21341

FILLING STRIP

FILLER STRIP - windshield glass moulding (184")

1шт.

36

F84804

DOOR

1шт.

37

F21321

GLASS - door

1шт.

38

F21365

MOLDING

MOULDING - door glass (95-1/2")

1шт.

F21366

STRIP

FILLER STRIP - door glass (95-1/2")

1шт.

39

F21324

SEAL - weather, door

1шт.

40

F84806

LATCH - with handle, inside

1шт.

41

F84805

HANDLE, door, outside

1шт.

42

F21320

CATCH - door latch

1шт.

43

F84807

ROD - door check

1шт.

44

F22111

CLIP - check rod

1шт.

45

F22112

SPRING - check rod

1шт.

46

F21391

GLASS - rear

1шт.

47

F21373

MOLDING

MOULDING - rear glass (84")

1шт.

F21372

FILLING STRIP

MOULDING - rear glass (84")

1шт.

48

F21393

CLEAT - ladder rope

1шт.

49

F22122

SEAL - cab, front

1шт.

50

F22119

ANGLE - seal, R.H. front

1шт.

51

F22120

SPACER - cab, R.H. front (16 ga.)

1шт.

52

F22121

SPACER - cab, R.H. front (11 ga.)

1шт.

53

F84808

PANEL - filler, tailings elevator (Grain combine)

1шт.

54

F22113

SEAL

1шт.

55

F22114

SEAL

1шт.

F84823

PANEL - filler, tailings elevator (960 special)

1шт.

F22114

SEAL

1шт.

F22127

SEAL

1шт.

56

F84810

PANEL - filler, rear-tailings elevator

1шт.

57

F22118

SEAL

1шт.

58

F22117

SEAL

1шт.

59

F22116

SEAL

1шт.

60

F84809

PANEL - filler, front-tailings elevator

1шт.

61

F22115

SEAL

1шт.

62

F84824

FILLER - R.H. (960 special combine)

1шт.

63

F21960

FLOOR MAT - rubber

1шт.

64

F22056

STRIP - floor mat

1шт.

65

F22055

STRIP - floor

1шт.

66

F22054

SEAL - rubber, floor

1шт.

67

F22517

BRACE - platform

1шт.

68

F21287

BRACKET -, Serial Range: brace-axle

1шт.

69

F84682

EXTENSION - ladder

1шт.

70

F84186

YOKE - pivot, ladder

2шт.

71

F21947

SUPPORT - angle, ladder (960 special)

1шт.

72

F21948

STUD - angle support (960 special)

2шт.

73

F21946

SUPPORT - ladder (960 special)

1шт.

74

F17860

CLAMP - ladder support (960 special)

10шт.

75

F84678

SUPPORT - angle, cab to grain bin (Grain combine)

1шт.

76

F21959

BRACKET - tie in, cab to grain bin (960 special)

1шт.
