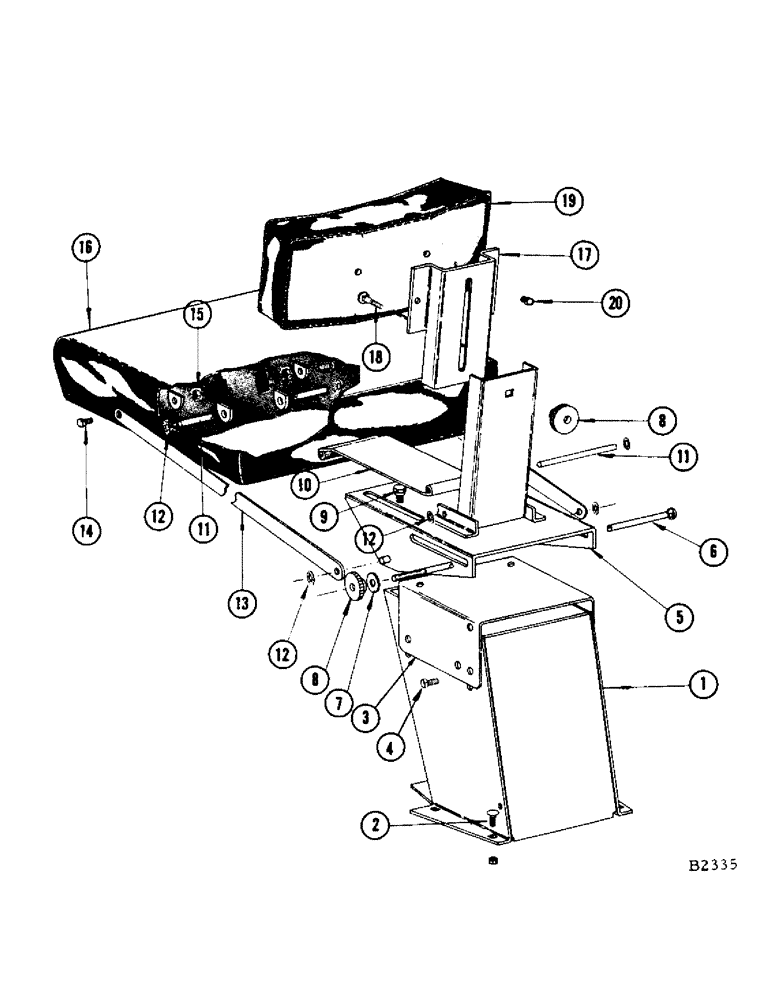

Запчасти Case IH 960 (196) - OPERATORS SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F86997

SUPPORT - seat (Before S/N8358001)

1шт.

1

F94214

SUPPORT - seat (S/N8358001 and after)

1шт.

2

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

4шт.

92-5

LOCK WASHER,5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

3

F94215

BRACKET - seat (S/N8358001 and after)

1шт.

4

114-221

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5, Full Thd

- 3/8" x 5/8" N.F. hex. (Full thrd.)

4шт.

92-6

LOCK WASHER,3/8"

4шт.

5

F87009

PLATE - support bracket

1шт.

6

111-351

BOLT,Short NK, 3/8"-16 x 9 1/2", G2

- 3/8" x 9-1/2" rhd. sq. nk.

1шт.

7

195-533

WASHER,1/2", SAE

- 1/2" flat

1шт.

8

G15951

NUT

- knurled hand (Replaced by F23089 when exh.)

2шт.

F23089

NUT - knurled hand (Replaces G15951 when exh.)

2шт.

9

F22137

BOLT - shoulder

2шт.

10

F14908

LINK - seat, bottom

1шт.

11

F13021

SCREW

SHAFT

2шт.

12

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

(PALNUT) Push, Bolt Retainer, 3/8" x 25/32"

6шт.

13

F13018

LINK - seat, side

2шт.

14

F13404

BOLT - shoulder

2шт.

15

131-4

LOCK NUT,5/16"-18, GB

NUT - 5/16" N.C. ESNA lock

2шт.

16

F87011

CUSHION - seat

1шт.

17

F13019

SCREW

SUPPORT - backrest upper

1шт.

18

111-319

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G2

1шт.

19

F87012

CUSHION - back rest

1шт.

20

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.
