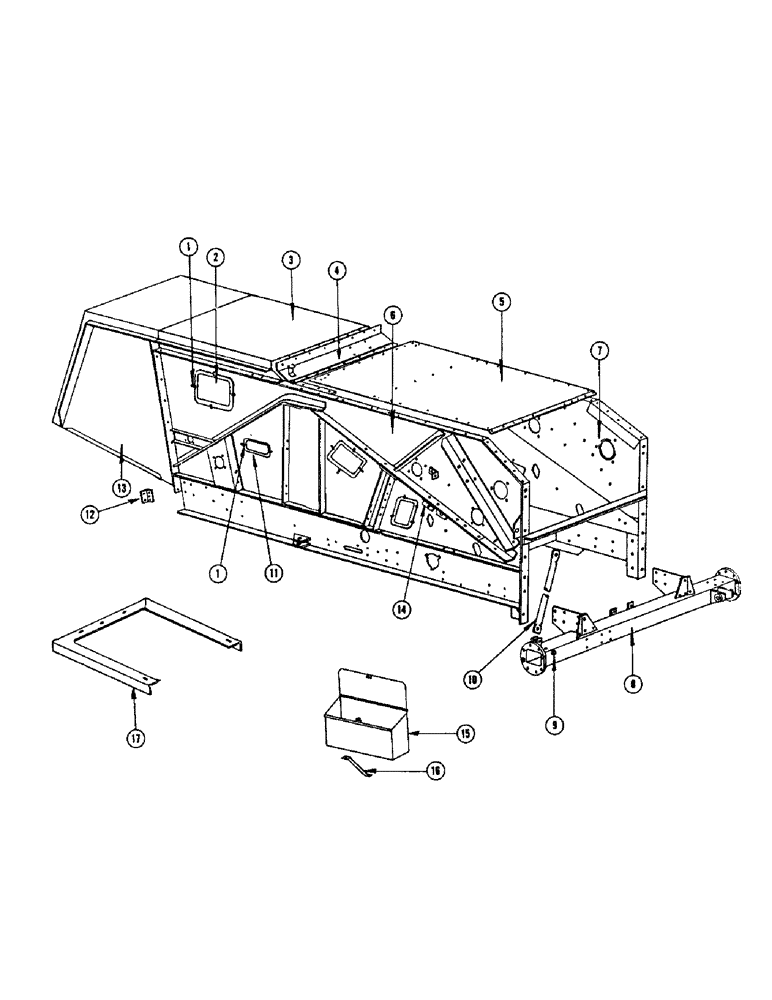

Запчасти Case IH 960 (184) - SIDE SHEETS, HOOD AND DECK (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F86525

CLIP

- door

28шт.

151-123

RIVET - 3/16" x 1/4" semi-tubular

28шт.

2

F16580

DOOR - access

6шт.

3

F84473

DECK - rear (Before #8311400)

1шт.

F84934

DECK - rear (#8311400 and after)

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

11шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Nut and L.W. Hex, 1/4"-20 x 5/8", G5, Full Thd

13шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut and L.W. Hex, 5/16"-24 x 5/8", G5, Full Thd

2шт.

4

F84476

BULKHEAD - (Before #8311400)

1шт.

F84915

BULKHEAD - (#8311400 and after)

1шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Nut and L.W. Hex, 1/4"-20 x 5/8", G5, Full Thd

9шт.

5

F20938

DECK - top front

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex., nut and L.W.

8шт.

195-18

WASHER,1/4"

- flat 1/4"

5шт.

6

F84933

SIDE SHEET - R.H. (Replaces F84464)

1шт.

7

F84932

SIDE SHEET - L.H. (Replaces F84459)

1шт.

F17425

SCREW

COLLAR - support, operator's platform

2шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk., nut and L.W.

5шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 3/8"-16 x 1", G2

2шт.

8

F83829

AXLE - front (Grain combines)

1шт.

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

and L.W. Hex, 1/2"-13 x 1 7/8", G5

4шт.

F83530

AXLE - front tube (960 special)

1шт.

9

F17749

DOWEL

- drop box

4шт.

10

F82547

BRACE - body, R.H. (Grain combines)

1шт.

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

Nut and L.W. Hex, 5/8"-18 x 2", G5

2шт.

F82728

BRACE - body, R.H. (960 special)

1шт.

F82726

BRACKET - body brace (960 special)

1шт.

113-610

X

BOLT - 5/8" x 2" N.C. hex. and L.W.

3шт.

11

F8077

DOOR - access

2шт.

12

F21180

BRACE - R.H.

1шт.

F21179

BRACE - L.H.

1шт.

13

F84537

HOOD - rear (Grain combines)

1шт.

F84539

HOOD - rear (960 special)

1шт.

F21867

CARRIAGE BOLT

DEFLECTOR - rear hood (960 special)

1шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex., nut, L.W. and fl. wshr.

5шт.

14

F19955

BRACKET - R.H., grate tine pin

1шт.

F19954

BRACKET - L.H., grate tine pin

1шт.

15

F84380

TOOL BOX

1шт.

16

F20294

BRACE - support

1шт.

114-105

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

Nut and L.W. Hex, 5/16"-24 x 5/8", G5, Full Thd

4шт.

17

F21874

REINFORCEMENT - (Bagger combines only)

1шт.
