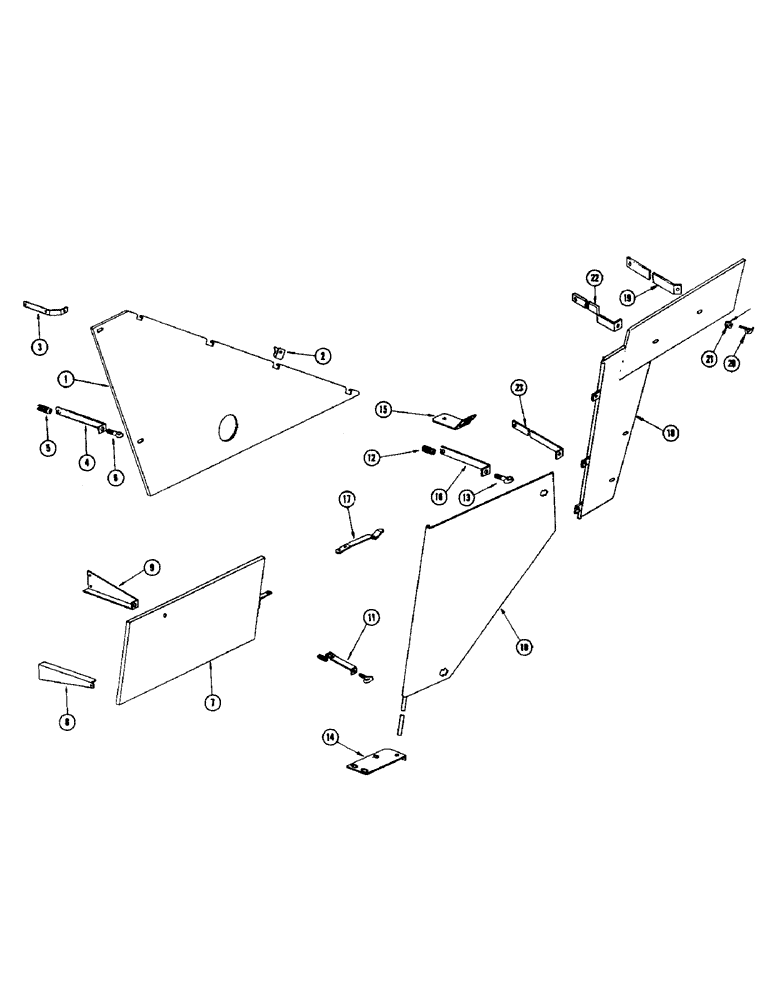

Запчасти Case IH 960 (354) - DRIVE SHIELDS - 960 SPECIAL COMBINE, TRACTION DRIVE SHIELD (88) - ACCESSORIES

1

F84532

SHIELD - traction drive (Replaced by F91840 when exhausted)

1шт.

F91840

SHIELD - traction drive (Replaces F84532) Replaced by F22371 when stock exh.

1шт.

F22371

SHIELD - traction drive (Replaces F91840)

1шт.

2

F20976

CLIP

- hinge

4шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex., nut and L.W.

4шт.

3

F21578

BRACE - front upper

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

- 5/16" x 1" N.F. hex., nut and L.W.

2шт.

195-21

WASHER,5/16"

- flat 5/16"

4шт.

4

F21499

BRACE - front lower

1шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 7/8", G5, Full Thd

1шт.

195-21

WASHER,5/16"

- flat 5/16"

1шт.

5

117EB

SPRING

- latch bolt

2шт.

6

F19960

LATCH

BOLT - latch

2шт.

131-2

NUT,1/4"-20, GB

2шт.

7

F84425

SHIELD - grain elevator drive

1шт.

8

F20968

SUPPORT - lower, grain elevator drive shield

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex., nut and L.W., grain elevator drive shield

3шт.

9

F21516

SUPPORT - upper, grain elevator drive shield

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex., nut and L.W., grain elevator drive shield

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex., nut and L.W., grain elevator drive shield

2шт.

195-21

WASHER,5/16"

- flat, Grain elevator drive shield 5/16"

3шт.

10

F84857

SHIELD - R.H. drive (Chain drive cylinder)

1шт.

195-521

WASHER,5/16", SAE

- 5/8" flat, right hand drive shield

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , RH drive shield 1/8" x 3/4"

2шт.

11

F21258

BRACE - R.H. lower, right hand drive shield

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex., nut and L.W., right hand drive shield

1шт.

12

117EB

SPRING

- latch bolt, right hand drive shield

2шт.

13

F19960

LATCH

BOLT - latch, right hand drive shield

2шт.

131-506

NUT,1/4-20

NUT - 1/4" N.C. lock, right hand drive shield

2шт.

14

F21260

SUPPORT - R.H. lower, right hand drive shield

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W., RH drive shield Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

195-21

WASHER,5/16"

- flat, RH drive shield 5/16"

1шт.

15

F21259

CARRIAGE BOLT

SUPPORT - R.H. upper, right hand drive shield

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W., RH drive shield Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

195-25

WASHER,3/8"

- flat, right hand drive shield 3/8"

2шт.

16

F21257

CARRIAGE BOLT

BRACE - R.H. upper, right hand drive shield

1шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Nut and L.W., RH drive shield Hex, 5/16"-24 x 7/8", G5, Full Thd

1шт.

17

F60832

LATCH - strap, right hand drive shield

1шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex., nut and L.W., right hand drive shield

2шт.

18

F91819

SHIELD - variable speed drive, right hand drive shield

1шт.

19

F22343

BRACE - shield, front, right hand drive shield

1шт.

20

F19960

LATCH

right hand drive shield

3шт.

21

117EB

SPRING

right hand drive shield

3шт.

22

F22352

BRACE - shield, lower, right hand drive shield

1шт.

23

F21500

BRACE - shield, upper, right hand drive shield

1шт.
