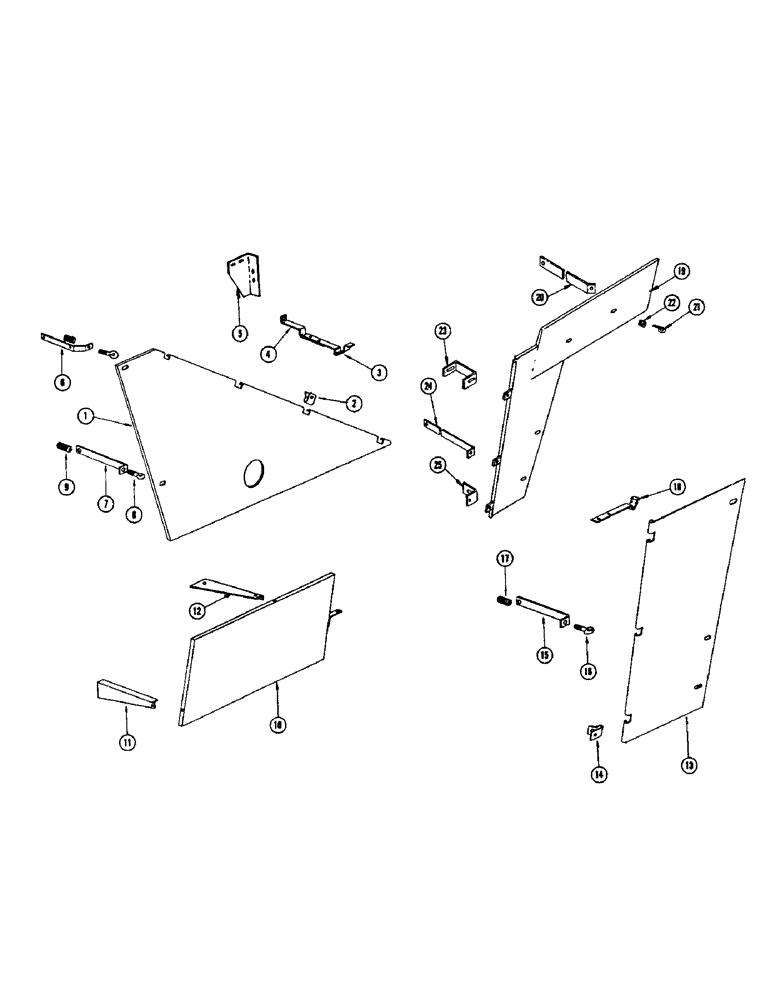

Запчасти Case IH 960 (352) - DRIVE SHIEDS-GRAIN COMBINE TRACTION DRIVE SHIELD (88) - ACCESSORIES

1

F84421

SHIELD - traction drive (Replaced by F91839 when exhausted)

1шт.

F91839

SHIELD - traction drive (Replaces F84421) Replaced by F22370 when stock exh.

1шт.

F22370

SHIELD - traction drive (Replaces F91839)

1шт.

2

F20976

CLIP

- hinge

4шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex. nut and L.W.

4шт.

3

F60832

LATCH - strap

1шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex., nut and L.W.

2шт.

4

F22059

STRAP - support (Grain bin combines)

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex., nut and L.W.

1шт.

5

F21719

BRACKET - support (Bagger combines)

1шт.

6

F21578

BRACE - front upper

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

195-21

WASHER,5/16"

- flat 5/16"

1шт.

7

F21499

BRACE - front lower

1шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Nut, L.W. and fl. wshr. Hex, 5/16"-24 x 7/8", G5, Full Thd

1шт.

F21202

BRACE - L.H. inner (Used when fan housing shield is used)

1шт.

F22299

BRACE - L.H. outer (Used when fan housing shield is used)

1шт.

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

Nut and L.W. Hex, 1/4"-28 x 5/8", G5, Full Thd

1шт.

8

F19960

LATCH

BOLT - latch

2шт.

131-2

NUT,1/4"-20, GB

2шт.

9

117EB

SPRING

- latch bolt

2шт.

10

F84425

SHIELD - elevator drive, grain elevator drive shield

1шт.

11

F20968

SUPPORT - lower, elevator shield, grain elevator drive shield

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex., nut and L.W., grain elevator drive shield

2шт.

12

F21516

SUPPORT - upper, elevator shield, grain elevator drive shield

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-24 x 3/4", G5, Full Thd

1шт.

13

F84423

SHIELD - R.H. drive

1шт.

14

F20976

CLIP

- hinge, right hand drive shield

3шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex., nut and L.W., right hand drive shield

3шт.

15

F21499

BRACE - upper and lower, right hand drive shield

2шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Nut and L.W., RH drive shield Hex, 5/16"-24 x 7/8", G5, Full Thd

2шт.

F21201

BRACE - R.H. (Used when fan housing shield is used), right hand drive shield

1шт.

16

F19960

LATCH

BOLT - latch, right hand drive shield

2шт.

131-506

NUT,1/4-20

NUT - 1/4" N.C. lock, right hand drive shield

2шт.

17

117EB

SPRING

- latch bolt, right hand drive shield

2шт.

18

F60832

LATCH - strap, right hand drive shield

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W., RH drive shield Hex, 1/4"-28 x 1/2", G5, Full Thd

2шт.

19

F91818

SHIELD - R.H. variable speed drive, right hand drive shield

1шт.

20

F22343

BRACE - R.H. drive front, right hand drive shield

1шт.

21

F19960

LATCH

right hand drive shield

3шт.

22

117EB

SPRING

- latch bolt, right hand drive shield

3шт.

23

F22383

HINGE - angle (Before #8358001), right hand drive shield

1шт.

F22764

HINGE - angle (#8358001 and after), right hand drive shield

1шт.

24

F21500

BRACE - R.H. drive shield

2шт.

25

F22355

HINGE - angle, right hand drive shield

2шт.
