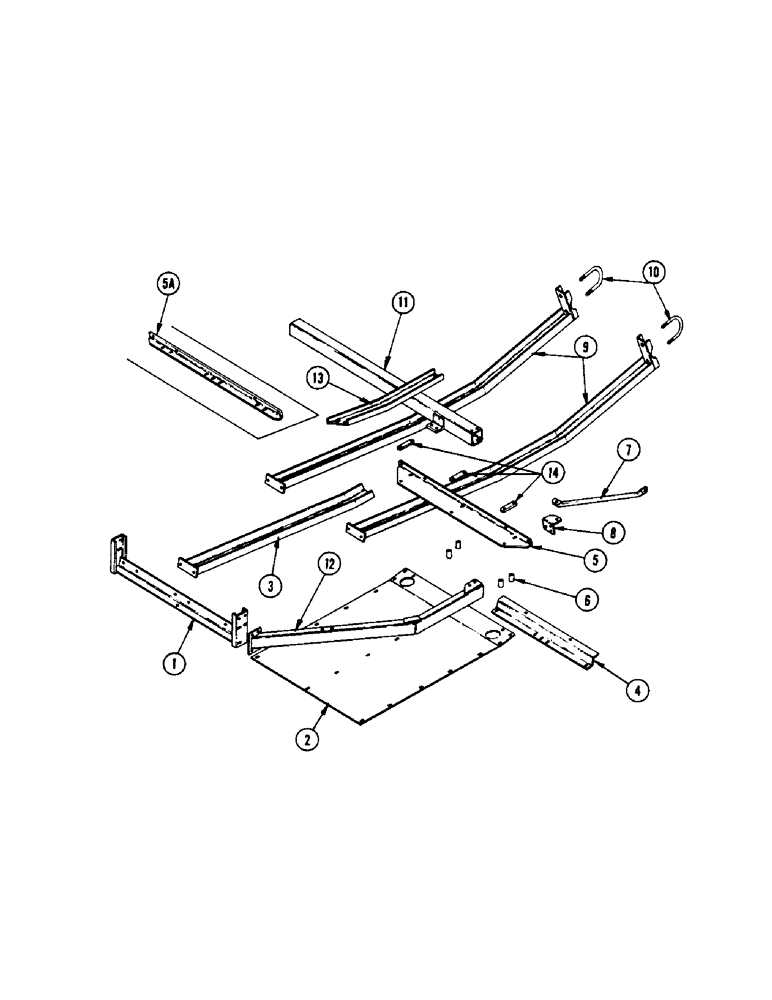

Запчасти Case IH 960 (350) - HEAVY DUTY SKID PAN ATTACHMENT 960 SPECIAL COMBINE (88) - ACCESSORIES
№
Артикул
Название
Примечание
Количество
1
F91984
SUPPORT - skid pan to rear axle (#8334601 and after)
1шт.
F83543
SUPPORT - skid pan to rear axle (Before #8334601)
1шт.
BOLT - 3/8" x 3/4" N.F. hex. (114-209) Nut (129-123)
10шт.
LOCKWASHER - (192-21)
10шт.
BOLT - 3/8" x 1" N.F. hex. (114-200) Nut (129-123)
1шт.
LOCKWASHER - (192-21)
1шт.
2
F83542
CHANNEL - skid pan reinforcement, center
1шт.
BOLT - 3/8" x 3/4" N.F. hex. (114-209) Nut (129-123)
6шт.
LOCKWASHER - (192-21) Fl wshr. (195-525)
6шт.
3
F20497
BOTTOM - skid pan
1шт.
4
F20495
SUPPORT - front, fan shield to skid pan
1шт.
BOLT - 3/8" x 1" N.F. hex. (114-200) Nut (129-123)
2шт.
LOCKWASHER - (192-21)
2шт.
BOLT - 3/8" x 2-1/2" N.F. hex. (114-219) Nut (129-123)
5шт.
LOCKWASHER - (192-21)
5шт.
WASHER - 3/8" flat (195-525)
3шт.
5
F22527
SUPPORT - rear, fan shield to skid pan (#8334601 and after)
1шт.
5a
F20496
SUPPORT - rear, fan shield to skid pan (Before #8334601)
1шт.
BODY - 3/8" x 1" N.F. hex. (114-200) Nut (129-123)
4шт.
LOCKWASHER - (192-21)
4шт.
BOLT - 3/8" x 1-3/4" N.F. hex. (114-204) Nut (129-123)
2шт.
LOCKWASHER - (192-21)
2шт.
6
C3690S
SPACER - between front and rear supports of skid pan body
6шт.
7
F83544
BRACE - body side channel, R.H. side
1шт.
BOLT - 1/2" x 1-1/4" N.F. hex. (114-400) Nut (129-125)
2шт.
LOCKWASHER - (192-23)
2шт.
8
F20500
CLIP - for body brace
1шт.
9
F83541
CHANNEL - skid pan, R.H. and L.H.
2шт.
BOLT - 3/8" x 3/4" N.F. hex. (114-209) Nut (129-123)
12шт.
LOCKWASHER - (192-21)
12шт.
BOLT - 3/8" x 2-1/2" N.F. hex. (114-219) Nut (129-123)
2шт.
LOCKWASHER - (192-21)
2шт.
WASHER - 3/8" flat (195-525)
14шт.
10
F20499
"U" BOLT - skid pan mounting to front axle
2шт.
NUT - 1/2" N.C. hex. (126-105) L.W. (192-23)
4шт.
11
F91985
TUBE - weldment (Before #8358001)
1шт.
F92752
TUBE - weldment (#8358001 and after)
1шт.
BOLT - 3/8" x 4" N.F. hex. (114-229) Nut (129-123) L.W.
2шт.
BOLT - 3/8" x 1" N.F. hex. (114-200) Nut (129-123) L.W.
2шт.
12
F91986
GUARD - weldment elev. (Before #8358001)
1шт.
F92753
GUARD - weldment elev. (#8358001 and after)
1шт.
BOLT - 3/8" x 3/4" N.F. hex. (114-209) Nut (129-123)
3шт.
LOCKWASHER - 3/8" (192-21) Fl. wshr. (195-525)
3шт.
13
F22535
CHANNEL - bolted (Before #8358001)
1шт.
F22835
CHANNEL - bolted (#8358001 and after)
1шт.
BOLT - 3/8" x 1" N.F. hex. (114-200) Nut (129-123) L.W.
2шт.
14
F22536
PLATE - clamping
3шт.
BOLT - 3/8" x 5-1/2" N.F. hex. (114-222) Nut (129-123) L.W.
6шт.
Выбрано товаров: 48
