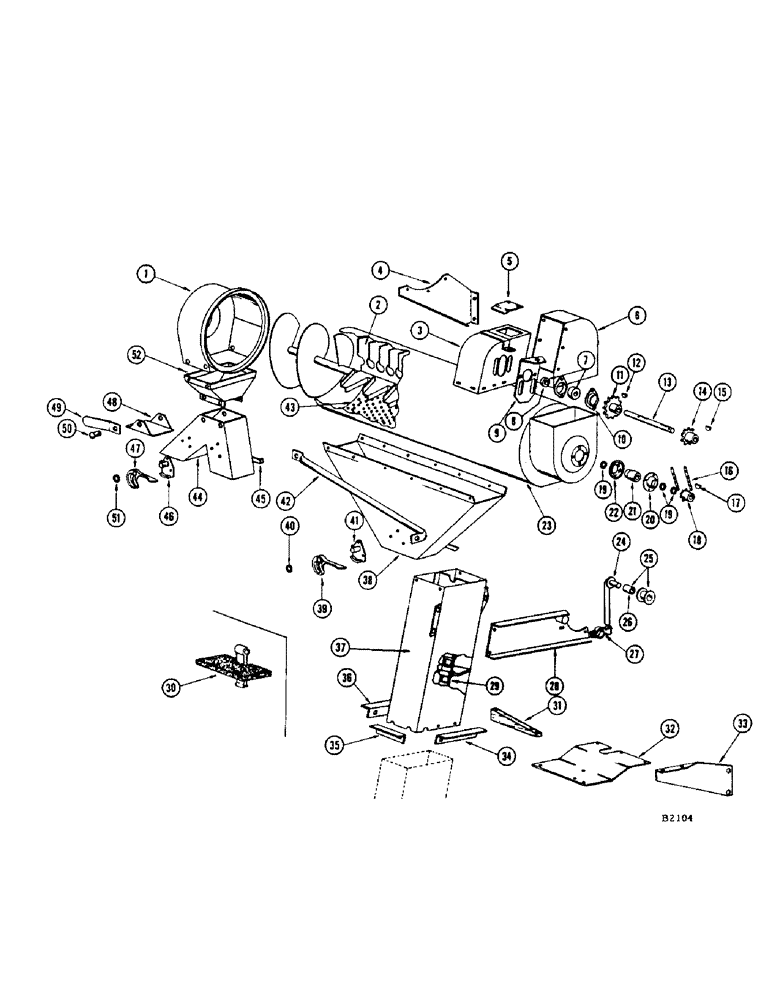

Запчасти Case IH 960 (178) - SCOURKLEEN ATTACHMENT, BAGGER COMBINE (88) - ACCESSORIES

1

F83400

DRUM - discharge

1шт.

187-149

SCREW - #14 x 3/4" tapping

4шт.

131-109

NUT - speed

4шт.

68-414

SCREW - 1/4" x 7/8" mach., nut and L.W.

3шт.

129-419

WING NUT,5/16"-18

NUT - 5/16" wing

3шт.

2

F8306

BLADE - rotor

1шт.

3

F83379

HEAD - grain elevator

1шт.

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

4

F83402

BRACKET - support discharge end

1шт.

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- 1/4" x 5/8" fl. hd. mach., nut and L.W.

3шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Nut, L.W. and fl. wshr. Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

5

F20341

DOOR - clean out

1шт.

187-329

SELF-TAP SCREW,Pan, 0.19"-16 x 1/4"

SCREW - #10 x 1/2" metal

2шт.

131-135

SPRING NUT,Tinn, U, 1/4"-20

Speed Tinn, U, 1/4"-20

2шт.

6

F83404

SPOUT - elevator discharge

1шт.

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Nut, L.W. and fl. wshr. Hex, 1/4"-20 x 1/2", G5, Full Thd

6шт.

7

F90306

BEARING ASSY

BEARING - upper shaft

2шт.

8

O4233CS

COLLAR

1шт.

9

F17592

BRACKET - adjusting

2шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rhd. sq. nk., nut, L.W. and fl. wshr.

4шт.

10

F9417

FLANGE

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

4шт.

11

51B

SPROCKET ASSY.

SPROCKET - (7T) Upper shaft

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

12

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

13

F20350

SHAFT - upper

1шт.

14

F1653

SPROCKET ASSY.

SPROCKET - (20T) Drives ScourKleen

1шт.

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SCREW - 3/8" x 5/8" N.C. set

1шт.

15

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

16

F20353

X

CHAIN - drive (NSS - see chain page)

1шт.

17

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

18

F1654

SPROCKET - (14T) Drives rotor shaft, driven

1шт.

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SCREW - 3/8" x 5/8" N.C. sq. hd. set

1шт.

19

F20286

WASHER

- rotor shaft

5шт.

20

F20336

RETAINER - outer bearing

2шт.

21

F4347

BEARING

- rotor shaft (Wood)

2шт.

22

F20337

RETAINING - inner bearing

2шт.

23

F83398

HOUSING - main

1шт.

187-149

SCREW - #14 x 3/4" type "A" metal

4шт.

445406

SPRING NUT,Tinn, 1/4"-14

- speed

4шт.

24

F83371

ARM - chain tightener

1шт.

25

F83368

ROLLER

1шт.

26

F4345

BUSHING

1шт.

95-8

WASHER,1/2"

flat 1/2"

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

27

F1648

CLAMP - collar, chain tightener arm

1шт.

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

Nut and L.W. Hex, 5/16"-24 x 1 3/4", G5

1шт.

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SCREW - 3/8" x 5/8" N.C. sq. hd. set

1шт.

28

F83401

BRACKET - support, intake end

1шт.

29

F83395

X

EXTENSION - grain elevator chain and flights (Use 2-F86419, 1-F86423 and 1-235-83 coupler link)

1шт.

30

F79799

RUBBER FLIGHT

FLIGHT - rubber, extension chain (Includes F11165 flight, 1-235-65 att. link, 2-#55 plain links and 2-151-135 rivets)

14шт.

F86419

CHAIN AND FLIGHT - (Consists of chain w/2 flights)

2шт.

F86423

CHAIN (AG)

CHAIN AND FLIGHT - (Consists of chain w/10 flights)

1шт.

31

F19428

BLOCK - spacer

1шт.

32

F19430

PLATE - attaching

1шт.

33

F19429

BRACKET - support

1шт.

34

F20346

ANGLE - R.H. side, elevator extension tube

1шт.

35

F20345

ANGLE - rear

1шт.

36

F20347

ANGLE - L.H. side

1шт.

37

F83403

TUBE - elevator extension

1шт.

38

F83405

CHUTE - weed seed

1шт.

39

F1650

LEVER

1шт.

40

A26411

WASHER

1шт.

41

F1651

BRACKET

1шт.

187-329

SELF-TAP SCREW,Pan, 0.19"-16 x 1/4"

SCREW - #10 x 1/2" type "A" metal

8шт.

131-121

SPRING NUT,Tinn, U, #10-24

Speed Tinn, U, #10-24

8шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

42

F20356

BRACE

1шт.

43

F83260M

SCREEN - (.165 triangular holes (Std.) See screens - extra)

1шт.

44

F83397

SPOUT - twin sacker

1шт.

45

F20355

BAR - twin sacker spout

2шт.

46

F1651

BRACKET

2шт.

47

F1650

LEVER

2шт.

48

F83396

VALVE

1шт.

49

F20351

LEVER

1шт.

50

F20352

PIN

1шт.

51

A26411

WASHER

2шт.

187-329

SELF-TAP SCREW,Pan, 0.19"-16 x 1/4"

SCREW - #10 x 1/2" type "A" metal

5шт.

131-121

SPRING NUT,Tinn, U, #10-24

Speed Tinn, U, #10-24

5шт.

95-6

WASHER,3/8"

- flat 3/8"

2шт.

68-48

SCREW - 1/4" x 1/2" N.C. mach., nut and L.W.

4шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

52

F83399

ADAPTER - sacker spout

1шт.
