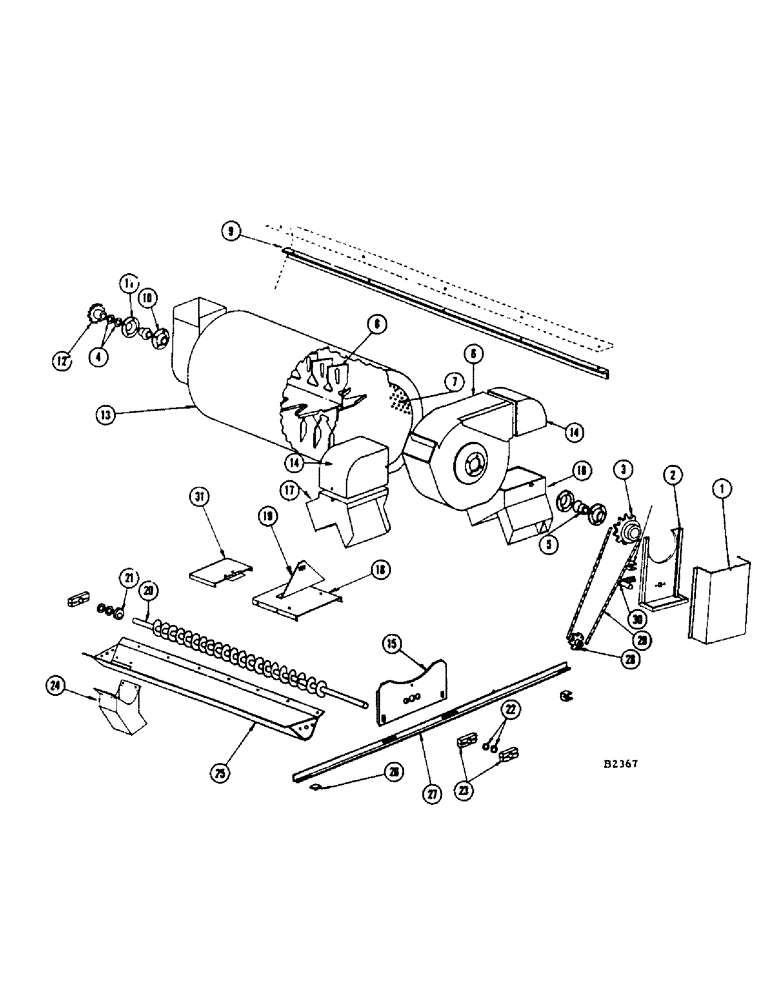

Запчасти Case IH 960 (167A) - SCOURKLEEN ATTACHMENT GRAIN BIN COMBINES NUMBER 8358001 AND AFTER SCOURKLEEN SCREENS EXTRA (88) - ACCESSORIES

1

F12368

FRONT SHEET - chain shield

1шт.

2

F83499

SHIELD - weed seed auger drive chain

1шт.

3

F1391

SPROCKET - (9T) On discharge end of rotor shaft, drives weed seed auger

1шт.

4

F20286

WASHER

- rotor shaft

9шт.

5

F4347

BEARING

- (Wood) On rotor shaft

2шт.

6

F83549

DRUM - discharge

1шт.

7

F83260M

SCREEN - (.165 triangular hole) Standard (See screen-extra)

1шт.

8

F83500

ROTOR BLADE

1шт.

9

F20436

REINFORCEMENT - front and rear top, grain bin rim

2шт.

10

F20337

RETAINER - inner, bearing

2шт.

11

F20336

RETAINER - outer, bearing

2шт.

12

F22067

SPROCKET - (15T) drives rotor shaft, driven

1шт.

13

F83374

HOUSING - main

1шт.

14

F83376

ELBOW - at discharge end

1шт.

15

F23077

BRACKET - support, at discharge end

1шт.

16

F83382

CHUTE - front, grain discharge

1шт.

17

F83385

CHUTE - rear, grain discharge

1шт.

18

F23076

COVER - auger trough

1шт.

19

F20439

BRACKET - stiffener, auger trough cover

1шт.

20

F84769

AUGER - weed seed

1шт.

21

F1647

COLLAR - set, auger shaft

1шт.

22

A26411

WASHER

- auger shaft

5шт.

23

F4346

BEARING - (Wood) auger shaft

2шт.

24

F83489

DOWNSPOUT - weed seed tube

1шт.

25

F84773

TROUGH - weed seed auger

1шт.

26

F20349

"U" CLAMP - support angle, at both ends

2шт.

27

F94991

ANGLE - support

1шт.

28

F1649

SPROCKET - (12T) auger, driven

1шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

29

B15926

LINK

CHAIN - (#24 steel, 10' roll) - use 31 links to make weed seed auger drive chain

1шт.

30

F83373

TIGHTENER - chain

1шт.

31

F84774

DOOR - auger trough

1шт.

F83260M

SCREEN - (.165 triangular hole) Strandard, scourkleen screens extra

1шт.

F83261M

SCREEN - (.140 triangular hole) Wheat, oats, barley, rye and rice, scourkleen screens extra

1шт.

F83262M

SCREEN - (1/8" x 3/4" slotted hole) Corn and beans, scourkleen screens extra

1шт.

F83263M

SCREEN - (5/32" x 3/4" slotted hole) Corn, scourkleen screens extra

1шт.

F83264M

SCREEN - (5/32" round hole) Beans, scourkleen screens extra

1шт.

F83265M

SCREEN - (1/20" round hole) Alfalfa, clover and grass, scourkleen screens extra

1шт.

F83266M

SCREEN - (1/12" round hole) Flax, grass and maize, scourkleen screens extra

1шт.

F83267M

SCREEN - (3/16" round hole) Corn and beans, scourkleen screens extra

1шт.

F83268M

SCREEN - (7/32" round hole) beans, scourkleen screens extra

1шт.
