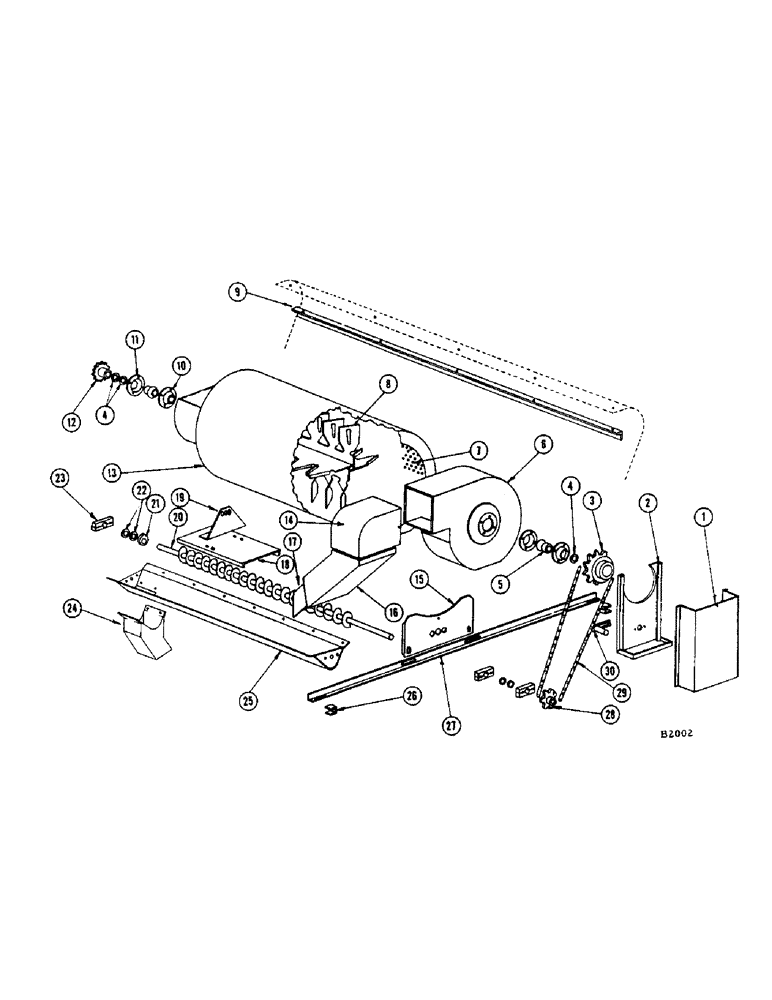

Запчасти Case IH 960 (164) - SCOURKLEEN ATTACHMENT, GRAIN COMBINE, BEFORE NUMBER 8358001 (88) - ACCESSORIES

1

F12368

FRONT SHEET - chain shield

1шт.

2

F83499

SHIELD - weed seed auger drive chain

1шт.

3

F1391

SPROCKET - (9T) On discharge end of rotor shaft drives weed seed auger

1шт.

SCREW - 3/8" x 5/8" N.C. sq. hd. set (85-610)

2шт.

4

F20286

WASHER

- rotor shaft

9шт.

5

F4347

BEARING

- (Wood) On rotor shaft

2шт.

6

F83494

DRUM - discharge

1шт.

SCREW - 1/4" x 7/8" N.C. mach. (68-414) Wing nut (129-405)

3шт.

7

F83260M

SCREEN - (.165" triangular hole) Standard (See screens - extra)

1шт.

8

F83500

ROTOR BLADE

1шт.

9

F20436

REINFORCEMENT - front and rear top, grain bin rim

2шт.

BOLT - 1/4" x 5/8" N.C. hex. (13-410) Nut (25-104) and L.W. (92-4) Fl. wshr. (95-4)

10шт.

10

F20337

RETAINER - inner, bearing

2шт.

11

F20336

RETAINER - outer, bearing

2шт.

12

F22067

SPROCKET - (15T) Drives rotor shaft, driven

1шт.

KEY - #15 Woodruff (126-24)

1шт.

SCREW - 3/8" x 5/8" N.C. sq. hd. set (85-610)

1шт.

13

F83374

HOUSING - main

1шт.

SCREW - #14 x 3/4" metal (187-149) Speed nut (131-136)

4шт.

14

F83376

ELBOW - at discharge end

1шт.

SCREW - 3/16" x 3/8" N.C. mach. (173-92) Nut (129-7)

3шт.

15

F20343

BRACKET - support, at discharge end

1шт.

SCREW - 1/4" x 5/8" N.C. flat hd. mach. (73-410) and Nut (25-104) L.W. (92-4)

3шт.

BOLT - 5/16" x 3/4" N.C. hex. (13-512) Nut (25-105)

3шт.

WASHER - 5/16" flat (95-5)

6шт.

16

F83498

CHUTE - grain discharge

1шт.

SCREW - 3/16" x 3/8" N.C. mach. (173-93) Nut (129-7)

4шт.

17

F20441

COVER SHEET - discharge chute

1шт.

18

F20440

COVER - auger trough

1шт.

SCREW - #10 x 1/2" metal (187-329) Tinnerman nut (131-121)

8шт.

19

F20439

BRACKET - stiffener, auger trough cover

1шт.

SCREW - 1/4" x 5/8" N.C. mach. (68-410) Dbl. L.W. (92-4)

2шт.

20

F83496

AUGER - weed seed

1шт.

21

F1647

COLLAR - set, auger shaft

1шт.

SCREW - 3/8" x 1/2" sq. hd. set (85-68)

1шт.

22

A26411

WASHER

- auger shaft

5шт.

23

F4346

BEARING - (Wood) Auger shaft

2шт.

SCREW - 1/4" x 3/4" N.C. truss hed. mach. (187-947) and Nut (25-104) L.W. (92-4)

2шт.

24

F83489

DOWNSPOUT - weed seed tubes

1шт.

SCREW - 3/16" x 3/8" N.C. rhd. mach. (173-93) Nut (129-7)

4шт.

25

F83495

TROUGH - weed seed auger

1шт.

SCREW - #10 x 1/2" metal (187-329) Tinnerman nut (131-121)

8шт.

26

F20349

"U" CLAMP - support angle, at both ends

2шт.

BOLT - 5/16" x 1-3/4" N.C. hex. (13-528) Nut (25-105)

2шт.

27

F83493

ANGLE - support

1шт.

BOLT - 5/16" x 3/4" N.C. hex. (13-512) Nut (25-105)

2шт.

WASHER - 5/16" flat (95-5)

4шт.

28

F1649

SPROCKET - (12T) auger, driven

1шт.

PIN - cotter 3/16" x 1-1/2" (132-95)

1шт.

29

B15926

LINK

10' ROLL OF #25 STEEL CHAIN - use 31 links to make weed seed auger drive chain

1шт.

30

F83373

TIGHTENER - chain

1шт.

SCREW - 1/4" x 3/4" N.C. mach. (68-412) Nut (25-104) and L.W. (92-4) Fl. wshr. (95-4)

1шт.

F83260M

SCREEN - (.165" triangular hole) Standard (See screens - extra)

1шт.

F83261M

SCREEN - (.140" triangular hole) Wheat, oats, barley, rye and rice

1шт.

F83262M

SCREEN - (1/8" x 3/4" slotted hole) Corn and beans

1шт.

F83263M

SCREEN - (5/32" x 3/4" slotted hole) Corn

1шт.

F83264M

SCREEN - (5/32" round hole) Beans

1шт.

F83265M

SCREEN - (1/20" round hole) Alfalfa, clover and grass

1шт.

F83267M

SCREEN - (3/16" round hole) Corn and beans

1шт.

F83268M

SCREEN - (7/32" round hole) Beans

1шт.
