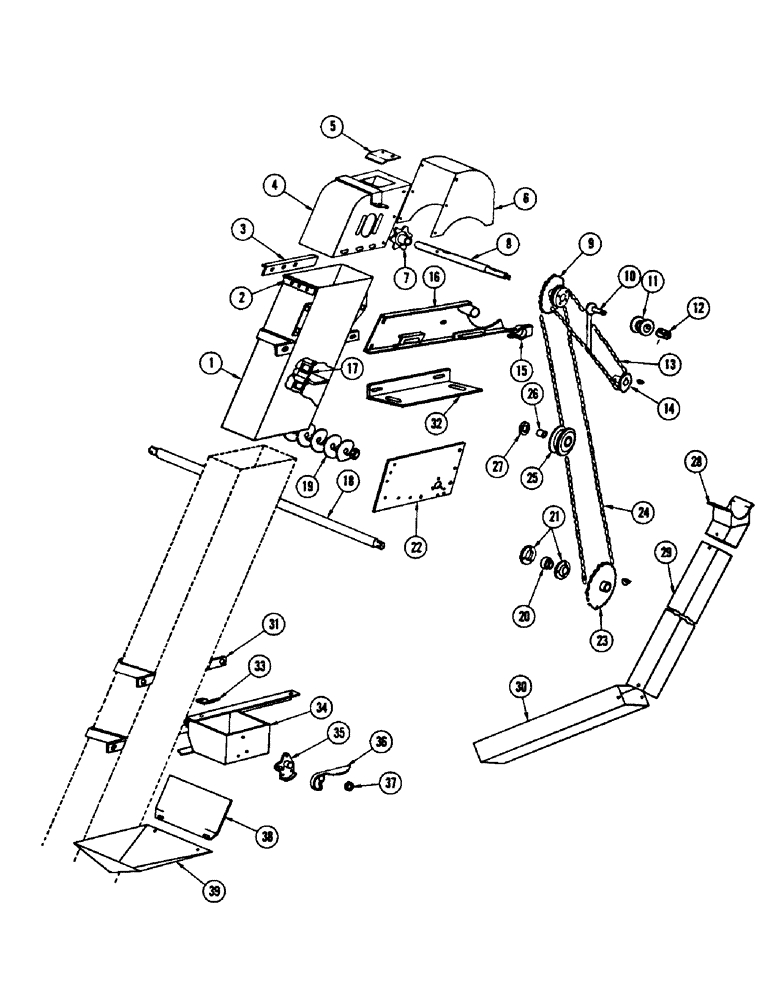

Запчасти Case IH 960 (163A) - SCOURKLEEN ATTACHMENT ELEVATOR EXTENSION AND DRIVE GRAIN BIN COMBINE NUMBER 8358001 AND AFTER (88) - ACCESSORIES

1

F94994

TUBE - elevator extension

1шт.

2

F23079

ANGLE - rear

1шт.

3

F83553

ANGLE - L.H. side

1шт.

4

F94993

HEAD - elevator

1шт.

5

F23041

DOOR - cleanout

1шт.

6

F94992

SPOUT - elevator discharge

1шт.

51-B

SPROCKET - (7T) elevator upper shaft (Standard - not part of attachment)

1шт.

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

132-99

COTTER PIN,3/16" x 2"

PIN - cotter 5/16" x 2"

1шт.

8

F23078

SHAFT - upper

1шт.

9

F94988

SPROCKET - (20T and 30T) Drives ScourKleen

1шт.

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

10

F84771

ARM - chain tightener

1шт.

11

F83368

ROLLER - chain tightener

1шт.

12

F4345

BUSHING

1шт.

13

F20444

X

CHAIN - ScourKleen drive (NSS - see chain page)

1шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

14

F22067

SPROCKET - (15T) Drives rotor shaft, driven

1шт.

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SCREW - 3/8" x 5/8" sq. hd. set

1шт.

15

F1648

CLAMP - collar, chain tightener arm

1шт.

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SCREW - 3/8" x 5/8" sq. hd. set

1шт.

16

F94989

BRACKET - support

1шт.

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- 1/4" x 5/8" N.C. fl. hd. mach., nut and L.W.

3шт.

17

F94997

CHAIN - extension elevator (#CA550-7 inch flight) See chain page; consists of 8 flights

1шт.

18

F23080

SHAFT - leveling auger, grain bin

1шт.

19

F94995

AUGER - leveling, grain bin

1шт.

20

F62096

X

BEARING - for F23080 shaft

2шт.

21

B18282

FLANGE

TTE - for F62096 bearing

4шт.

22

F23083

SCREW

PLATE - reinforcement, R.H. side of grain bin

1шт.

23

F84909

SPROCKET ASSY.

SPROCKET - (36T) driven, leveling auger (Standard - not part of attachment)

1шт.

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

24

F60261

X

CHAIN - elevator drive (NSS - see chain page)

1шт.

25

O3511CS

PULLEY

IDLER - chain (Standard - not part of attachment)

1шт.

26

F22068

SPACER

1шт.

27

F22074

WASHER - idler pulley

4шт.

28

F83489

DOWNSPOUT - weed seed tube

1шт.

29

F83491

TUBE - weed seed upper

1шт.

30

F83492

TUBE - weed seed lower

1шт.

31

F23081

STRAP - clamp

3шт.

32

F23084

SCREW

BRACKET - support, grain elevator clamp

1шт.

33

F20442

BRACKET - tube

1шт.

34

F83388

HOLDER - bag

1шт.

35

F1651

BRACKET

1шт.

36

F1650

LEVER

1шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

37

A26411

WASHER

1шт.

38

F20340

SHIELD - front

1шт.

39

F83370

BOX - bag

1шт.
