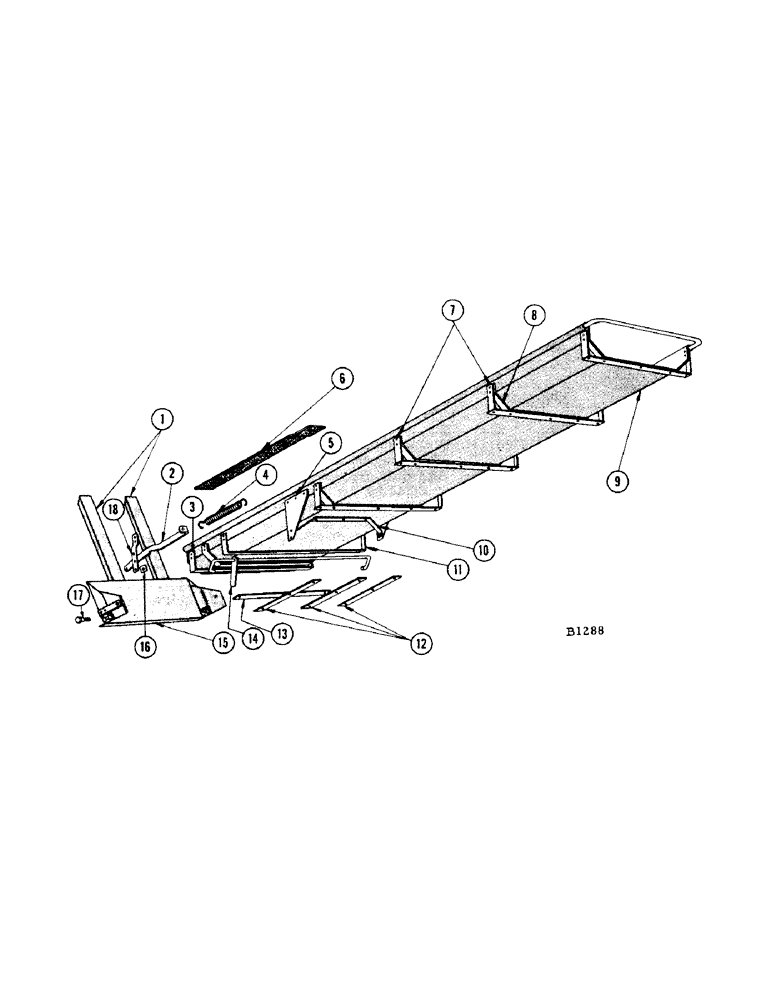

Запчасти Case IH 960 (176) - BAG CHUTE, BRACES FOR BAG CHUTE (80) - CROP STORAGE/UNLOADING

1

F77328

EXTENSION - bag chute end gate

2шт.

2

F7589

STRAP - gate latch (L.H. shown)

1шт.

195-29

WASHER,7/16"

- flat 7/16"

1шт.

11-720

BOLT (MACHINE),Short NK, 7/16"-14 x 1 1/4", G2

BOLT - 7/16" x 1-1/4" rhd. sq. nk., nut and L.W.

1шт.

F7588

STRAP - gate latch R.H.

1шт.

B18072

X,3/8" Pipe x 3/8"

SPACER - end gate latch strap

2шт.

3

F8753

STRAP - reinforcement, lower end

1шт.

46-414

RIVET - 1/4" x 7/8" ctsk. hd. Csk, 1/4" x 7/8"

4шт.

4

F5318

SPRING - end gate

2шт.

5

O1049CK

RETAINER - gate spring

2шт.

411-48

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT - 1/4" x 1/2" rhd. sq. nk., nut and L.W.

6шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

6

O8080HT

BELTING - bag chute floor

1шт.

7

F77324

ANGLE - reinforcement

3шт.

45-616

RIVET,But Hd, 3/8" x 1"

- 3/8" x 1" rhd.

6шт.

8

F8752

STRAP - reinforcement

7шт.

73-620

BOLT (MACHINE),M12 x 50mm, Cl 10.9

SCREW - 3/8" x 1-1/4" fl. hd. mach., nut and L.W.

31шт.

9

F82668

BAG CHUTE - with bail

1шт.

10

F8750

BRACE - gate spring retainer

1шт.

11

F8755

REINFORCEMENT - latch bracket

1шт.

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.F. hex., nut and L.W.

4шт.

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" x 1-1/2" N.F. hex., nut and L.W.

2шт.

12

F7584

STRAP - reinforcement, lower end

3шт.

73-620

BOLT (MACHINE),M12 x 50mm, Cl 10.9

SCREW - 3/8" x 1-1/4" fl. hd. mach., nut and L.W.

6шт.

13

F8754

FILLER - lower end

1шт.

14

F86605

TRIP - gate latch, with lever

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

15

F77326

END GATE - bag chute

1шт.

11-720

BOLT (MACHINE),Short NK, 7/16"-14 x 1 1/4", G2

BOLT - 7/16" x 1-1/4" rhd. sq. nk., nut and L.W.

2шт.

16

O6345HT

SPACER - end gate latch bracket

2шт.

17

O6300HT

BOLT - shoulder, end gate

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex., and L.W.

2шт.

18

O6344HT

BRACKET - end gate latch

2шт.

73-416

BOLT (MACHINE),Flat, 1/4"

SCREW - 1/4" x 1" fl. hd. mach., nut and L.W.

4шт.
