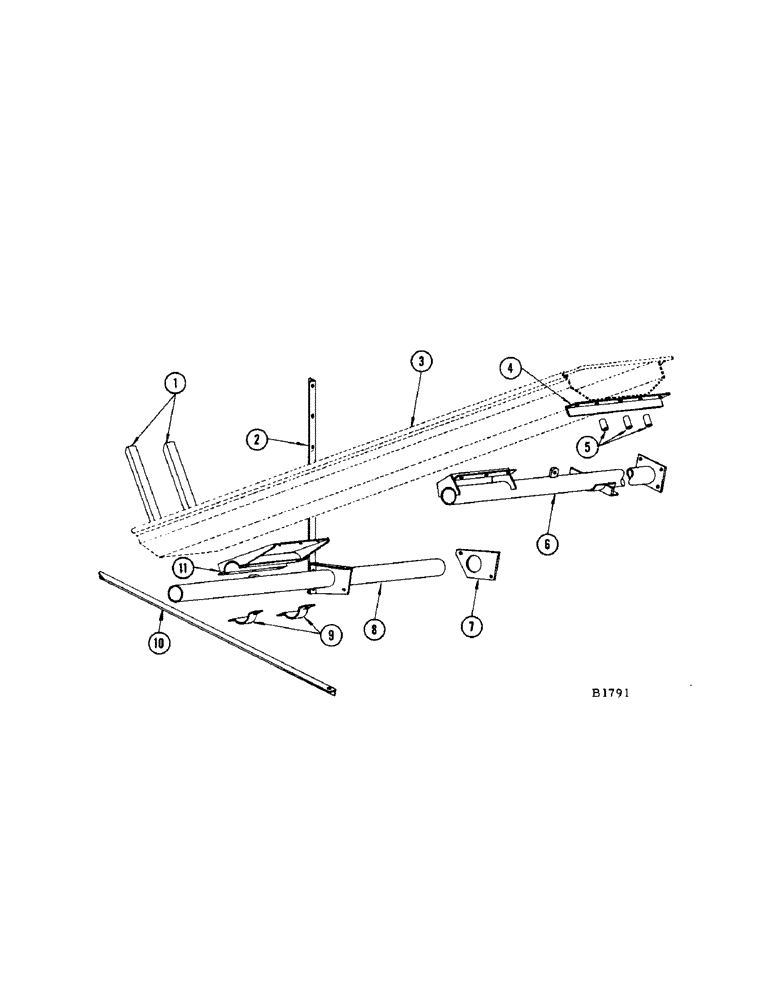

Запчасти Case IH 960 (176[1]) - BRACES FOR BAG CHUTE (80) - CROP STORAGE/UNLOADING

1

F77328

EXTENSION - bag chute end gate

2шт.

2

F18875

REINFORCEMENT - rear hood front angle

1шт.

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- 3/8" x 3/4" N.F. hex., nut and L.W.

2шт.

3

F82668

BAG CHUTE - with bail

1шт.

4

F8751

ANGLE - upper, bag chute

1шт.

114-218

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5, Full Thd

- 3/8" x 7/8" N.F. hex., nut and L.W.

2шт.

171-225

SCREW

- 3/8" x 2-3/4" N.C. mach., nut and L.W.

3шт.

5

H3005S

SPACER

3шт.

6

F82651

SUPPORT - upper, bag chute

1шт.

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- 3/8" x 3/4" N.F. hex., nut and L.W.

4шт.

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

Nut and L.W. Hex, 7/16"-20 x 1", G5, Full Thd

2шт.

7

F18928

BRACKET - R.H., lower support pipe

1шт.

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- 3/8" x 3/4" N.F. hex., nut and L.W.

2шт.

8

F82652

SUPPORT - lower bag chute

1шт.

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- 3/8" x 3/4" N.F. hex., nut and L.W.

1шт.

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

nut and L.W. Hex, 5/16"-24 x 7/8", G5, Full Thd

1шт.

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- 5/16" x 1-1/4" N.F. hex., nut and L.W.

1шт.

9

F18929

CLAMP - lower support bracket

2шт.

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- 3/8" x 3/4" N.F. hex., nut and L.W.

4шт.

10

F21876

CARRIAGE BOLT

BRACE - lower support, bag chute

1шт.

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- 3/8" x 3/4" N.F. hex., nut and L.W.

2шт.

11

F82669

BRACKET - lower support

1шт.

73-614

SCREW - 3/8" x 7/8" rhd. mach., nut and L.W.

6шт.
