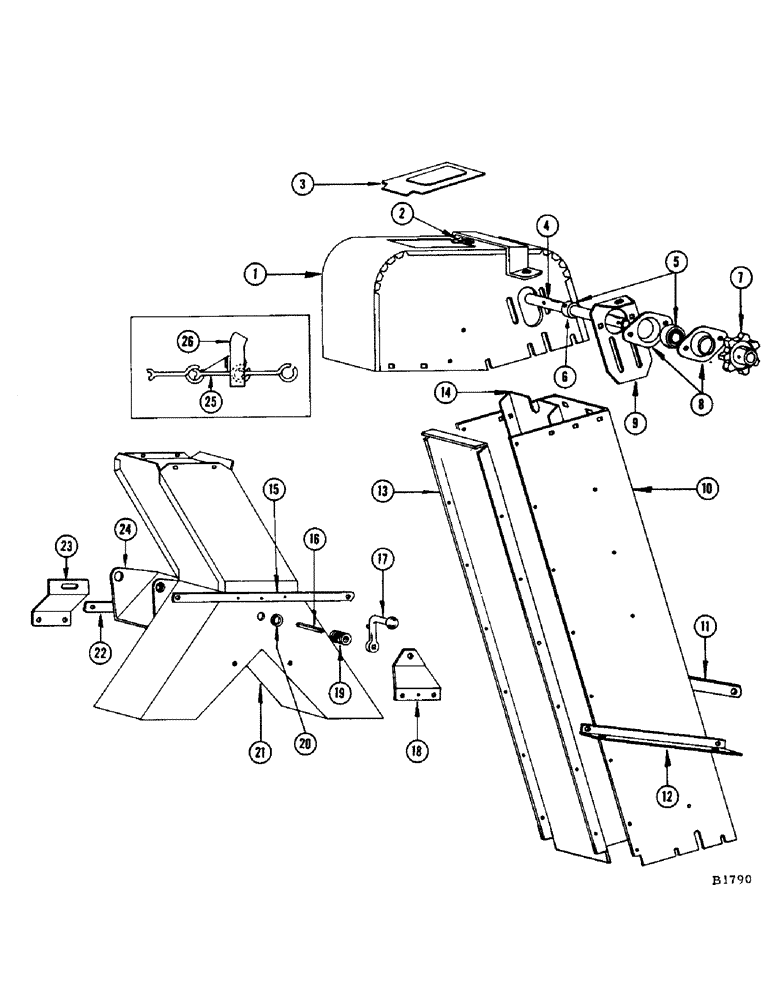

Запчасти Case IH 960 (174) - INLET ELEVATOR AND BAGGING SPOUT (80) - CROP STORAGE/UNLOADING

1

F82655

HOUSING - inlet elevator

1шт.

2

F86525

CLIP

- door (Replaces F7738 when stocks are exh.)

1шт.

F7738

CLIP - door (Replaced by F86525 when stocks exh.)

1шт.

151-196

RIVET - 3/16" x 8/16" split steel (For F7738)

1шт.

151-123

RIVET - 3/16" x 4/16" semi-tubular (for F86525)

1шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex., nut and L.W.

4шт.

3

F17108

DOOR - inlet elevator housing

1шт.

4

F6571

SHAFT - upper, inlet elevator

1шт.

5

F94134

HOUSING ASSY.

BEARING - upper shaft

2шт.

6

F52076

COLLAR

1шт.

7

51B

SPROCKET ASSY.

SPROCKET - (7T) Upper shaft

1шт.

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

8

F9417

FLANGE

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

4шт.

9

F17592

HOLDER - bearing

2шт.

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 1/4" x 5/8" rhd. sq. nk., nut and L.W.

4шт.

113-106

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5, Full Thd

Hex, 5/16"-18 x 2-1/2", G5, Full Thd

2шт.

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex. jam

4шт.

195-4

WASHER - 1/4" flat

4шт.

10

F18887

EXTENSION - wrapper, inlet elevator

1шт.

12-48

BOLT - 1/4" x 1/2" rhd. sq. nk., nut and L.W.

8шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex., nut and L.W.

2шт.

195-102

WASHER,1/4"

- flat 1/4"

8шт.

11

F18909

STRAP - upper bracket

1шт.

114-119

BOLT - 5/16" x 5-3/4" N.F. hex., nut and L.W. Hex, 5/16"-24 x 5 3/4", G5

2шт.

12

F18908

BRACKET - upper

1шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

13

F18889

FLOOR - extension

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

14шт.

195-4

WASHER - 1/4" flat

2шт.

14

F18888

DIVIDER - extension

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

10шт.

15

O2031CS

STRAP - sock holder chain

1шт.

45-210

RIVET - 1/8" x 5/8" rhd.

3шт.

122-3

BURR

3шт.

16

O672CW

PIN - sacker valve

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

17

228CW

LEVER - valve

1шт.

18

O5837HT

BRACKET - valve lever

1шт.

49-44

RIVET - 1/4" x 1/4" W.B. hd.

2шт.

19

O321CW

SPRING - sacker valve pin

1шт.

20

A26381

WASHER

1шт.

21

F82658

SPOUT - twin sacker valve

1шт.

22

O5790HT

SUPPORT - sacker spout

1шт.

49-46

RIVET - 1/4" x 3/8" W.B. hd.

2шт.

23

F18922

SCREW

BRACKET - support

1шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

Nut and L.W. Hex, 7/16"-20 x 1", G5, Full Thd

1шт.

195-105

WASHER,7/16"

- flat 7/16"

1шт.

24

O20374HT

VALVE - sacker

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex., nut and L.W.

1шт.

25

F82660

X

CHAIN AND FLIGHT - (NSS - use 1-F86419, 1-F86423 and 2-235-83 coupler links)

1шт.

26

F79799

RUBBER FLIGHT

FLIGHT - rubber (Includes F11165 flight and 1 - 235-65 attach. link, 2-#55 plain links and 2 - 151-135 rivets)

12шт.

F86419

CHAIN AND FLIGHT - (Consists of chain with 2 flights)

1шт.

F86423

CHAIN (AG)

CHAIN AND FLIGHT - (Consists of chain with 10 flights)

1шт.
