(172) - BAGGING PLATFORM SUPPORTS

Запчасти Case IH 960 (172) - BAGGING PLATFORM SUPPORTS (80) - CROP STORAGE/UNLOADING

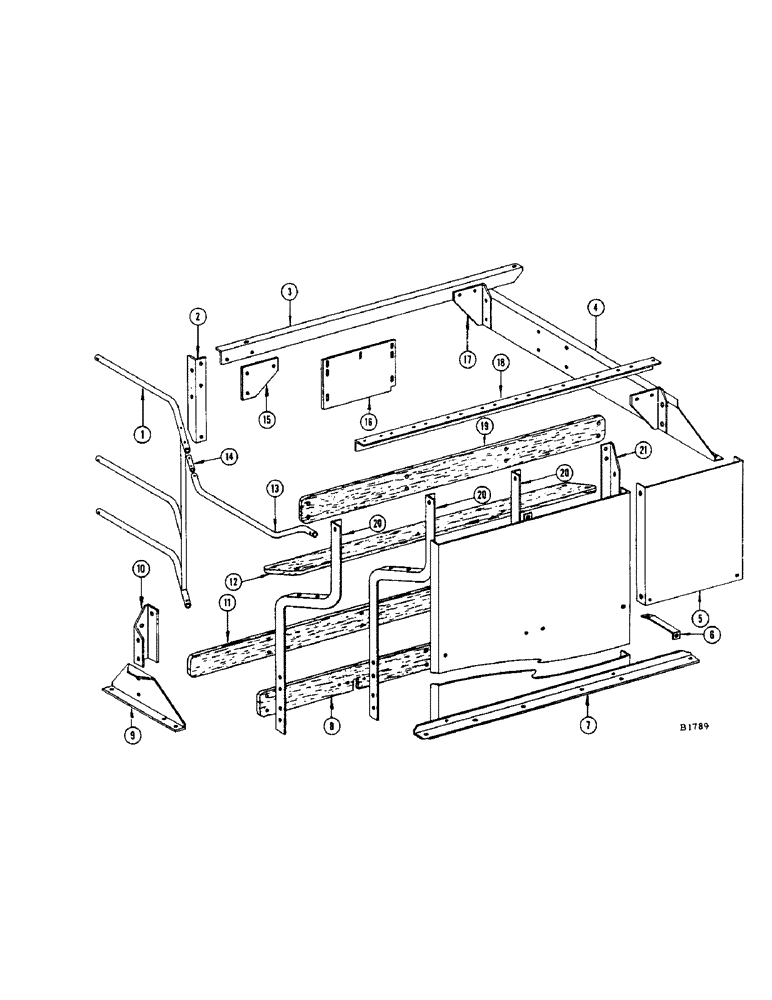

Схема запчастей Case IH 960 - (172) - BAGGING PLATFORM SUPPORTS (80) - CROP STORAGE/UNLOADING
15
8
4
1
2
18
21
29
6
19
5
13
20
17
7
11
10
9
3
14
16
20
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F82666

RAIL - guard

1шт.

114-204

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

Hex, 3/8-24 x 1 3/4", G5, Nut and L.W.

3шт.

2

F18904

SUPPORT - L.H. front

1шт.

114-203

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.F. hex., nut and L.W.

1шт.

114-400

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

Nut and L.W. Hex, 1/2"-20 x 1 1/4", G5, Full Thd

1шт.

3

F18872

SCREW

ANGLE - floor support, front

1шт.

4

F18874

SUPPORT - R.H.

1шт.

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

Nut and L.W. Hex, 1/4"-28 x 5/8", G5, Full Thd

1шт.

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- 1/4" x 3/4" N.F. hex., nut and L.W.

1шт.

114-308

BOLT,Hex, 7/16" - 20 x 3/4", Gr 5, Full Thd

- 7/16" x 3/4" N.F. hex., nut and L.W.

5шт.

5

F18897

PANEL - R.H. seat back

1шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" 1/2" N.F. hex., nut and L.W.

4шт.

6

F18921

BRACE - seat back panels

4шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex., nut and L.W.

4шт.

7

F82647

PANEL - L.H. seat back

1шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

114-122

BOLT,Hex, 5/16" - 24 x 2", Gr 5

Nut and L.W. Hex, 5/16"-24 x 2", G5

4шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex., nut and L.W.

2шт.

8

F4066

BOARD - grain, front

1шт.

11-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2"

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 1 1/2"

4шт.

114-107

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.F. hex., nut and L.W.

3шт.

114-106

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

- 5/16" x 1-3/4" N.F. hex., nut and L.W.

1шт.

9

F18902

SUPPORT - L.H. rear

1шт.

114-308

BOLT,Hex, 7/16" - 20 x 3/4", Gr 5, Full Thd

- 7/16" x 3/4" N.F. hex., nut and L.W.

2шт.

10

F18903

BRACKET - L.H. rear support

1шт.

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- 3/8" x 3/4" N.F. hex., nut and L.W.

3шт.

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

Nut and L.W. Hex, 7/16"-20 x 1", G5, Full Thd

1шт.

11

F18944

BOARD - foot rest

1шт.

11-424

BOLT (MACHINE)

BOLT - 1/4" x 1-1/2" rhd. sq. nk., nut and L.W.

8шт.

12

F4068

BOARD - seat

1шт.

11-632

BOLT,Short NK, 3/8"-16 x 2", G2

- 3/8" x 2" rhd. sq. nk., nut and L.W.

8шт.

13

F18940

RAIL - guard, rear

1шт.

114-204

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

Hex, 3/8-24 x 1 3/4", G5, Nut and L.W.

1шт.

14

F18931

SPLICE - guard rail

1шт.

114-203

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.F. hex., nut and L.W.

2шт.

15

F18905

GUSSET - L.H. front support

1шт.

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- 3/8" x 3/4" N.F. hex., nut and L.W.

2шт.

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd, Nut and L.W.

1шт.

16

F18923

SCREW

CLOSURE - tailings discharge housing

1шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex., nut and L.W.

5шт.

17

F18906

BRACKET - R.H. support

2шт.

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- 3/8" x 3/4" N.F. hex., nut and L.W.

8шт.

18

F9114

ANGLE - floor support, center

1шт.

19

F4069

REST - back, seat

1шт.

11-624

BOLT

- 3/8" x 1-1/2" rhd. sq. nk., nut and L.W.

8шт.

20

F8720

POST - seat (1-L.H. and 2-center)

3шт.

21

F12024

POST - seat, R.H. (Replaces F8721 when stocks are exh.)

1шт.

F8721

POST - seat, R.H. (Replaced by F12024 when stocks are exh.)

1шт.

114-218

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5, Full Thd

- 3/8" x 7/8" N.F. hex., nut and L.W.

4шт.
