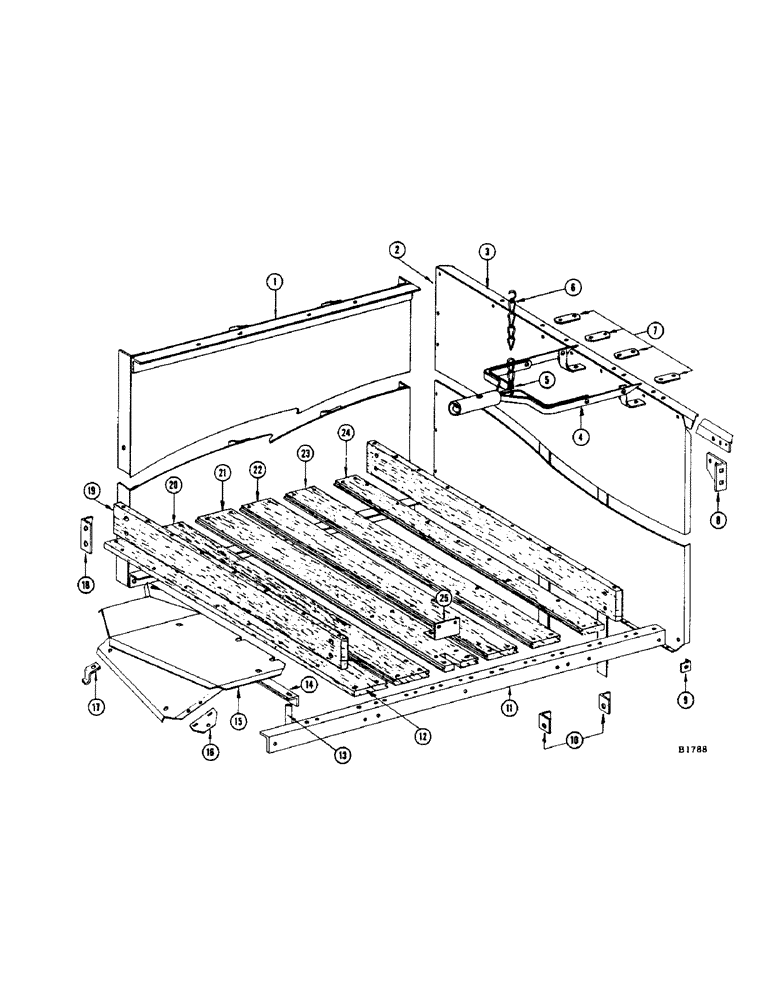

Запчасти Case IH 960 (170) - BAGGING PLATFORM (80) - CROP STORAGE/UNLOADING

1

F82645

SHIELD - front, bag

1шт.

2

F82646

SHIELD - R.H., bag

1шт.

3

F18873

ANGLE - top, R.H. bag shield

1шт.

4

F77318

HOLDER - bag

2шт.

5

O5481HT

HOOK - chain

2шт.

6

O5696HT1

CHAIN

1шт.

7

F18926

SCREW

CLIP - bag holder

4шт.

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- 1/4" x 3/4" N.F. hex., nut and L.W.

7шт.

114-7

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

Nut and L.W. Hex, 1/4"-28 x 7/8", G5, Full Thd

1шт.

8

F18907

BRACKET - upper angle, R.H. bag shield

1шт.

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- 3/8" x 3/4" N.F. hex., nut and L.W.

2шт.

9

F18910

SCREW

CLIP - R.H. bag shield

1шт.

10

F18911

SCREW

BRACKET - R.H. bag shield

2шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

11

F18861

ANGLE - floor support, rear

1шт.

12

F4088

BOARD - floor, L.H. end (Replaces F4049 when stocks are exhausted)

1шт.

F4049

BOARD - floor, L.H. end (Replaced by F4088 when stocks are exhausted)

1шт.

13

F18925

SCREW

SPACER - platform extension

1шт.

111-226

BOLT - 5/16" x 5-1/2" rhd. sq. nk., nut and L.W. Short NK, 5/16"-18 x 5 1/2", G2

1шт.

14

F18924

SCREW

SUPPORT - platform extension

1шт.

114-204

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

Hex, 3/8-24 x 1 3/4", G5, Nut and L.W.

1шт.

15

F82659

EXTENSION - platform

1шт.

16

F18930

BRACKET - rear, platform extension

1шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

114-209

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- 3/8" x 3/4" N.F. hex., nut and L.W.

1шт.

17

F18927

CLIP - L.H. platform extension

2шт.

18

F12192

CLIP - corner, grain board (Replaces F8737 when stocks are exhausted)

4шт.

F8737

CLIP - corner, grain board (Replaced by F12192 when stocks are exhausted)

4шт.

114-107

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.F. hex., nut and L.W.

4шт.

111-221

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 1 1/2", G2

8шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

19

F4094

BOARD - side, platform (Replaces F4055 when stocks are exhausted)

2шт.

F4055

BOARD - side, platform (Replaced by F4094 when stocks are exhausted)

2шт.

195-102

WASHER,1/4"

- flat 1/4"

3шт.

20

F4089

BOARD - floor, #2 from L.H. end (Replaces F4050 when stocks are exhausted)

1шт.

F4050

BOARD - floor, #2 from L.H. end (Replaced by F4089 when stocks are exhausted)

1шт.

21

F4090

BOARD - floor, #3 from L.H. end (Replaces F4051 when stocks are exhausted)

1шт.

F4051

BOARD - floor, #3 from L.H. end (Replaces by F4090 when stocks are exhausted)

1шт.

22

F4091

BOARD - floor, #4 from L.H. end (Replaces F4052 when stocks are exhausted)

1шт.

F4052

BOARD - floor, #4 from L.H. end (Replaced by F4091 when stocks are exhausted)

1шт.

23

F4092

BOARD - floor, center (Replaces F4053 when stocks are exhausted)

4шт.

F4053

BOARD - floor, center (Replaced by F4092 when stocks are exhausted)

4шт.

24

F4065

BOARD - floor, R.H. end

1шт.

11-424

BOLT (MACHINE)

BOLT - 1/4" x 1-1/2" rhd. sq. nk., nut and L.W.

15шт.

73-424

BOLT (MACHINE)

SCREW - 1/4" x 1-1/2" N.C. mach., nut and L.W.

16шт.

25

F18932

CLOSURE - chain

1шт.

111-109

BOLT - 1/4" x 1-1/4" rhd. sq. nk., nut and L.W. Short NK, 1/4"-20 x 1 1/4", G2

2шт.

195-102

WASHER,1/4"

- flat 1/4"

2шт.
