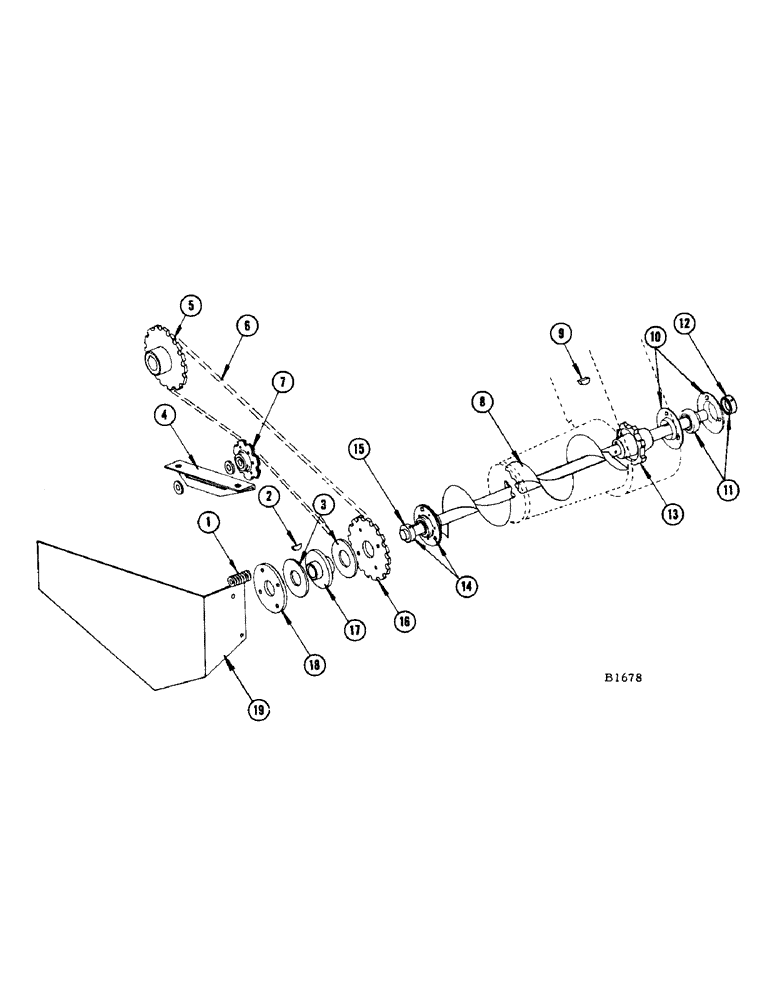

Запчасти Case IH 960 (168) - GRAIN AUGER AND DRIVE, BAGGER COMBINE (80) - CROP STORAGE/UNLOADING

1

F60482

SPRING

- slip clutch

4шт.

2

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

3

F82060

SET

FACING - clutch (Set of 2)

1шт.

4

F16966

BRACKET - idler, grain auger

1шт.

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - 3/8" x 7/8" N.F. hex., nut and L.W.

2шт.

5

F80863

SPROCKET - (18T) Drive

1шт.

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

6

F20964

X

CHAIN - elevator drive (NSS - see chain page)

1шт.

7

F8659

SPROCKET - (11T) Idler

1шт.

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

and nut Hex, 5/8"-18 x 2 1/4", G5

1шт.

95-10

WASHER,5/8"

- flat 5/8"

2шт.

8

F81611

AUGER - grain

1шт.

132-93

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

9

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

10

B18282

FLANGE

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

3шт.

11

F94134

HOUSING ASSY.

BEARING - R.H. end auger shaft

1шт.

12

F52076

COLLAR

1шт.

13

51B

SPROCKET ASSY.

SPROCKET - (7T) elevator drive

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

14

F78749

COLLAR

BEARING - L.H. end auger shaft

1шт.

15

F52076

COLLAR

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

2шт.

16

F20965

SPROCKET - (16T) Slip clutch

1шт.

17

F1418

HUB - slip clutch

1шт.

18

F16421

PLATE - pressure

1шт.

14-548

SCREW,Hex, 5/16" - 24 x 3", Gr 5

BOLT - 5/16" x 3" N.F. hex., and fl. wshr.

4шт.

19

F17137

SHIELD - clutch

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

4шт.
