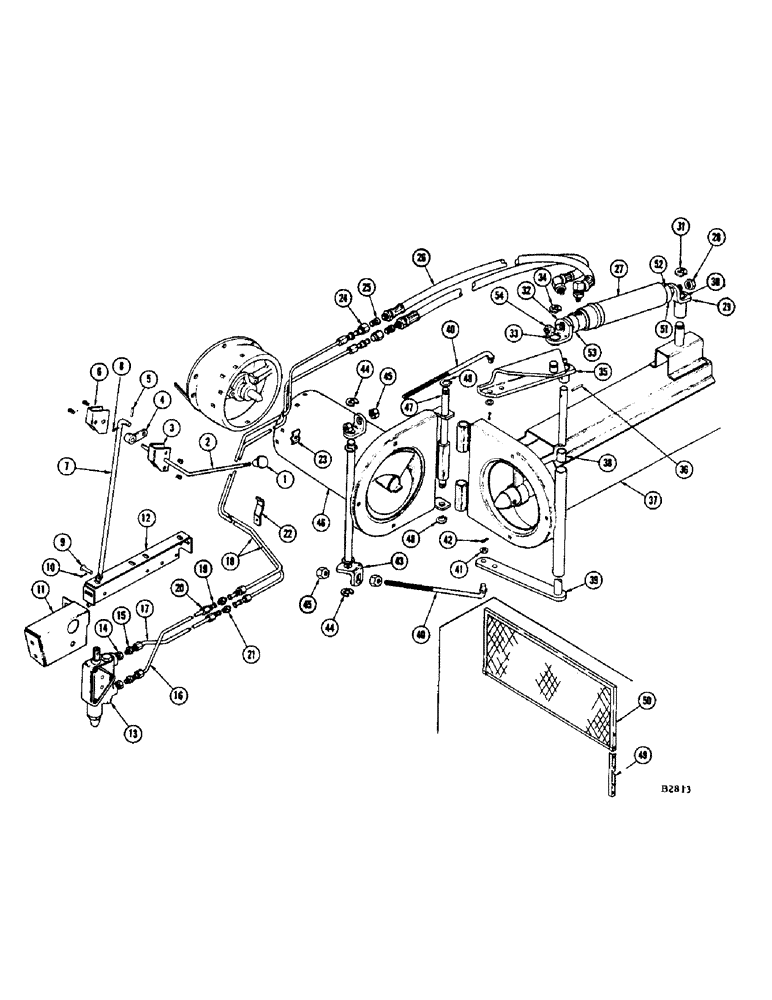

Запчасти Case IH 960 (153A) - GRAIN BIN DISCHARGE AUGER HYDRUALIC (80) - CROP STORAGE/UNLOADING

1

F5301

KNOB

1шт.

2

F22976

LEVER - hyd. auger close

1шт.

3

F22975

PLOW BOLT

BRACKET - L.H. auger close control

1шт.

4

F91843

CONTROL - lever arm

1шт.

5

135-54

ROLL PIN

DRIVE PIN

1шт.

6

F22974

BOLT

BRACKET - R.H. auger close control

1шт.

7

F20793

ROD - hyd. discharge auger close valve

1шт.

8

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

9

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

10

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

11

F22966

BOLT

BRACKET - R.H. hyd. valve mounting

1шт.

12

F22965

BOLT

BRACKET - R.H. rear hyd. valve mounting

1шт.

13

F94386

VALVE - control

1шт.

14

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- 3/8" x 1/4"

2шт.

15

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

FITTING - Parker #4 x 4 FTX-S

2шт.

16

F22967

BOLT

LINE - hyd. (Includes ref. 19 and 20)

1шт.

17

F22967

BOLT

LINE - hyd. (Includes ref. 19 and 20)

1шт.

18

F22969

BOLT

LINE - hyd. (Grain)

2шт.

18

F22971

BOLT

LINE - hyd. (Special)

2шт.

19

218-361

SLEEVE,37 Degree, 1/4" Tube

- Parker #4 TX-S

2шт.

20

218-341

TUBE NUT,37 Degree, 7/16"-20, Type B

NUT - Parker #4 BTX-S

2шт.

21

218-732

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

- 1/4" Parker - #4 HTX-S

2шт.

22

F22970

BOLT

CLIP - hyd. line

1шт.

23

F12067

CLIP - hyd. line

1шт.

24

218-343

TUBE NUT,37 Degree, 9/16"-18, Type B

NUT - Parker #6BTX-S

2шт.

25

218-790

REDUCER,37 Degree, 3/8" x 1/4" Tube

- Parker #6-4TRTX-S

2шт.

26

F12430

HOSE - hyd.

2шт.

27

F87848

CYLINDER

1шт.

28

129-167

JAM NUT,Jam, 5/8"-18, G5

- 5/8" - 18 U.N.F.N.

2шт.

29

F94442

BRACKET - swivel assy.

1шт.

30

E169S

X

BUSHING

1шт.

31

A27812

CIRCLIP,#87, .668" Dia, E-Type

Ring, Retaining, #87, .668" Dia, E-Type

1шт.

32

F94402

BRACKET - swivel assy.

1шт.

33

F22994

BUSHING

1шт.

34

A27812

CIRCLIP,#87, .668" Dia, E-Type

Ring, Retaining, #87, .668" Dia, E-Type

1шт.

35

F94399

CONTROL - link weld assy. (Top)

1шт.

36

135-55

GROOVED PIN,3/16" x 1 1/4", Type A

PIN - lock drive 3/16" x 1-1/4"

1шт.

37

F94436

TUBE - discharge auger (Grain combine)

1шт.

37

F94443

TUBE - discharge auger (Special combine) 20.12" L

1шт.

38

T10814

BUSHING

2шт.

39

F94397

CONTROL - link lower assy.

1шт.

40

F94400

ROD - discharge clamp

2шт.

41

195-33

WASHER,1/2"

- flat 1/2"

2шт.

42

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

43

F22984

BRACKET - swivel plate pivot

2шт.

44

A27812

CIRCLIP,#87, .668" Dia, E-Type

Ring, Retaining, #87, .668" Dia, E-Type

4шт.

45

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

46

F94423

TUBE - middle auger (Grain combine)

1шт.

46

F94440

TUBE - grain bin auger (Special combine)

1шт.

47

F22985

PIN - hinge

1шт.

48

A33531

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

2шт.

49

F41871

BRACE - hyd. discharge auger shield (W./O. cab)

1шт.

50

F89231

SHIELD - hyd. discharge auger (W./O. cab)

1шт.

51

F23075

SPACER

1шт.

52

178-817

SCREW - set 1/4" 20 UNC x 1/2"

1шт.

53

F23032

SPACER

1шт.

54

131-36

LOCK NUT,5/8"-18

NUT - 5/8" - 18 ESNA jam

1шт.
