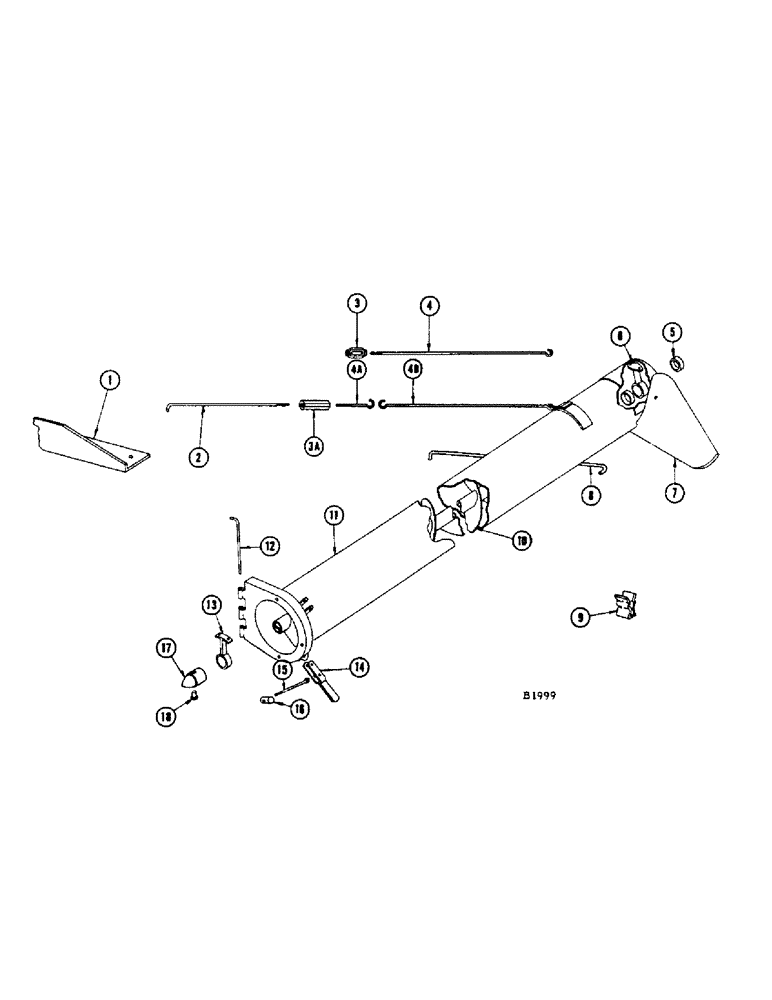

Запчасти Case IH 960 (152) - GRAIN BIN DISCHARGE AUGER (80) - CROP STORAGE/UNLOADING

1

F20465

SUPPORT - discharge tube (Special combine)

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

2

F21240

ROD - auger brace (Grain combine)

1шт.

F20259

ROD - auger brace (Special combine)

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

3

F1461

TURNBUCKLE

- auger brace (Before #8311400)

1шт.

3a

F22267

TURNBUCKLE

- auger brace (#8311400 and after)

1шт.

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. jam

1шт.

4

F17087

ROD - auger brace (Replaced by F22396 and F22397)

1шт.

4a

F22396

HOOK - discharge auger brace (Replaces F17087 when exh.)

1шт.

4b

F22397

BRACE - auger (Replaces F17087 when exh.)

1шт.

5

F11361

COLLAR - ager

2шт.

132-304

PIN - cotter 1/4" x 3-1/8"

2шт.

6

F1378

HANGER - upper end

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex., nut and L.W.

2шт.

195-21

WASHER,5/16"

- flat 5/16"

1шт.

7

F21883

SPOUT - auger (Grain combine)

1шт.

F11362

SPOUT - auger (Special combine)

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

8

F21541

ROD - transport support (Grain combine)

1шт.

F21542

ROD - transport support (Special combine)

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

195-37

WASHER,9/16"

- flat 9/16"

1шт.

TB10698

COTTER - hair pin

2шт.

9

F21245

CLIP - support rod

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex., nut and L.W.

1шт.

10

F84558

AUGER - discharge (Grain combine) (Before #8358001)

1шт.

F94249

AUGER - discharge (Grain combine) #8358001 and after

1шт.

F83335

AUGER - discharge (Special combine) (Before #8358001)

1шт.

F94247

AUGER - discharge (Spec. combine) #8358001 and after

1шт.

11

F84557

TUBE - discharge auger (Grain combine) Before #8358001

1шт.

F94280

TUBE - manual folding discharge auger #8358001 and after

1шт.

F84560

TUBE - manual folding discharge auger (Special combine)

1шт.

12

F6685

PIN - hinge

1шт.

13

F94434

HANGER - lower end (Grain combine) Replaces F83243 when stocks are exhausted

1шт.

F83243

HANGER - lower end (Grain combine) Replaced by F94434 when stocks are exhausted

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

2шт.

14

F83241

HANDLE - auger tube latch

2шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rhd. sq. nk.

4шт.

131-506

NUT,1/4-20

NUT - 1/4" Flex Loc

4шт.

15

F10843

ROD - latch handle

2шт.

114-216

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- 3/8" x 2" N.F. hex.

2шт.

129-123

NUT,3/8"-24, G5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

F11525

BLOCK - latch handle rod

2шт.

129-123

NUT,3/8"-24, G5

2шт.

17

F22752

PLOW BOLT

PIN - auger drive

1шт.

18

138-208

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, 1/2" x 2 1/2", Slotted

1шт.
