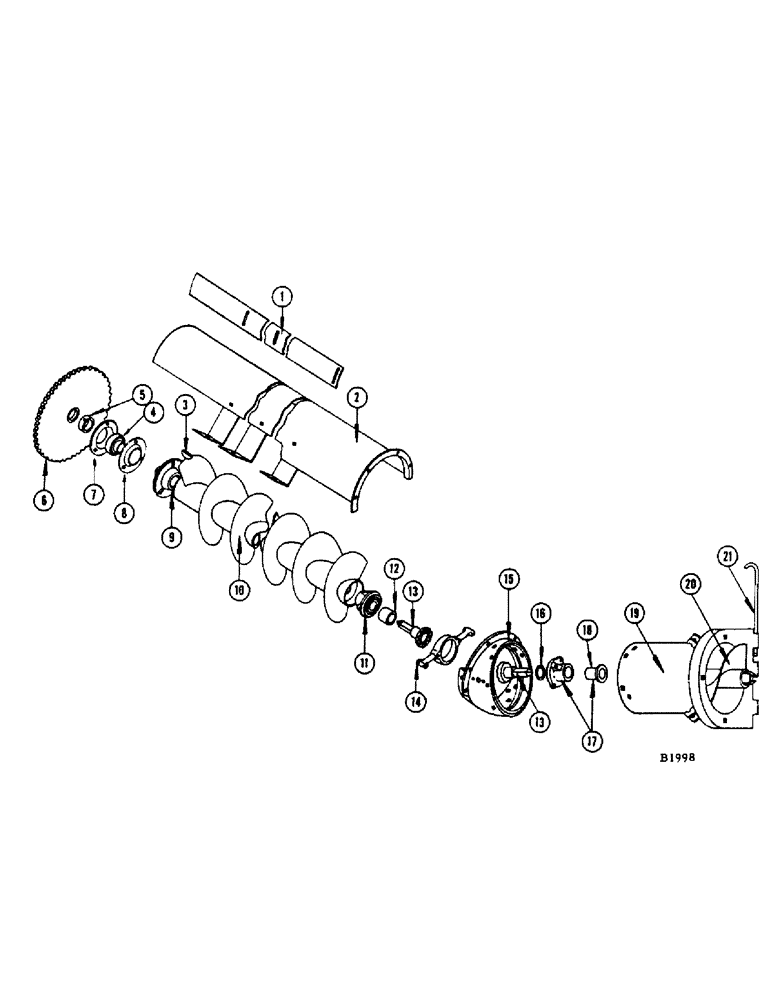

Запчасти Case IH 960 (148) - GRAIN BIN AUGER - GRAIN COMBINE (80) - CROP STORAGE/UNLOADING

1

F20116

COVER - slot

2шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (11-412) Nut (25-104)

6шт.

WASHER - 1/4" flat (195-18) L.W. (92-4)

6шт.

2

F83209

COVER - auger

1шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (11-510) Nut (25-115)

6шт.

3

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 6 sprocket to auger #A, 1/4" x 7/8", HT

1шт.

4

1443CKA

BALL BEARING

BEARING - auger, R.H. end

1шт.

5

F62234

COLLAR

1шт.

6

F83214

SPROCKET - (48T) Grain bin auger drive, driven

1шт.

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

7

F19270

FLANGE

- outer half

1шт.

8

F62225

FLANGE

- inner half

1шт.

9

F20193

SHIELD - dust, bearing

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) Nut (25-106)

3шт.

10

F83207

AUGER - grain bin

1шт.

11

F88209

CAP - bearing, gear box inner

1шт.

13

F1491

GEAR

- (13T) bevel, discharge auger drive

2шт.

14

F1642

GEAR BOX - grain bin

1шт.

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease 1/8" 67-1/2 degrees

1шт.

BOLT - 5/16" x 1" N.C. hex. (13-516) L.W. (92-5)

4шт.

15

F1641

ELBOW - discharge, middle tube

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) Nut (25-105)

12шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) Nut (25-106)

8шт.

16

F17801

WASHER - thrust, gear box

1шт.

17

F82642

CAP - bearing, gear box outer

1шт.

18

F17054

FLANGED BEARING

BUSHING

1шт.

19

F83212

TUBE - middle auger hinge

1шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (11-510) Nut (25-105)

3шт.

WASHER - 5/16" flat (195-21) L.W. (92-5)

3шт.

20

F83236

AUGER - middle (Before #8358001)

1шт.

F94248

AUGER - middle (#8358001 and after)

1шт.

21

F6685

PIN - hinge

1шт.
