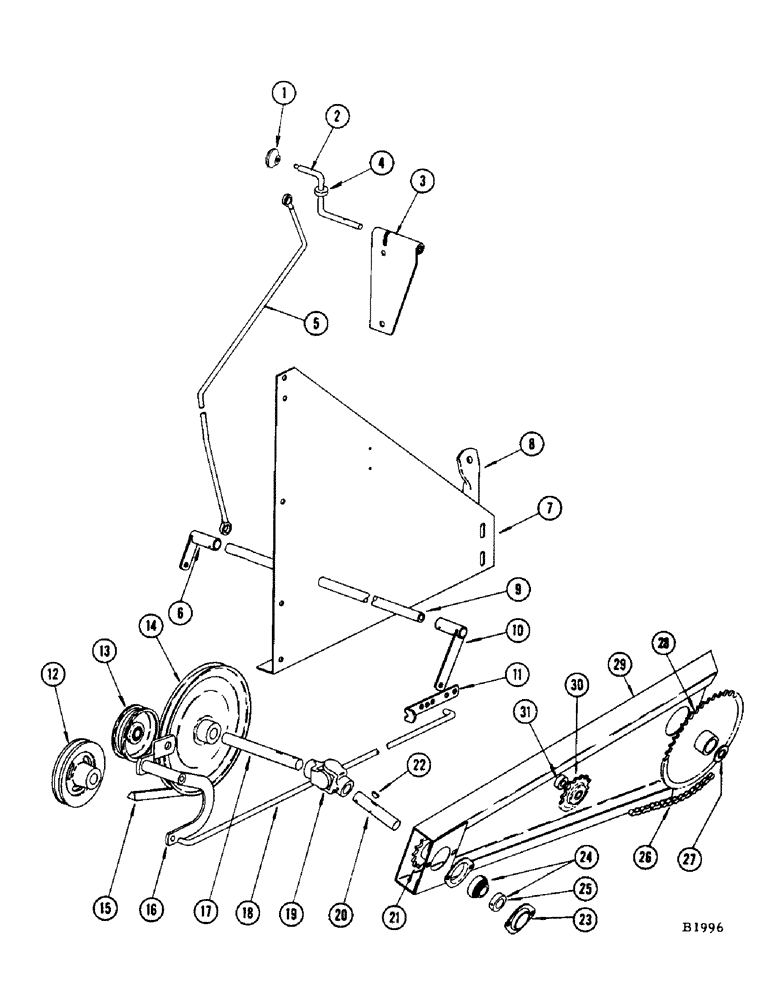

Запчасти Case IH 960 (146) - GRAIN BIN DISCHARGE AUGER DRIVE & THROWOUT - 960 SPECIAL (80) - CROP STORAGE/UNLOADING

1

A26727

BALL

KNOB - unloading control lever

1шт.

2

F21344

LEVER - unloading

1шт.

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, 3/16" x 5/8", Slotted

1шт.

3

F21343

BRACKET - control lever

1шт.

4

F10117

COLLAR - lever

1шт.

14-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

1шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

5

F21345

ROD - throwout control

1шт.

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.F. hex.

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

6

F81729

ARM - throwout, L.H.

1шт.

7

F21537

GUSSET - rear, L.H.

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 3/8"-24 x 3/4", G5, Full Thd

5шт.

8

F20078

SUPPORT - auger trough

1шт.

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- 3/8" x 2" N.F. hex., nut and L.W.

2шт.

9

F17063

SCREW

PIPE - pivot

1шт.

10

F83288

ARM - throwout, R.H.

1шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

2шт.

11

F18372

LINK - adjusting, throwout

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

25-155

JAM NUT,Jam, 5/16"-24, G5

- 5/16" N.F. hex. jam

2шт.

12

F1640

SHEAVE - primary drive jackshaft

1шт.

126-13

WOODRUFF KEY,#61, 3/16" x 5/8"

1шт.

13

F22688

PLOW BOLT

IDLER - (Replaces F52873 when exh.)

1шт.

F52873

PULLEY

IDLER - (Replaced by F22688 when stocks are exh.)

1шт.

14

F81385

SHEAVE - secondary drive jackshaft, driven (Before #8311400)

1шт.

F84942

SHEAVE - secondary drive jackshaft driven (#8311400 and after)

1шт.

15

O2578FH

X,0.66" W 57.99" L

BELT 0.66" W x 57.99" L, Grain bin secondary jackshaft drive (Before #8311400), Replaced by F22765 when stock exh.

1шт.

F22765

BELT

- grain bin secondary jackshaft drive (Before #8311400) Replaces O2578FH when stock exh.

1шт.

F19581

BELT

"V" BELT - grain bin secondary drive jackshaft (#8311400 and after) (Exh. then use F23261)

1шт.

F23261

V-BELT,54.00" L

Grain Bin, Secondary Drive Jackshaft, Serial No. 8311400 and After, Replaces F19581 When Exhausted 54.00" L

1шт.

16

F83222

ARM - idler, grain bin throwout (Before #8311400)

1шт.

F84939

ARM - idler, grain bin throwout (#8311400 and after)

1шт.

17

F20217

JACKSHAFT - grain bin secondary drive

1шт.

18

F20215

ROD - lower control, grain unloader

1шт.

19

F83290

UNIVERSAL JOINT

1шт.

135-360

PULLEY

PIN - groove

2шт.

20

F20218

EXTENSION - jackshaft

1шт.

21

F83289

SPROCKET - grain bin auger drive (16T)

1шт.

22

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

1шт.

23

F9417

FLANGE

4шт.

24

F90306

BEARING ASSY

BEARING - for ref 17 and 20

2шт.

25

O4233CS

COLLAR

1шт.

26

F20220

CHAIN - grain bin drive (NSS - see chain page)

1шт.

27

A26376

WASHER

- grain bin auger shaft

1шт.

28

F83318

SPROCKET - grain bin auger drive (45T)

1шт.

29

F83287

BRACKET - bearing and chain guard (Replaced by F22096 and F22097 when stocks are exhausted)

1шт.

F22096

BRACKET - bearing support (Replaces F83287 when stocks are exhausted)

1шт.

F22097

BRACKET - bearing mounting (Replaces F83287 when stocks are exhausted)

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut, L.W. and fl. wshr. Short NK, 5/16"-18 x 3/4", G2

4шт.

30

F78573

SPROCKET ASSY.

SPROCKET - idler (17T)

1шт.

31

O4754AB

SPACER - idler sprocket

1шт.
