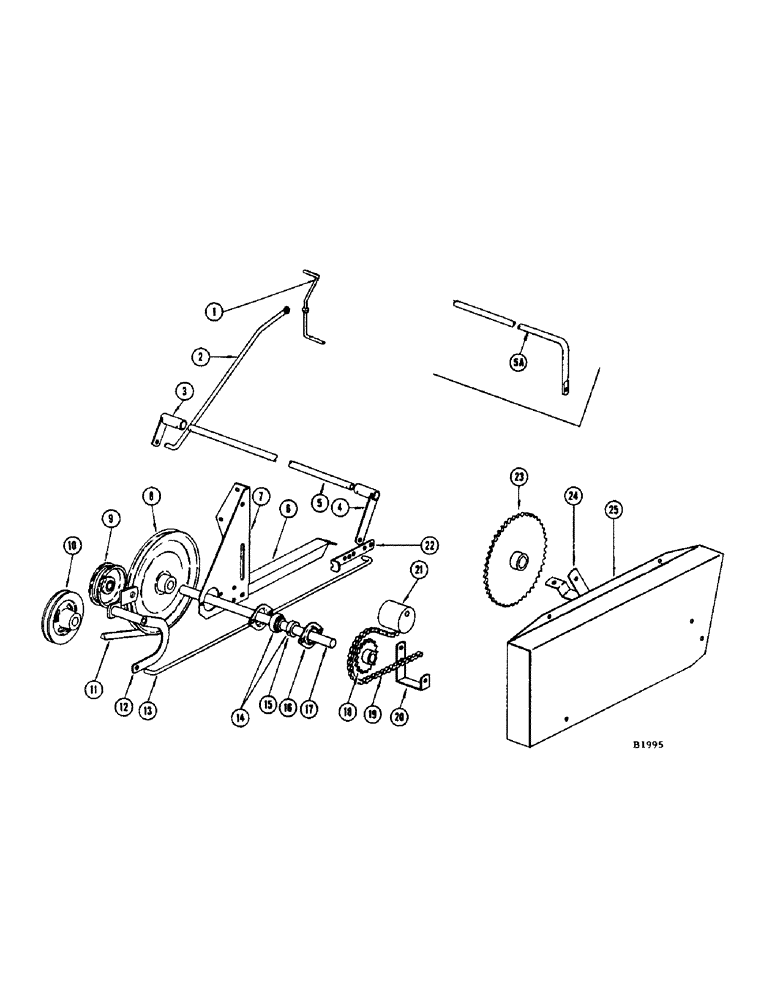

Запчасти Case IH 960 (144) - GRAIN BIN DISCHARGE AUGER DRIVE & THROWOUT, GRAIN COMBINE (80) - CROP STORAGE/UNLOADING

1

F84351

LEVER - unloading

1шт.

BOLT - 1/4" x 1" N.F. hex. (14-416) Jam nut (25-154)

1шт.

2

F17068

SCREW

ROD - upper control

1шт.

3

F81729

ARM - hub, L.H. throwout linkage

1шт.

PIN - cotter, 3/16" x 1-1/2" (132-95)

1шт.

4

F81381

ARM - hub, R.H. throwout linkage (Before #8311400)

1шт.

PIN - cotter 3/16" x 1-1/2" (132-95)

1шт.

5

F17063

SCREW

PIPE - pivot, grain bin unloading (Before #8311400)

1шт.

5a

F91845

PIPE - pivot (#8311400 and after)

1шт.

6

F20118

BRACE - for ref. 7 bracket

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) Nut (25-106)

2шт.

7

F20117

BRACKET - bearing, jackshaft (Also for chain adjustment)

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) Nut (25-116)

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) Nut (25-116) and L.W. (92-6)

1шт.

8

F81385

SHEAVE - secondary jackshaft, drive (Before #8311400)

1шт.

F84942

SHEAVE - secondary jackshaft drive (#8311400 and after)

1шт.

KEY - "A" Woodruff (126-121)

1шт.

SCREW - 3/8" x 7/8" N.C. sq. hd. cup pt. set (85-614) and jam nut (25-146)

1шт.

9

F22688

PLOW BOLT

IDLER - (Replaces F52873 when stocks are exh.)

1шт.

F52873

PULLEY

IDLER - secondary jackshaft drive belt (Replaced by F22688 when stocks are exh.)

1шт.

10

F1640

SHEAVE - primary drive jackshaft (Before #8311400)

1шт.

F1710

SHEAVE - primary drive jackshaft (#8311400 and after)

1шт.

11

O2578FH

X,0.66" W 57.99" L

BELT 0.66" W x 57.99" L, V, Grain bin secondary jackshaft drive (Before #8311400)

1шт.

F19581

BELT

"V" BELT - grain bin, secondary drive jackshaft (#8311400 and after) (Exh. then use F23261)

1шт.

F23261

V-BELT,54.00" L

Grain Bin, Secondary Drive Jackshaft, Serial No. 8311400 and After, Replaces F19581 When Exhausted 54.00" L

1шт.

12

F83222

ARM - idler, grain bin throwout (Before #8311400)

1шт.

F84939

ARM - idler, grain bin throwout (#8311400 and after)

1шт.

13

F20145

ROD - lower control, grain bin unloader

1шт.

PIN - cotter 1/8" x 3/4" (132-46)

2шт.

14

F90306

BEARING ASSY

BEARING

2шт.

15

O4233CS

COLLAR

2шт.

16

F9417

FLANGE

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) Nut (25-105)

2шт.

17

F20141

JACKSHAFT - grain bin secondary drive

1шт.

18

F83225

SPROCKET - (17T) drives grain bin auger

1шт.

KEY - "A" Woodruff (126-121)

1шт.

PIN - cotter 3/16" x 2" (132-99)

1шт.

19

F20142

X

CHAIN - grain bin auger drive (NSS - see chain page)

1шт.

20

F20143

BRACKET - rear, chain shield

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) Nut (25-114) L.W.

2шт.

21

305-1/2CH

BLOCK - (Wood) Idler

1шт.

BOLT - 5/8" x 3-1/2" rhd. sq. nk. (11-1056) Nut (25-1010)

1шт.

WASHER - 5/8" flat (195-41) L.W. (92-10)

1шт.

22

F18372

LINK - adjusting, grain bin auger drive throwout

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) and dbl. jam nut (25-155)

1шт.

23

F83214

SPROCKET - (48T) Grain bin auger drive, driven

1шт.

KEY - "A" Woodruff (126-121)

1шт.

PIN - cotter 3/16" x 2-1/2" (132-102)

1шт.

24

F20108

BRACKET - front, chain shield

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) Nut (25-114) L.W.

2шт.

25

F20144

SHIELD - grain bin auger drive chain

1шт.

BOLT - 1/4" x 1/2" (14-48) Nut (25-114) L.W. (92-4)

5шт.
