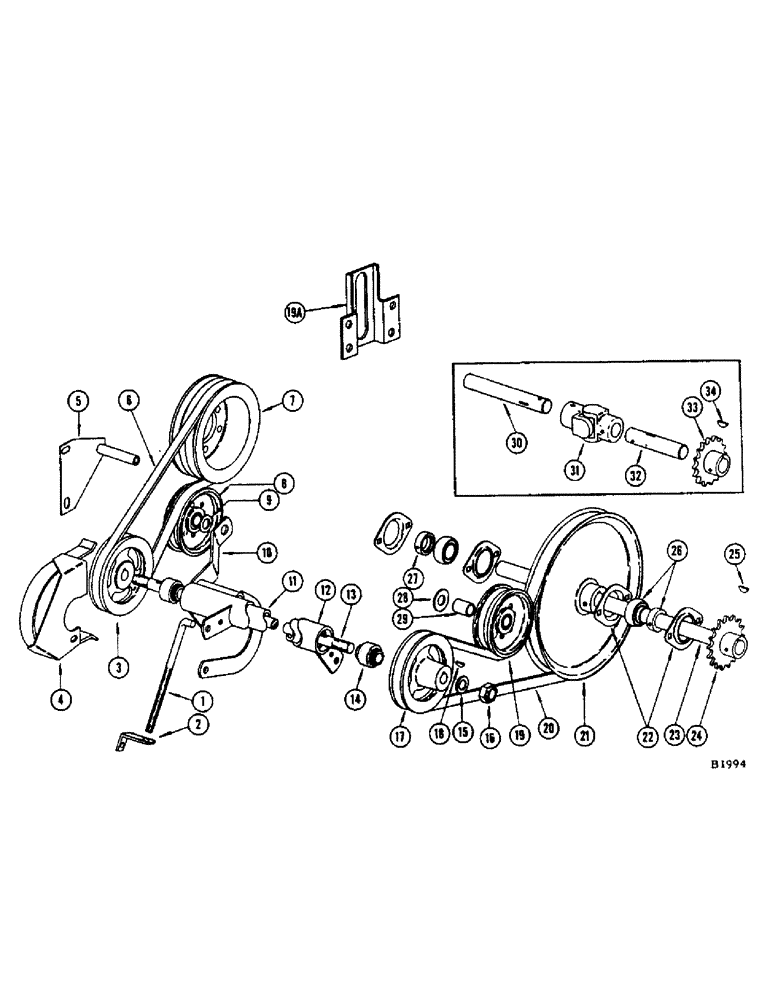

Запчасти Case IH 960 (142) - GRAIN BIN PRIMARY DRIVE JACKSHAFT (80) - CROP STORAGE/UNLOADING

1

F20139

ROD - tension, jackshaft drive belts (Before #8311400)

1шт.

F22266

ROD - tension, jackshaft drive belt (#8311400 and after)

1шт.

2

F20080

CLIP - anchor, ref. 1 rod

1шт.

3

F1640

SHEAVE - drives primary jackshaft, driven (Before #8311400)

1шт.

126-13

WOODRUFF KEY,#61, 3/16" x 5/8"

1шт.

F1710

SHEAVE - drives primary jackshaft (#8311400 and after)

1шт.

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

1шт.

4

F83336

GUARD - belt (Before #8311400)

1шт.

5

F83218

RETAINER - upper (Before #8311400)

1шт.

6

F22013

BELT

Primary Jackshaft Drive, Replaces F20135 When Stocks are Exhausted

1шт.

F20135

X

"V" BELT - primary jackshaft drive (Replaced by F22013)

1шт.

7

F1643

SHEAVE - drives jackshaft and hydraulic pump (Bolts to engine fan pulley) Before #8334601 and #8358001 and after)

1шт.

F1721

SHEAVE - drives jackshaft and hydraulic pump (Bolts to engine fan pulley) #8334601 thru #8358000

1шт.

BOLT - 5/16" x 3-1/2" N.C. hex. (13-556) L.W. (92-5)

4шт.

8

F22688

PLOW BOLT

IDLER - belt (Replaces F52873 when stocks are exh.)

1шт.

F52873

PULLEY

IDLER - belt (Replaced by F22688 when stocks are exh.)

1шт.

9

A26411

WASHER

- idler

1шт.

10

F83222

ARM - idler (Before #8311400)

1шт.

F84939

ARM - idler (#8311400 and after)

1шт.

11

F20132

SPACER - jackshaft

1шт.

12

F83221

TUBE - jackshaft

1шт.

13

F20131

JACKSHAFT - primary drive

1шт.

14

T20623

BEARING ASSY,0.64" ID x 1.5748" OD x 0.72"

BEARING - primary drive jackshaft

2шт.

15

A26411

WASHER

- primary jackshaft

2шт.

16

131-13

LOCK NUT,5/8"-18, GB

NUT - 5/8" N.F. ESNA stop, jackshaft

2шт.

17

F1640

SHEAVE - drives secondary jackshaft, driven, grain bin secondary drive jackshaft

1шт.

18

126-13

WOODRUFF KEY,#61, 3/16" x 5/8"

Grain bin secondary drive jackshaft #61, 3/16" x 5/8"

1шт.

19

F22688

PLOW BOLT

IDLER - belt (Replaces F52873 when stocks are exh.), grain bin secondary drive jackshaft

1шт.

F52873

PULLEY

IDLER - belt (Replaced by F22688 when stocks are exh.), grain bin secondary drive jackshaft

1шт.

195-2514

SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole

- between ref. 19 and 19A, grain bin secondary drive jackshaft

2шт.

11-1036

BOLT (MACHINE)

BOLT - 5/8" x 2-1/4" rhd. sq. nk., (92-10) L.W., (25-141) Jam nut, grain bin secondary drive jackshaft

1шт.

19a

F22263

BRACKET - idler (#8311400 and after), grain bin secondary drive jackshaft

1шт.

20

O2578FH

X,0.66" W 57.99" L

BELT 0.66" W x 57.99" L, V, Secondary jackshaft drive (Before #8311400), Grain bin

1шт.

F19581

BELT

"V" BELT - secondary drive jackshaft (#8311400 and after) (exh. then use F23261), grain bin

1шт.

F23261

V-BELT,54.00" L

Bin Unloader Secondary Drive, Serial No. 8311400 and After, Replaces F19581 When Exhausted, Grain Bin Secondary Drive Jackshaft 54.00" L

1шт.

21

F81385

SHEAVE - jackshaft drive, driven (Before #8311400), grain bin secondary drive jackshaft

1шт.

F84942

SHEAVE - jackshaft drive, driven (#8311400 and after), grain bin secondary drive jackshaft

1шт.

22

F9417

FLANGE

grain bin secondary drive jackshaft

4шт.

23

F20141

JACKSHAFT - secondary drive (Grain combines only) See ref. 30, 31 and 33, grain bin secondary drive jackshaft

1шт.

24

F83225

SPROCKET - (17T) drives grain bin discharge auger (Grain combine) See ref. 33, grain bin secondary drive jackshaft

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), , Grain bin secondary drive jackshaft 3/16" x 2"

1шт.

25

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 24, grain bin secondary drive jackshaft #A, 1/4" x 7/8", HT

1шт.

26

F90306

BEARING ASSY

BEARING, grain bin secondary drive jackshaft

2шт.

27

O4233CS

COLLAR

grain bin secondary drive jackshaft

2шт.

28

O5871BD

WASHER - ref. 19 idler, grain bin secondary drive jackshaft

1шт.

29

V13383

SPACER - ref. 19 idler, grain bin secondary drive jackshaft

1шт.

30

F20217

JACKSHAFT - secondary drive (960 special), grain bin secondary drive jackshaft

1шт.

31

F83290

UNIVERSAL JOINT - for secondary drive jackshaft and extension (960 special), grain bin secondary drive jackshaft

1шт.

135-360

PULLEY

PIN - groove 1/4" x 1-3/4", grain bin secondary drive jackshaft

2шт.

32

F20218

EXTENSION - secondary drive jackshaft (960 special), grain bin secondary drive jackshaft

1шт.

33

F83289

SPROCKET - (16T) Grain bin discharge (960 special), grain bin secondary drive jackshaft

1шт.

132-58

COTTER PIN

PIN - cotter 1/8" x 2-1/4", grain bin secondary drive jackshaft

1шт.

34

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 33, grain bin secondary drive jackshaft #A, 1/4" x 7/8", HT

1шт.
